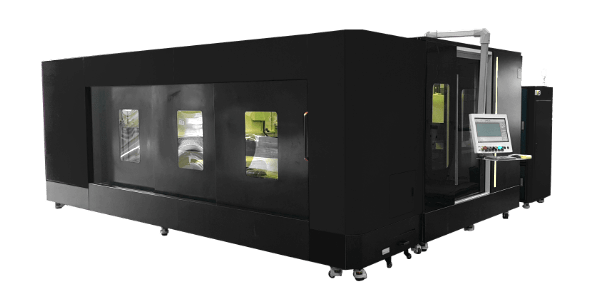

Titan Fibre Lasers are supplied with the following software:
Our range of fibre laser come with fantastic control software but also included is Radprofile by RADAN. Perfectly integrated with the Titan Fibre Laser.
Features at a glance
- Drag & drop data input
- Batch processing of DXF/DWG
- Smart order lead-ins to maximise safety and reduce run times
- Automatic hazard avoidance maintaining head safety
- Intelligent tagging of components and scrap
- Bridge cutting – reduced costs/times
- Automatic common line cutting
- Auto remnants, sheet scrapping and off-cuts
- Project nesting

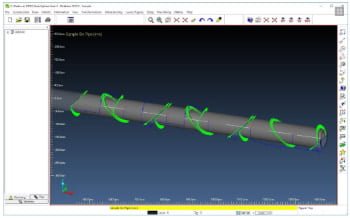

- Graphical program verification
- Quick estimates for parts or nests
- Simple intuitive interface
- Reduced lead times and increased production flexibility
Radprofile seamlessly integrates the whole programming process of geometry creation, nesting, cut path profiling, sequencing, code generation and finally DNC connectivity to the machine controller. The seamless integration delivered by Radprofile provides an easier to use experience for your operators, whilst accuracy and consistency of programming is maintained with the collation of process critical data in the Manufacturing Database (MDB). Material, lead-ins, lead-outs, tagging, and machine tool specific cutting technology data are stored in the MDB in readiness for instantaneous distribution when required to assist an operator or automated process. Understanding the sophistication and the limits of each machine tool individually is the key to driving it efficiently; Radprofile will assist your operators to optimise your manufacturing capacity to within those limits for all of your machines.
Optimising the tool path, cutting technologies and cutting sequence for a profiling machine is paramount to the efficient programming of the machine and thus the reduction of the cost to manufacture a part. As profiling machines, particularly laser profiling machines become faster and more sophisticated the integrity of the part in the nest sheet and the safety of the machine head become even more paramount. Radprofile intelligently applies the profile tool paths automatically at the nesting stage to maintain the quality and integrity of your parts, whilst also optimising the cutting sequence and ensuring cutting head safety, thus enabling the machine tool to perform to its optimum potential. Radprofile supports automatic common line cutting which enables the downstream nesting process to fully optimise material utilisation, whilst also benefiting from reduced cutting times and assist gas costs. Parts identified for common cutting can be controlled to cut in clusters to maintain sheet rigidity and remove tolerance problems associated with common cutting in large quantities.
Power & Control
The power of automation with the ability to control by your preferences.
The Radprofile programming solution provides your operators with easy to use software that can be educated to adopt your preferred practices and processes. Lead-in and Lead-out preferences, tagging, preferred profiling sequences all these and more can be defined relative to material type, thickness and machine tool in the Manufacturing Database.
The MDB expands with your business. The introduction of new customers, new products or new machines brings into your manufacturing environment the need to control new material, strategies and new practices. The MDB ensures consistency of programming for these new criteria for all of your machines, which translates to less rejects, less rework and higher returns.

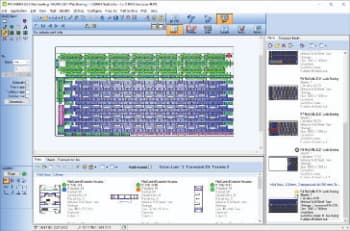

If manual control is your preference this is in abundance with Radprofile enabling an operator to take full control of the programming process at any stage. The ability to interact manually and override any of the automated processes gives a Radprofile user the power to tackle the most difficult jobs with ease and confidence. The fully integrated Project Nester provides your operator with an instantaneous overview of your profiling demand. Automatic rectangular nesting, single part true shape nesting and manual drag and drop nesting techniques enable your operator to quickly, easily and efficiently meet your ever changing production and customer demands.
If material utilisation is critical to your business upgrading the nester to Radnest our true shape nester will raise your material utilisation whilst also providing further advanced nesting tools for your operator.
