TITAN FIBRE LASER CUTTING MACHINE
Meet The Titan Fibre Laser Machine

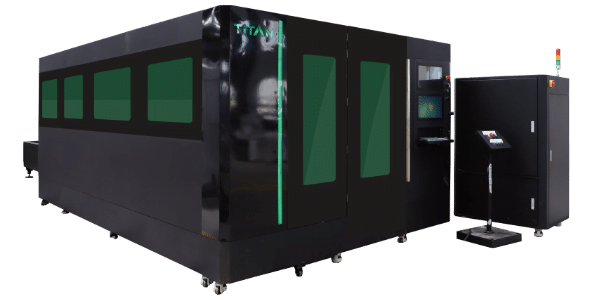

Titan Fibre Laser Cutting Machine
Our Titan Fibre Laser Cutting Machines are fully tested to rigorous standards at our 32,000 square feet facility in Oldbury in the West Midlands.
Sheet metal cutting machines are our speciality and we are experts in fibre laser cutting technology.
All of our Titan Fibre Laser Machines supplied by Mantech come with warranty ranging from 1-5 years, depending upon your business needs. Not only that but we also offer extended warranties and on-site maintenance programs to give you full peace of mind.
Available in: 1500 x 3000 mm | 2000 x 4000 mm | 2000 x 6000 mm | 2000 x 8000 mm
Features & Benefits of Fibre Lasers
Each of our Titan fibre laser machines come with a 3000 x 1500 mm bed as standard (other bed sizes are available) and a choice of laser source options are available.

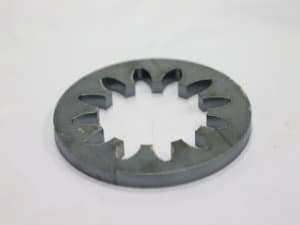

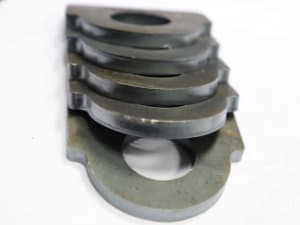

Process carbon steel, stainless steel, brass, aluminium alloy.
What type of industries and markets are Fibre Laser Machines used in?
- Marine engineering
- Mechanical fabrication
- Steel fabricators
- Sign making
- General construction
- Electrical component manufacture
Our Titan Fibre Laser comes with either a 1KW, 1.5KW, 2.2KW, 3.3KW or 4KW laser (IPG & Nlight options available).
Standard equipment and technical features below:
Delivery, training and commissioning is included. Offloading & positioning is available (price upon request).
If you’re looking for a smaller, more compact system our Fibretech Compact Fibre laser is perfect for you.
We also offer tube and profile cutting Fibre Lasers if flat plate is of no requirement.
Need both? why not give us a call to discuss your needs, we also do a Combination Fibre Laser machine that may be suitable for you.
*Promotional package when ordered with one of our Fibretech or Titan fibre lasers
*To find out more about our new metal laser extraction systems, please get in touch with one of our industry experts.
Specification: Titan Fibre Lasers
GAS ASSIST TYPE
1kW/1.5kW/2.2kW, 3.3kW, 4kW (IPG & Nlight also available)
Servo motor & drive system
Y axis dual drive 1.3KW, X axis 850W, Z axis 400W. (YASKAWA – Japan)
Load limit 800KG standard 3 x 1.5 m machine. Custom bed strengthening available upon request.
Gear & Rack
Tongfei – dual temperature control
Cypcut cutting control system
3 Phase AC 380V 50HZ
X 4 nozzles
X 3 protective lenses
X 1 focus lens
X 1 ceramic ring
X 1 filter element
Fibre laser light energy is created by banks of diodes. The light is transferred through special fibre optic cable, an efficient energy transfer compared to conventional methods. The light, upon exiting the fibre cable, is then collimated (straightened) as it approaches the focus lens – which intensifies the beam enabling it to cut through the material with astonishing speed and accuracy.
A. Superb quality of laser beam, constant BPP within all the ranges of laser powers,so that long focus can still achieve an extremely small beam width.
B. electro-optical conversion efficiency of laser supply is 25% more efficient than CO2, therefore electricity consumption is drastically reduced.
C. Laser is transmitted by fiber optic cables, almost no energy loss during transmission to cutting head.
D. Modular design, allows easy assembly and beam alignment is minimal due to fibre optic transfer (No Mirrors). In addition, auto lube traverse systems minimize maintenance procedures.
E. Life span of Laser source is approximately 100,000 hours.
Raytools cutting head with high-performance non-contact capacitive height sensor is used and is designed to withstand high ‘gas assist’ pressures. The proven lens cartridge change system makes switching lenses for different materials or applications fast & simple. A. High cutting speed with the best cutting quality B. Quick change-over between three focal lengths without changing the TCP (Tool Centre Point) C. Protective window (lens) can be replaced as a consumable part, to extend the life of the focusing lens.
The machine body is a monobloc frame structure. The machine’s inertia remains the same for all material thicknesses and sizes to be cut, which gives optimum quality of the laser beam at the cutting head as well as its movement and accuracy. The compactness and robustness of this monobloc structure guarantees an optimum rigidity and stability. The machine frame incorporates collector trays on wheels (situated under
the cutting table) for removal of scrap and small components falling through the table grids
A. Precise positioning & repeatability rack and pinion system (Atlanta, Germany)
B. Square rail (HIWIN, TAIWAN)
C. Fixed on the stable monobloc structure, the transmission system for the X-, Y- and Z-axis guarantee very precise movements of the gantry and laser cutting head.
Closed loop AC servo drive system and servomotors to ensure high dynamics, vibration- free operation and maximum precision
A. Yaskawa servo motors (Japan) Y Axis Dual Drive (3KW Y1/Y2) X Axis (1800W) Z Axis (850W)
B. The servo reducer (Shimpo, Japan) combined with the transmission system (see 4.5) and optimised for the servo motors results in the desired accuracy and motion at the rack and pinion.
A. Power Automation CNC Control with integrated I/O
B. Each PA CNC Systems is equipped with the HMI (Human Machine Interface). With this open, browser based all important control functions are clearly represented to the operator, so it will work within shortest training time efficiently and safely with the CNC system.
C. The CNC Systems are equipped with high-speed processors to accomplish an extremely fast ‘Block Throughput”. Highly accurate contours with very small NC blocks can be processed without any loss of speed. therefore, the machine always reaches the highest productivity.
D. Cypcut laser cutting control system Support AI, DXF, PLT and other graphic data formats
CAD module/ Nesting + processing function.
A. Dual function intelligent cooling system, ensuring the efficient operation of laser cutting head and laser source
B. 5 HP compressor, brands that are highly efficient and reliable
C. Overcurrent/ overload protection High – and low-pressure protection via means of flow switch
D. High and low temperature alarm signals output E. LCD display temperature controller with multiple function setting and error alarming
Titan Fibre Laser Cutters - Software
Our Fibre Laser Cutting Machines in the TITAN range come complete with industry leading software from RADAN.
Radprofile provides your operators with the tools they require to reduce lead times and optimise your laser, plasma, water jet and flame cutting machines. Designed to seamlessly integrate with Radpunch the RADAN punch/profile solution delivers optimisation for punch profile combination machine tools.
Features at a glance
- Drag & drop data input
- Batch processing of DXF/DWG
- Smart order lead-ins to maximise safety and reduce run times
- Automatic hazard avoidance maintaining head safety
- Intelligent tagging of components and scrap
- Bridge cutting – reduced costs/times
- Automatic common line cutting
- Auto remnants, sheet scrapping and off-cuts
- Project nesting
- Graphical program verification
- Quick estimates for parts or nests
- Simple intuitive interface
- Reduced lead times and increased production flexibility
