Fibre Laser Engraving Machines
Our fibre laser engraving machines are perfect for a wide range of tasks and applications in education, manufacturing and customisation. At Mantech we understand the need for exceptionally good after-sales service, In fact, that’s part of our mantra, ‘Affordable Machinery, First Class Service. Choose from our standard, XL, XL MOPA and 3D MOPA range of fibre laser engraving machines.
Full UK Warranty
Delivery Included
Installation Included
Multiple Models Available
Exceptional Service
Fibre Laser Engraving Machines for Metal

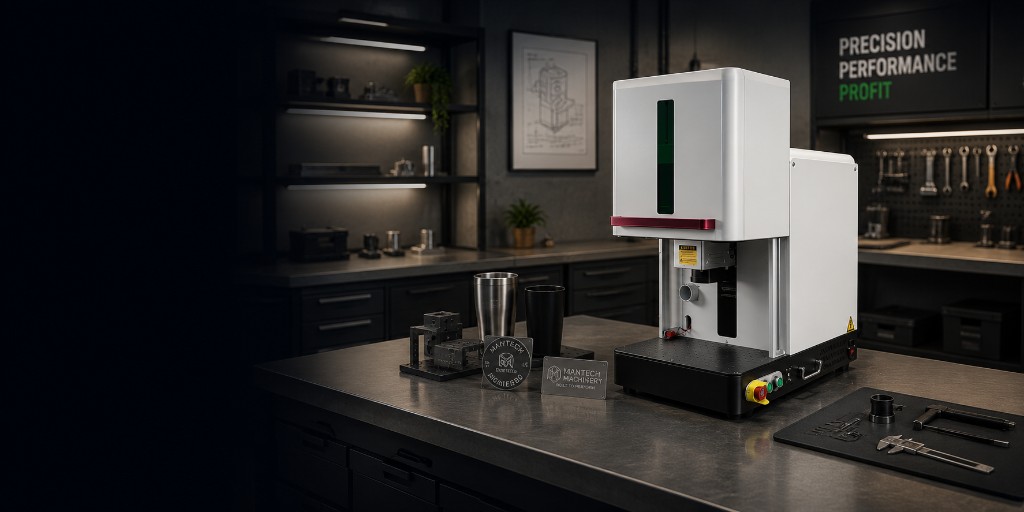

Fibre Laser Engraver – FM Model
Our FM range of Fibre Laser Metal Engravers offers the user a very versatile metal and hard plastic engraving solution in a neat all-in-one package. Perfect for engraving flat parts with logos, images, serial numbers etc with its included software package. All of our systems include a rotary unit and plate holder as standard.
Standard fibre laser engravers, while less versatile than MOPA lasers, offer several key benefits. They are highly efficient and reliable, making them ideal for high-volume industrial applications. These lasers are known for their long operational life and low maintenance requirements, which translates to reduced downtime and cost savings over time. Standard fibre lasers provide excellent beam quality, resulting in precise and consistent engraving on various metals and plastics. Additionally, they are generally more cost-effective than MOPA lasers, making them an attractive option for businesses looking to achieve high-quality markings without the need for the advanced capabilities that MOPA systems offer.
Optional air filtration systems such as a BOFA or Purex are available to purchase with all of our fibre marking systems.
Standard fibre laser engravers, while less versatile than MOPA lasers, offer several key benefits. They are highly efficient and reliable, making them ideal for high-volume industrial applications. These lasers are known for their long operational life and low maintenance requirements, which translates to reduced downtime and cost savings over time. Standard fibre lasers provide excellent beam quality, resulting in precise and consistent engraving on various metals and plastics. Additionally, they are generally more cost-effective than MOPA lasers, making them an attractive option for businesses looking to achieve high-quality markings without the need for the advanced capabilities that MOPA systems offer.
Optional air filtration systems such as a BOFA or Purex are available to purchase with all of our fibre marking systems.
| Specification | Fibre Laser Engravers |
|---|---|
| Power | 30/50/100W options available |
| Wavelength | 1064nm |
| Marking Range – standard/optional | 175*175 mm |
| Max marking speed | 7000mm/s |
| Min line width | 0.01 mm |
| Min character width | 0.2 mm |
| Resolution | 0.001 mm |
| Repositioning Accuracy | 0.003 mm |
| Frequency | 20-60Khz/50~100kHz |
| Cooling type | Air cooled |
| Focus unit | Motorised |
| Rotary unit | Yes – included |
| Plate holder unit | Yes – included |
| Control | Laptop (supplied) |
| Software | EZCAD |
| Delivery & installation | UK Mainland included |
| Warranty | 12 months parts and labour |

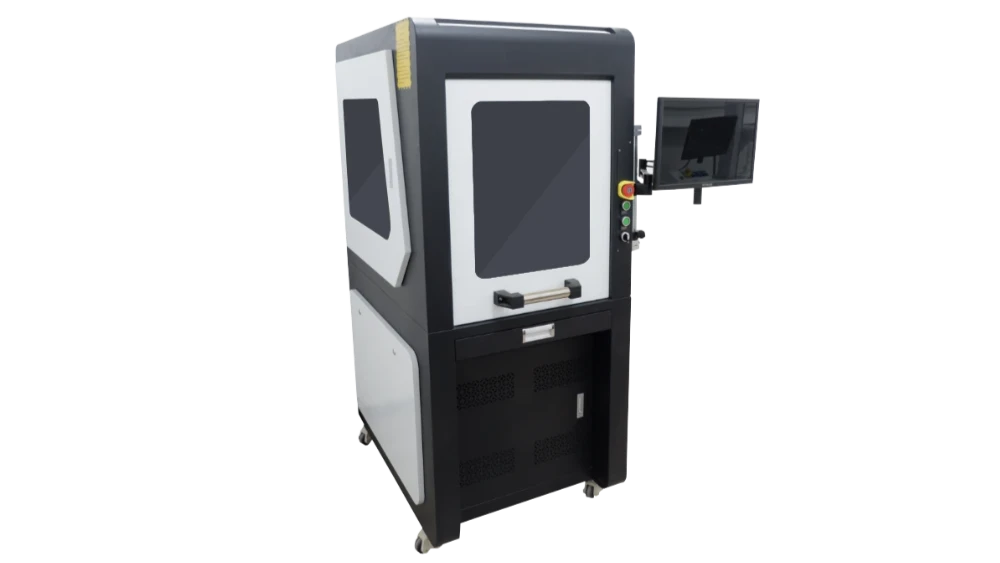

Fibre Laser Engraver – XL Model
Our XL range of Fibre Laser Metal Engravers offers an upgraded bed size for customers wanting to maximise the engraving capabilities of their machine. A fantastic machine at an affordable price, perfect for a wide range of applications from marking serial numbers and logos to tools, parts and custom graphics.
Optional air filtration systems such as a BOFA or Purex are available to purchase with all of our fibre marking systems.
Optional air filtration systems such as a BOFA or Purex are available to purchase with all of our fibre marking systems.
| Specification (XL Model) | Fibre Laser Engravers |
|---|---|
| Power | 50/100W options available |
| Wavelength | 1064nm |
| Marking Range – standard/optional | 300*300 mm |
| Max marking speed | 7000 mm/s |
| Min line width | 0.01 mm |
| Min character height | 0.2 mm |
| Resolution | 0.001 mm |
| Repositioning Accuracy | 0.003 mm |
| Frequency | 20-60Khz/50~100kHz |
| Cooling type | Air cooled |
| Focus unit | Motorised |
| Rotary unit | Yes – included |
| Control | PC (supplied) |
| Software | EZCAD |
| Delivery & installation | UK Mainland included |
| Warranty | 12 months parts and labour |

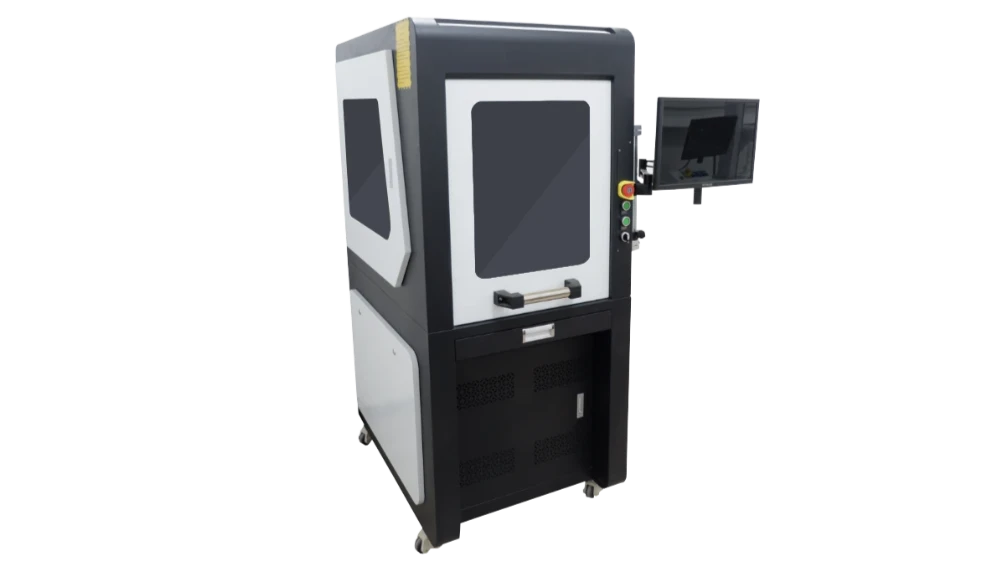

Fibre Laser Engraver – XL MOPA Model
Our XL MOPA range of Fibre Laser Metal Engravers offers an upgraded bed size for customers wanting to maximise the engraving capabilities of their machine, this uses a special power source that allows for various ‘colour grading’ engraving on stainless steel.
A MOPA (Master Oscillator Power Amplifier) fibre laser engraver offers distinct advantages over a standard fibre laser engraver. One of the key benefits is its ability to vary the pulse duration, enabling precise control over the engraving process. This flexibility is especially useful for marking heat-sensitive or delicate materials, resulting in higher-quality engravings with minimal thermal damage. Additionally, MOPA lasers can generate a broader spectrum of colours on metals like titanium and stainless steel, opening up new aesthetic possibilities.
Optional air filtration systems such as a BOFA or Purex are available to purchase with all of our fibre marking systems.
A MOPA (Master Oscillator Power Amplifier) fibre laser engraver offers distinct advantages over a standard fibre laser engraver. One of the key benefits is its ability to vary the pulse duration, enabling precise control over the engraving process. This flexibility is especially useful for marking heat-sensitive or delicate materials, resulting in higher-quality engravings with minimal thermal damage. Additionally, MOPA lasers can generate a broader spectrum of colours on metals like titanium and stainless steel, opening up new aesthetic possibilities.
Optional air filtration systems such as a BOFA or Purex are available to purchase with all of our fibre marking systems.
| Specification (XL MOPA Model) | Fibre Laser Engravers |
|---|---|
| Power | 60/100W options available |
| Wavelength | 1064 nm |
| Marking Range – standard/optional | 300*300 mm |
| Max marking speed | 7000 mm/s |
| Min line width | 0.01 mm |
| Min character height | 0.2 mm |
| Resolution | 0.001 mm |
| Repositioning Accuracy | 0.003 mm |
| Frequency | 1-4000 khz |
| Pulse width | 2-500 ns |
| Cooling type | Air cooled |
| Focus unit | Motorised |
| Rotary unit | Yes – included |
| Control | PC (supplied) |
| Software | EZCAD |
| Delivery & installation | UK Mainland included |
| Warranty | 12 months parts and labour |
Fibre Laser Engraver – 3D MOPA Model
3D MOPA fibre laser engravers represent a cutting-edge advancement in laser marking technology, combining the precision and versatility of MOPA lasers with the ability to engrave on three-dimensional surfaces.
These advanced systems can adjust pulse durations to fine-tune the engraving process, allowing for intricate and detailed markings on a variety of materials, including metals and certain plastics.
The 3D capability enables consistent, high-quality engravings on curved, angled, and uneven surfaces, expanding the range of potential applications. Ideal for industries that require both aesthetic quality and functional precision, 3D MOPA fibre laser engravers are revolutionising the way we approach complex engraving tasks.
These advanced systems can adjust pulse durations to fine-tune the engraving process, allowing for intricate and detailed markings on a variety of materials, including metals and certain plastics.
The 3D capability enables consistent, high-quality engravings on curved, angled, and uneven surfaces, expanding the range of potential applications. Ideal for industries that require both aesthetic quality and functional precision, 3D MOPA fibre laser engravers are revolutionising the way we approach complex engraving tasks.
| Specification (3D MOPA Model) | Fibre Laser Engravers |
|---|---|
| Power | 60W MOPA 3D |
| Wavelength | 1064 nm |
| Marking Range – standard | 200*200 mm |
| Max marking speed | 7000 mm/s |
| Min line width | 0.01 mm |
| Min character height | 0.2 mm |
| Spot diameter 1/e2 | 0.025 mm |
| Resolution | 0.001 mm |
| Repositioning Accuracy | 0.003 mm |
| Frequency | 1-4000 khz |
| Pulse width | 2-500 ns |
| Cooling type | Air cooled |
| Focus unit | Motorised |
| Rotary unit | Yes – included |
| Control | PC (supplied) |
| Software | EZCAD/Lenmark |
| Delivery & installation | UK Mainland included |
| Warranty | 12 months parts and labour |
What is a Fibre Laser Engraver and how do they work?
Our Fibre Marking Lasers stand out as the optimal solution for etching across a diverse array of materials with unparalleled precision. Achieving complex graphics is straightforward with a fibre marking machine.
Utilising a laser power source, a fibre laser generates a robust laser beam directed with extraordinary precision via a Theta lens. The device operates without mechanical moving components and features a protective pull-down cover to prevent operator exposure to laser pulses.
When the concentrated laser beam, guided through the Theta lens, contacts the material’s surface, it heats and oxidizes the top layer without compromising the material’s integrity. Typically, the laser’s intensity is calibrated to not penetrate the metal to cut through, except in the case of very thin foils.
A significant advantage of this marking and engraving method is its permanence and high resilience to environmental factors such as heat and abrasion. This process is not only precise but also remarkably fast, ensuring efficient project completion.
The operation of a Fibre Marking Engraving Machine is predominantly software-driven, with our models utilizing EZCAD for its simplicity. This software allows for the creation of designs and adjustment of machine settings. Additionally, it supports file imports from various design programs, including Coreldraw, Adobe Illustrator, and other 2D CAD drawing tools, facilitating seamless design integration.
Utilising a laser power source, a fibre laser generates a robust laser beam directed with extraordinary precision via a Theta lens. The device operates without mechanical moving components and features a protective pull-down cover to prevent operator exposure to laser pulses.
When the concentrated laser beam, guided through the Theta lens, contacts the material’s surface, it heats and oxidizes the top layer without compromising the material’s integrity. Typically, the laser’s intensity is calibrated to not penetrate the metal to cut through, except in the case of very thin foils.
A significant advantage of this marking and engraving method is its permanence and high resilience to environmental factors such as heat and abrasion. This process is not only precise but also remarkably fast, ensuring efficient project completion.
The operation of a Fibre Marking Engraving Machine is predominantly software-driven, with our models utilizing EZCAD for its simplicity. This software allows for the creation of designs and adjustment of machine settings. Additionally, it supports file imports from various design programs, including Coreldraw, Adobe Illustrator, and other 2D CAD drawing tools, facilitating seamless design integration.
Fibre Laser Engraver range in summary
Our selection of Fibre Laser Engravers offers an ideal solution for businesses in need of a rapid engraving system. These engravers are designed to inscribe part numbers, serial numbers, and graphics onto metals and hard ABS-style plastics efficiently.
What’s included
| Fibre Laser Engravers Standard Equipment | Information |
|---|---|
| Safety glasses | Yes |
| Laptop/computer | Yes |
| USB Import | Yes |
| Extraction System | No – available as an upgrade |
| Software package | EZCAD |
| Installation | Yes |
| Training | Yes |
| Warranty | 12 Months Parts & Labour |
Get in touch today!
Buying machinery is a big step for any business and you want to know you’re purchasing the right machine that matches your business needs. This is where our Technical Sales team will help you make the right choice.
Why not give us a call on 0121 541 1444
*Offloading and siting of the machine is the end user’s responsibility, we will, however, advise all of our customers should they need assistance with this.
Why not give us a call on 0121 541 1444
*Offloading and siting of the machine is the end user’s responsibility, we will, however, advise all of our customers should they need assistance with this.
