CNC Router Machines
Easy to use , high performance industrial CNC Routers for your business. Bring your manufacturing in-house with a CNC from Mantech Machinery.
The UK's #1 CNC Router Supply & Installation Specialists
Our Range Of CNC Router machines are fully tested to rigorous standards at our 32,000 square feet facility in Oldbury in the West Midlands. Our premise has always been to supply affordable, high quality CNC machinery whilst also putting first class service front and centre.
Our CNC routers come with standard features and equipment such as vacuum beds & vacuum pumps, extraction systems, high performance spindles like our 6KW & 9.0KW Air Cooled Electro Spindles and software. We also have a number of upgrades which can be opted for upon ordering, speak to one of our industry experts where you can discuss your CNC application, ensuring you purchase the correct CNC router for your needs. Each range and model have a wide array of features and functions that are suitable for a huge number of industrial CNC Router tasks, even right the way down to our smallest machine that has a bed size of 600 x 900 mm, our Spartan 6090.
All of our powerful CNC routers are capable of easily cutting & engraving a wide range of materials such as plastics such as acrylic and HDPE, wood, soft metals such as aluminium and brass. Whether you are looking for an 8 x 4 CNC, 10 x 5ft CNC or custom-sized CNC router, we have you covered. Our Spartan CNC Routers offer exceptional performance, yet are easy to operate and our standard 12 months warranty whereas when you buy a Merlin or Apollo CNC router you get the ultimate in feature set, leading edge performance and our in-house developed M-Tech CNC motion control and our industry leading 2 years warranty.
All CNC Routers supplied by Mantech come with warranty ranging from 1-5 years and depending upon your business needs. All Apollo & Merlin CNC Routers come with a standard warranty of 24 months. Not only that but we also offer extended warranties and on-site maintenance programs to give you full peace of mind.
Our Range of CNC Routers

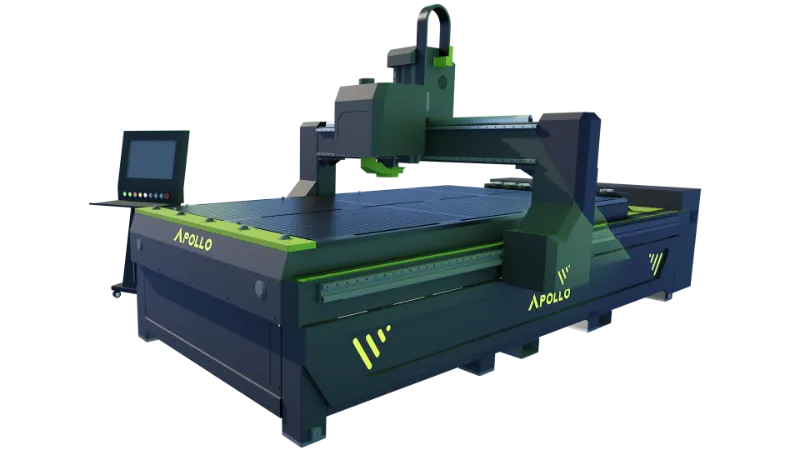

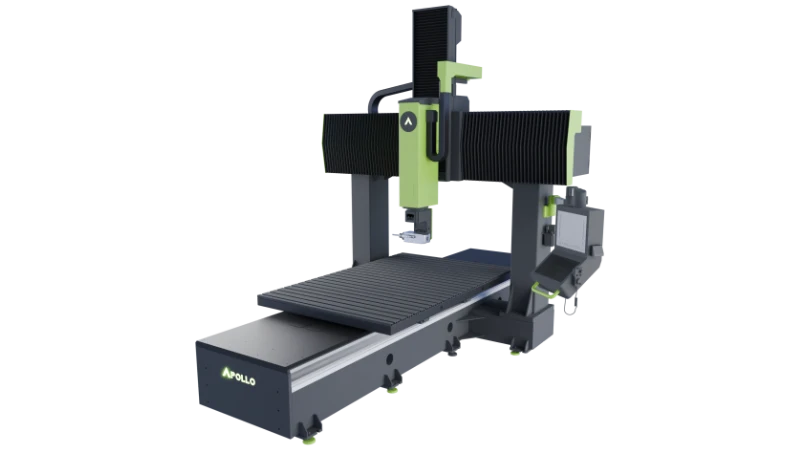

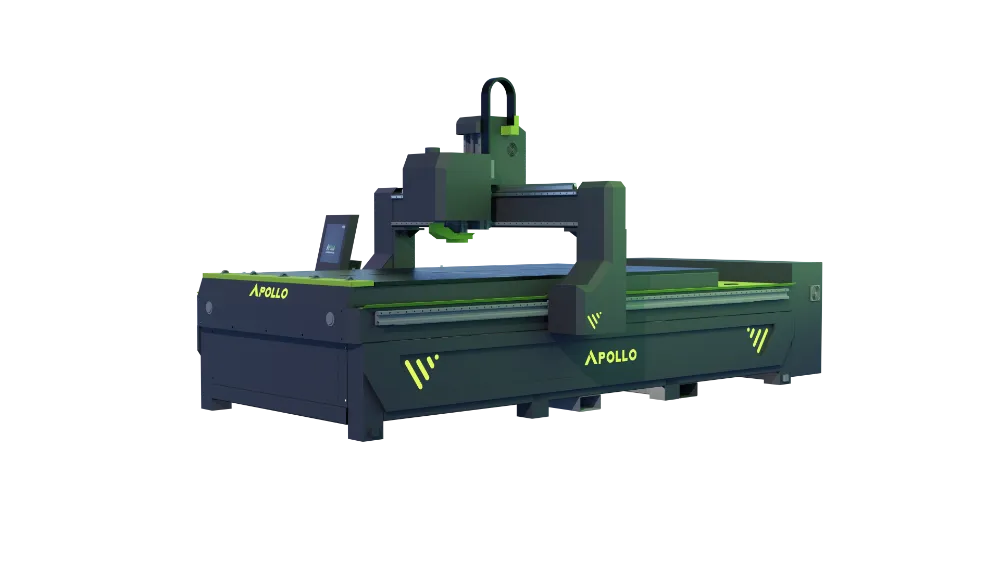

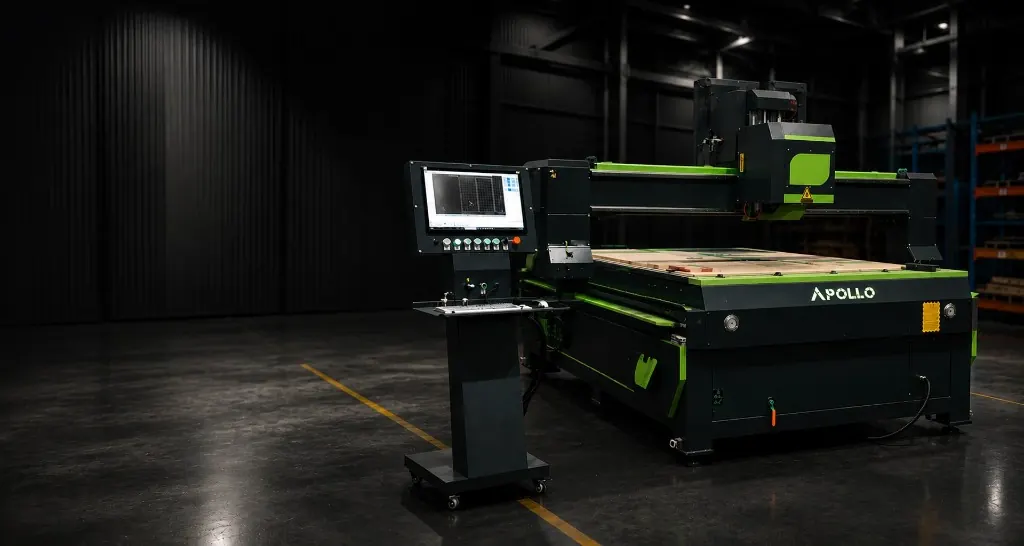

Apollo CNC Router System Overview:
Designed in the UK and comes with a 2 Year Warranty – These impressive Automatic Tool Change CNC Routers are powerful, highly versatile CNC options for material such as wood, plastics, composites, foam, aluminium, brass, and much more.
At the heart of our ATC Routers is its high performance auto tool changing spindle system, manual tool changes are a thing of the past with this machine.
All of our Apollo CNC Routers come with 9.0KW air cooled spindles that operate up to 24,000 rpm. They are also configured with extremely accurate servo drives for unbeatable accuracy and repeat-ability, the at home woodworking or used in plastics fabrication, the Apollo is a true work horse.
An advanced CNC router that has exceptional build quality and is built to withstand heavy loads in the most challenging of environments. This combined with our own custom in-house developed motion control system (M-TECH) complete with a new visual UI PC based system to control all aspects of the CNC router.
Our Apollo CNC routers are guaranteed to decrease manufacturing times and increase productivity with it’s incredible high performance.
Merlin CNC Router System Overview:
UK designed CNC Router with a 2 Year Warranty. Don’t have the need for automatic tool change on your new CNC? our Merlin range of CNC routers are the perfect choice.
This professional powerful UK designed CNC Router is built to last with it’s rigid build and high quality components, our range of Merlin CNC routers come in a wide variety of bed sizes to suit all requirements and are easy to operate by users of all levels.
Our Merlin range of CNC machine are best in class when it comes to price and performance and are perfectly suited to a wide range of applications such as woodworking, sign making, plastics fabrication, boat building and so much more.
Now available with our own custom in-house developed motion control system, the Merlin CNC router is better than ever.
Value, performance, build quality, support – just like all of our machinery ranges. The Merlin CNC Router is an excellent performance option with superb upgrade features.
The Merlin range has the same attention to detail when it comes to build and quality components. Merlin – with our industry-leading 2 years parts & labour warranty.
Spartan ATC CNC Router Overview:
Our entry level Automatic Tool Change CNC Router.
The latest introduction to our CNC router line up, our Spartan ATC offers our customers an affordable automatic tool change system at an astonishing price.
Making the Spartan ATC an excellent addition to the range.
You get the same great reliable operation as the current Spartan manual CNC system but with the addition of an auto tool change system combined with a 9.0kW auto tool change, air cooled spindle.
With it’s high performance components and extremely easy to operate control system, the Spartan ATC CNC Router has so much to offer any business wanting a superb value for money system with our renowned after sales service.
Available in a range of bed sizes such as 8 x 4 ft, 10 x 5 ft we also offer the Spartan ATC in a bed size of 2000 x 3000 mm to cater for larger sheets of materials.
Industrial in every way from its hi tensile steel construction to its performance air cooled spindle and drive system, the Spartan ATC gives our customers the full package.
All without breaking the bank for a fully featured automatic tool change CNC router.

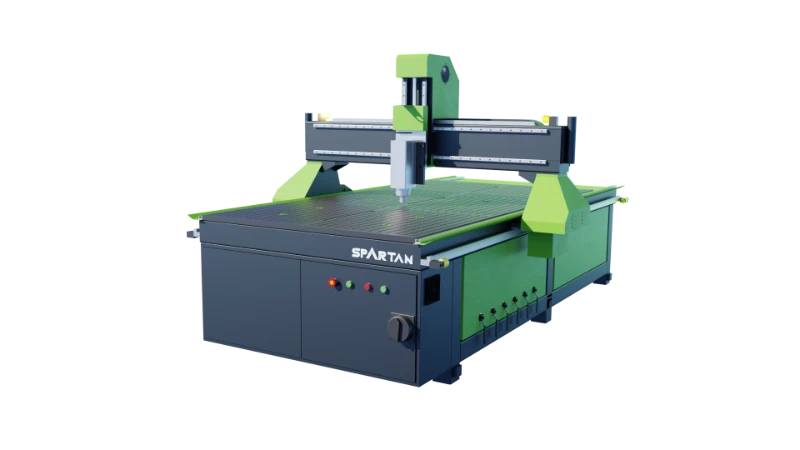

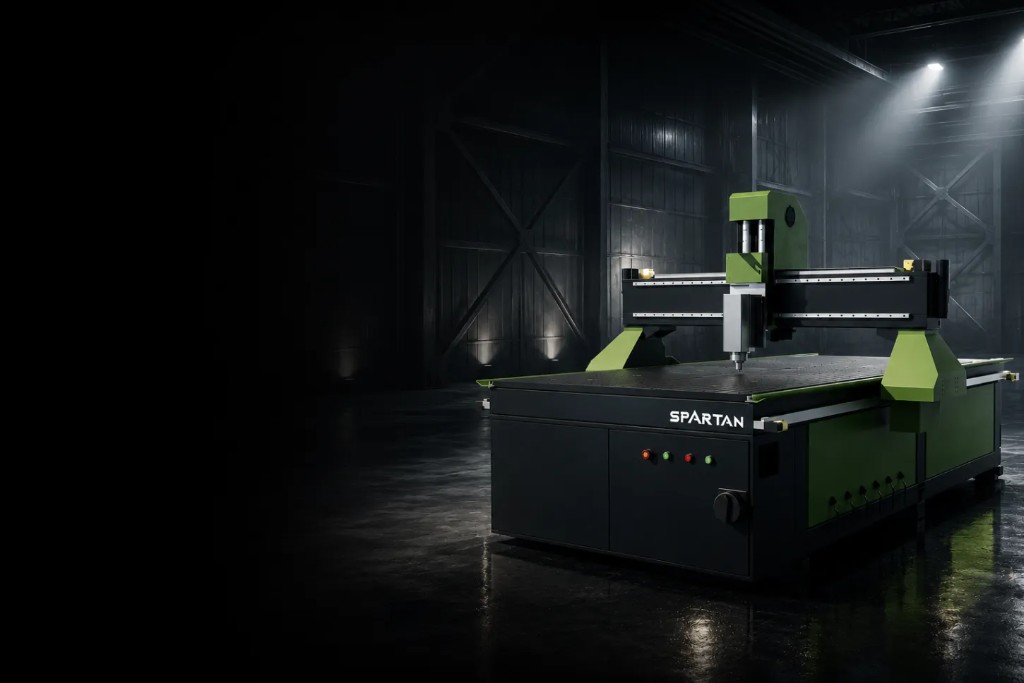

Spartan CNC Router System Overview:
A real Industrial Entry Level CNC Router Option offering exceptional build and performance yet extremely affordable.
The Spartan CNC range is a real favourite with our customers, offering remarkable performance, yet it’s reasonably priced.
Within the range, we have a great space-saving and budget solution to entering the CNC router market, our 6090 entry-level CNC routers give the user a compact 600 x 900 mm cutting bed with vacuum and extraction included. With bed sizes to cover most needs and its high performance this affordable CNC solution really hits the spot.
With high quality components and performance to match, you don’t have to go hobbyist to start your CNC journey.
The Spartan CNC range comes complete with high performance components, is extremely well built for a machine of this level, ensuring you don’t have to sacrifice with your purchase.
To sum up the Spartan CNC router, it’s a great entry level CNC option that has some of the best components for the price, is built to perform like a true industrial router (no aluminium extrusion here) and doesn’t break the bank.

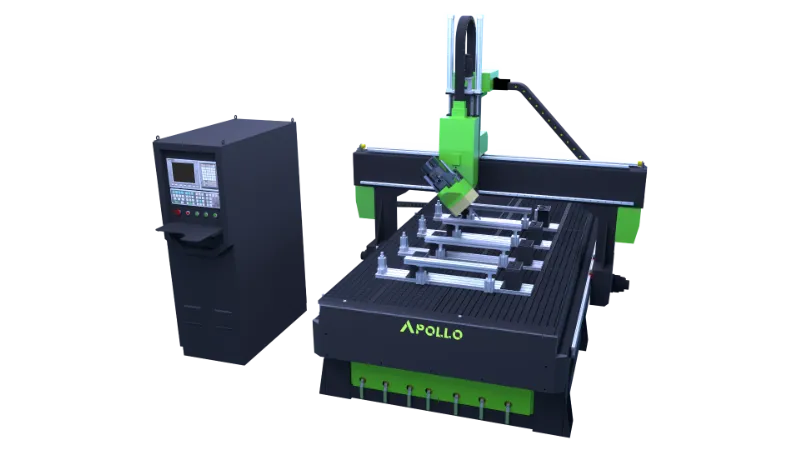

The all NEW Apollo 4 Axis CNC router is our newest multi axis CNC router packed full of features offering you a superior experience and control over your projects. With it’s advanced servo motors and fast transmission, alongside the Syntec control, the Apollo 4 axis offers you high speed operation with versatile productivity options

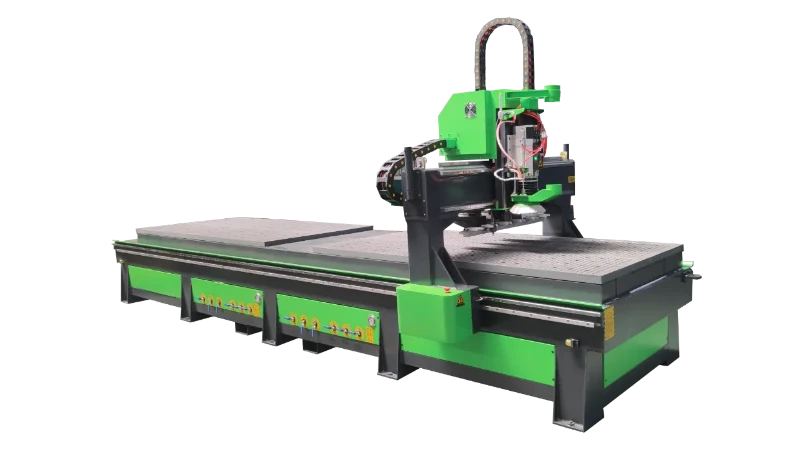

NEW Another first at Mantech Machinery, Dual Bed CNC Routers with a dynamic gantry mounted high speed auto tool changing system. Increase your productivity and output by using this pendulum based CNC router system. Load one bed whilst the other is being processed, speeding up your output, reducing customer wait times and increasing your turnover.

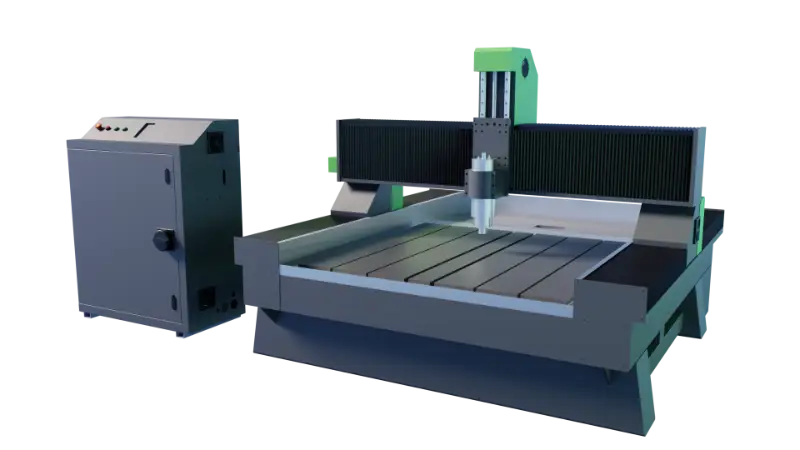

NEW to Mantech is our Stone-Tech range of CNC routers capable of cutting and engraving stone and marble. Powerful, robust and industrial grade. The Stone-Tech CNC router system is a versatile stone & marble cutting and engraving solution that is easy to use with competitive pricing. Find out more about this capable stone CNC router system and how it could help transform your stone cutting and engraving porocesses.
CNC Router Spindle Repairs
Broken spindle? our team of expert spindle refurbishment engineers can bring your CNC Router spindles back to life.
Buy CNC Router Parts Online
Looking for a new spindle, chiller or even a new vacuum pump for your existing CNC router then why not visit our parts website.
CNC Plasma Cutters
Looking for CNC Plasma Cutters for sheet metal applications?
Visit our VIDEO VAULT
Our video vault is updated on a regular basis with machinery videos, so keep checking back for more.
Why use a CNC Router?
A CNC router can help you and your business reach manufacturing goals by eliminating tedious manual processes such as cutting/profiling, drilling, and engraving. By embracing CNC routing, this automation you can save on manufacturing costs over time and increase quality output, whilst also reducing waste.
Our CNC machines can cater to a number of different scenarios from standard CNC routing like a 3 axis machine or 4 axis requirements. We also offer custom manufactured CNC machines like multi-spindle systems, stone routing, and engraving alongside dual bed machines. Offering you a wide array of options that would suit your needs.
Don’t worry, our team of industry professionals will be able to help you opt for the right machine, ensuring maximum productivity.
Who uses a CNC Router?
We have customers who use CNC routers in a wide range of industries due to how versatile they are. With so many different types of tools and materials available on the market today its no wonder why a CNC router is a perfect choice for many different types of customer.
See below for examples of the types of customers that use our CNC routers:
- Furniture Makers
- General Woodworking

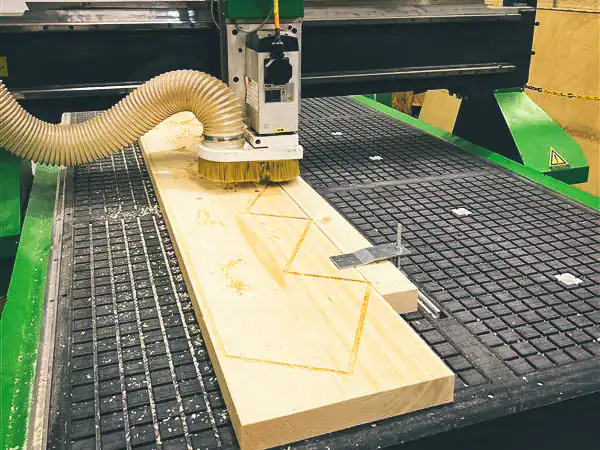

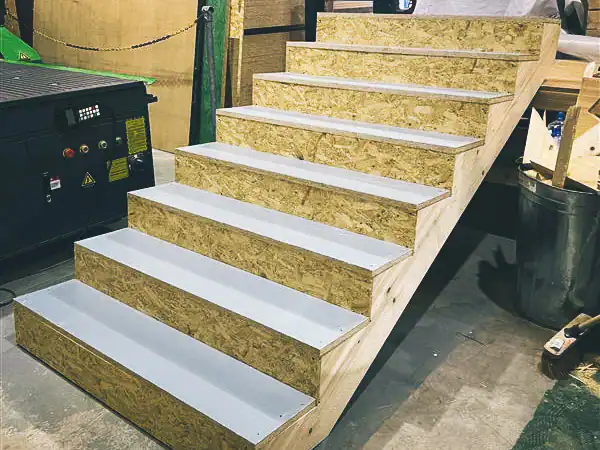

- Staircase Makers
- Plastic Fabricators
- Aerospace Engineers
- Marine Engineers
- bespoke Woodcraft
- Van Plyliners
- Vehicle Conversion Companies
- Sign Makers
- Exhibition Stand Manufacturers
- Boat Builders
- Custom Guitar Makers
- Shadow Board and Tool Box Manufacturers
- Educational Establishments
- Charities and Non-profit Organisations
- Component Engineering
More CNC router related information you may like to read:
How to cut metal on a CNC router
How can a CNC Router help your business?
What can you make on a CNC router?
What is a CNC Router?
A CNC Router (or computer numerical control router) can be used to process the tasks of other machinery in an all in one solution. For example:
- Panel Saw
- Spindle moulder
- Or a boring machine
- Reducing waste
- Reduction in production times
- Repeat, high-quality output
- Versatile. A CNC uses different types of tooling, giving the user the ability to cut many different materials and allow for multiple cut formats.
Using your CNC router, you can produce many different projects and items such as:
- Interior & exterior decoration
- Wood panels
- Signboards and products
- Instruments
- Furniture
- Worktops
- Kitchen products such as cabinets, doors
- 3D engraving and much more.
Our high performance, industrial yet easy to use CNC routers are split across 5 different ranges:
What can you cut with a CNC Router Machine?
CNC Corian
We have a number of customers who use their CNC routers produce kitchen worktops and bespoke designs from Corian and other solid surface materials. Our Merlin CNC and Apollo CNC Machines are the perfect partner for solid surface processing.
CNC Carbon Fibre
Our CNC Machine range are undeniably versatile. Drilling and cutting carbon fibre has never been easier with either of our Apollo, Merlin or Spartan CNC routers.
CNC Tool Box Foam
Looking to produce tool box inserts or custom product protection? To get the very best finish on your shadow tool foam inserts and custom designs, use a roughing tool first then a finishing tool to finalise the end product.
CNC Aluminium
Easily cut aluminium on a Mantech CNC router. Our CNC routers are fully capable of cutting aluminium sheet. We recommend using a tool lubricant to ensure you produce the very best results.
CNC MFC Wood
MFC cutting and grooving is a very simple task for all Mantech CNC Routers, whether you opt for an automatic tool change or a manual tool change machine. Perfect for industry such as furniture and kitchen fabrication.
CNC Acrylic
Every Mantech CNC router machine will also cut and engrave plastics such as acrylic. If used correctly you can also use a CNC router to not only cut and engrave but also polish the edges of your material. This would be achieved using a final pass and ‘skimming off’ a small amount of material.
CNC MDF Wood
We have a vast number of customers who process all sorts of materials on their Mantech CNC. Especially in the furniture and kitchen industry, where MDF is used in a wide variety of applications.
CNC Foam board
With our CNC router range you are easily able to produce all kinds of products using materials like Foam board or Foamex. Our CNC routers are of course more than powerful enough to cut through even the thickest of foam board.
Other Materials you can easily cut on a CNC router with the correct tooling:
- TRESPA
- PLEXIGLASS
- PLYWOOD
- VERMICULITE BOARD
- RUBBER SHEET
- MAPLE WOOD
- BIRCH PLY WOOD
- HIGH PRESSURE LAMINATE
- XANITA FIBREBOARD
- WALNUT WOOD
- LAMINATED WOOD
- REDWOOD
- OSB BOARD
- TUFNOL
- POLYCARBONATE
- MELAMINE
- HDPE
- CEDAR WOOD
CNC Router Software - What CAD/CAM Package?
All of our CNC routers come with Vectric V Carve Pro as standard with upgrades available to Aspire or Alphacam should you need it. Find out more about how V Carve can help you achieve your production goals:
VCarve Pro provides a powerful but intuitive software solution for creating and cutting parts on a CNC Router. VCarve Pro gives you the power to produce complex 2D patterns with profile, pocket, drill and inlay toolpaths, plus gives you the ability to create designs with v-carving textures as well as import and machine unlimited Vectric 3D clipart or single model files. The ‘Pro’ edition gives you unlimited job and toolpath size, true shape nesting & job set-up sheets, ideally suited to a production environment. Remember all of our CNC routers include training on VCarve Pro.
2-sided Machining
Easily create double-sided projects in the same session instead of using 2 separate sessions.
Drawing & Layout
VCarve Pro has a full comprehensive set of features to easily let you create complex vectors from within the package, or even imported data.
Gadgets
Add additional functionality to Vectric for tools such as Donek drag knives etc which will fit into the spindle.
True Shape Nesting
Automatically arrange and fit vector shapes into your material size, get optimal material usage with minimum waste materials.
Pro Features
Create merged toolpaths, job sheet summaries and generate toolpath templates to enhance efficiency of workflow and production times. By using the array toolpath function you can duplicate toolpaths as a block based upon dimension you input.
Toolpaths
Covering all typical 2D routing operations, 2.5D & 3D machining strategies. Toolpaths can be easily previewed to show the user how the part will look when cut on their CNC router.
3D Component Editing
Shapes can be easily scaled, moved, mirrored and grouped. VCarve also allows you to smooth a 3D object. The software also has a tool to Z-slice a part to create separate models if your CNC size, tooling or material limits the depth of part you can cut.
3D View Manipulation
Many of the dynamic component editing tools can be accessed directly from the 3D view. This allows 3D objects to be moved, scaled and rotated. In addition how they combine with other shapes can be adjusted along with their height and even adding a tilt or fade.
For the full list of features that Vectric VCarve pro can perform, head on over to their website for more information.
Which CNC is best for me?
Choosing the right CNC for you and your business is very important. You want to ensure that the machine is capable of producing the right output you need whilst also having the right level of features required. Here are some basic questions you should be asking yourself, as always if you you are unsure, why not speak to one of our helpful Sales Engineers who would be more than happy to assist you with unbiased advice, ensuring you opt for the right machine.
Spartan CNC Router
Affordable Industrial CNC Router Range-
Bed Sizes (mm): 600*900/1300*1300/1300*2500/1500*3000 Available On The Spartan
-
2.2 - 4.5kW Performance Spindles With The 2.2kW & 3.0kW Being Water Chilled
-
High Performance Stepper Drives Across The Spartan Range Of CNC Routers
-
Mechanical Drive: Ball Screw XYZ on 6090 / TBI Ballscrew on Z with Helical Rack & Pinion On XY 1313Upwards
-
Linear Guide Rails/Carriers: HIWIN Oil Inject Centralised Linear Rails/Lubrication
-
Control System: NK105 Hand Control For Easy Usage
-
Vacuum System Included
-
Extraction Included
-
Vectric V Carve Pro Software Included
-
Delivery & Installation
-
12 Months Parts & Labour (Extended Warranty Periods Available)
Merlin CNC Router
High Performance CNC Router Range-
Bed Sizes (mm): 1300*1300/1300*2500/1500*3000/2000*3000 (Custom Sizes Available)
-
6.0kW (8hp) ER32 Air Cooled Performance Manual Tool Change Spindle
-
Rapid Hybrid Drive System (Exceptional Performance With Lower Power Consumption
-
Mechanical Drive: Helical Rack & Pinion XY With Reciprocating Ballscrew On Z Axis
-
Linear Guide Rails/Carriers: HIWIN Oil Inject Centralised Linear Rails/Lubrication
-
Control System: Advanced M-Tech Motion Control With Touch Screen Operation Plus Wireless MPG Pendant
-
Pnuematic Pop Up Material Positioning Stops
-
Vacuum System Included
-
Extraction Included
-
Vectric V Carve Pro Included. Aspire Packages Optional
-
Delivery & Installation
-
2 Years Parts & Labour Warranty (Extended Warranty Periods Available)
-
Fully Upgradable to ATC In The Future
Apollo ATC CNC Router
High Performance Automatic Tool Change CNC Router Range-
Bed Sizes (mm): 1300*1300/1300*2500/1500*3000/2000*3000/2000*4000 Custom Sizes Available
-
9.0kW (12hp) ER32 Air Cooled Performance Spindle
-
Auto Tool Change Function. 8 X ISO 30 Tool Holders/Positions
-
Rapid Hybrid Drive System (Exceptional Performance With Lower Power Consumption)
-
Mechanical Drive: Helical Rack & Pinion XY With Reciprocating Ballscrew On Z Axis
-
Linear Guide Rails/Carriers: HIWIN Oil Inject Centralised Linear Rails/Lubrication
-
Control System: Advanced M-Tech Motion Control With Touch Screen Operation Plus Wireless MPG Pendant
-
Pnuematic Pop Up Material Positioning Stops
-
Vacuum System Included
-
Extraction Included
-
Vectric V Carve Pro Included. Aspire Packages Optional
-
Delivery & Installation
-
2 Years Parts & Labour Warranty (Extended Warranty Periods Available)
What working area do I need?
This really should be your first thought when it comes to purchasing CNC routers. The last thing you want to do is realise that the bulk of your work won’t be able to be machined on the router bed.
If you only need a 600 x 900 mm working area, you need to be looking at our Spartan CNC Router range but if you need anything larger you have additonal choice, Merlin or Apollo.
Our Spartan range comes in 600 x 900, 1300 x 1300, 1300 x 2500, 1500 x 3000 mm.
Merlin & Apollo come in 1300 x 1300 (Merlin only), 1300 x 2500, 1500 x 3000, 2000 x 3000, 2000 x 4000 mm. Custom bed sizes are available on request.
Do I need advanced functionality?
When it comes to CNC routing you may only require a basic set of features but on the flip side you may require additional features like touch screen, pop up stops, upgrade path to ATC etc.
If you need a standard set of meaningful features without the need for advanced functionality our Spartan range offers the very best in build quality, performance and value for money. Need the best of the best, that’s where our Merlin and Apollo come in.
Our Merlin CNC has the same great build and feature set as as the Apollo ATC just without the auto tool change system. However our Merlin CNC router range can also be fully upgraded to Auto Tool Change at a later date, saving our customers the initial outlay.
Is auto tool change a requirement?
If you’ve decided upon our most feature rich options of either the Merlin or Apollo CNC router ranges. The one question that you should ask is ‘do you need auto tool change?’ With auto tool change CNC machines the operator programs the software to produce a number of different tool paths that require different tools.
The CNC router will look at this output and automatically collect the right tool from their tool positions and carry on cutting without the need for the operator to interact. If you need this functionality combined with everything else the Merlin CNC offers, then the Apollo CNC is for you.
Whichever Mantech CNC router your business chooses, you will benefit from our excellent aftercare service with our dedicated service department who are on hand to assist if you ever need them. We also offer service contracts on all of our CNC routers for when your standard warranty expires to give you ongoing peace of mind.
RECENT CNC ROUTER MACHINE INSTALLATIONS - CNC Routers, ATC CNC Routers, Manual Tool Change CNC Routers.
CNC Router – Norwich
This model is our Merlin 1325 and has been fully commissioned for our new customers based in Norwich. It may be packed with features for
CNC Router – Cheddar
Commissioning and training complete for our customers based in Cheddar. This Merlin 1325 CNC Router is jam-packed with features and uses our in-house developed M-Tech
CNC Router – Cambridge
Commissioned and fully trained, our new customer based in Lode, Cambridge will use this new Apollo 2030 to aid in the production of expertly built

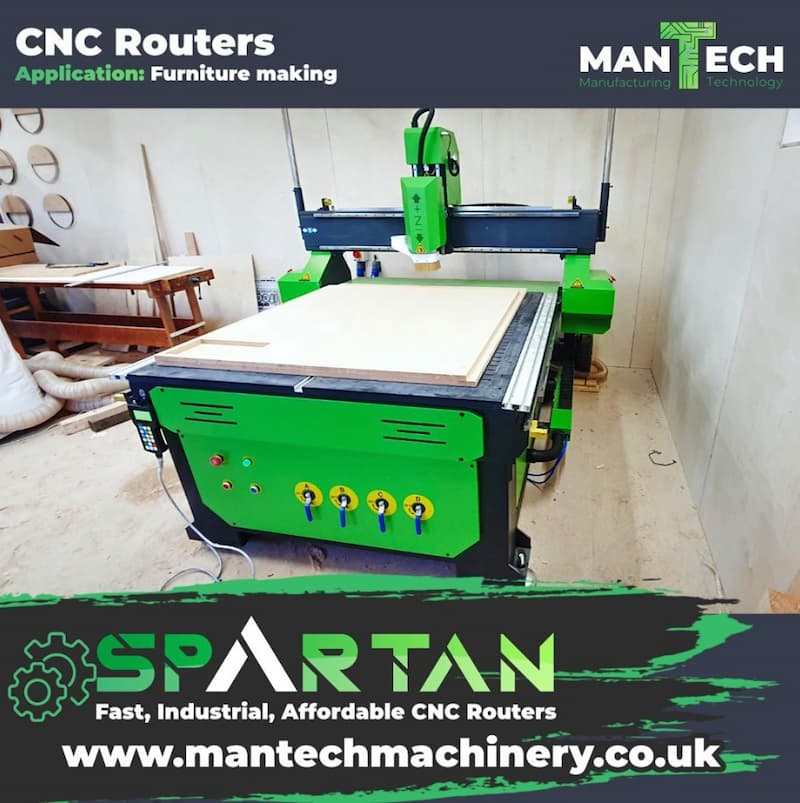

Custom Joinery Made Easy – Spartan CNC Router
CNC Routers For Wood This custom carpenter will reap the benefits of using one of our Spartan CNC 1325 routers within his business – better

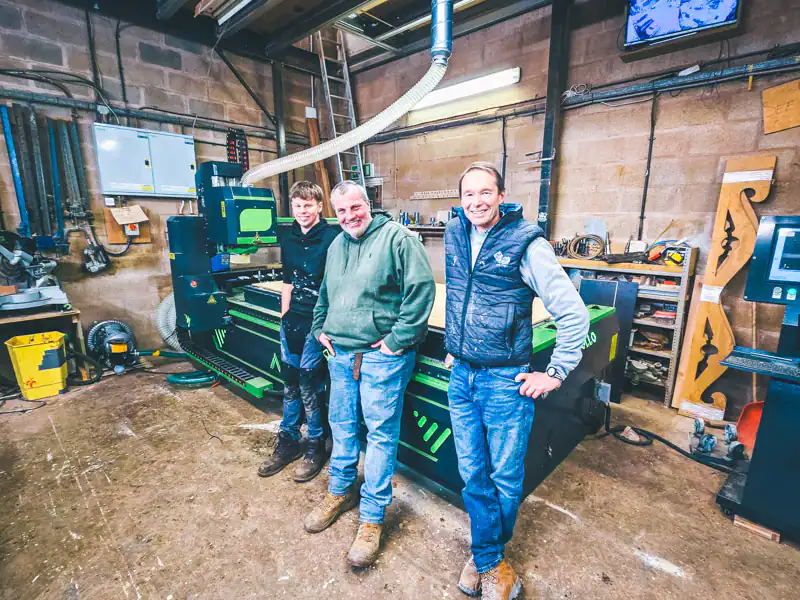

Apollo CNC Router Installation – Kitchen Fabrication
Fully installed alongside 3 other machines. This Apollo ATC CNC Router will be used to produce high-end custom furniture. Automatic tool change with our highly
CNC User In Limerick – Spartan CNC Router
An Affordable CNC Router option – Spartan CNC Thumbs up for this new customer based in Limerick, Ireland. The ever-popular Spartan CNC Router series combines

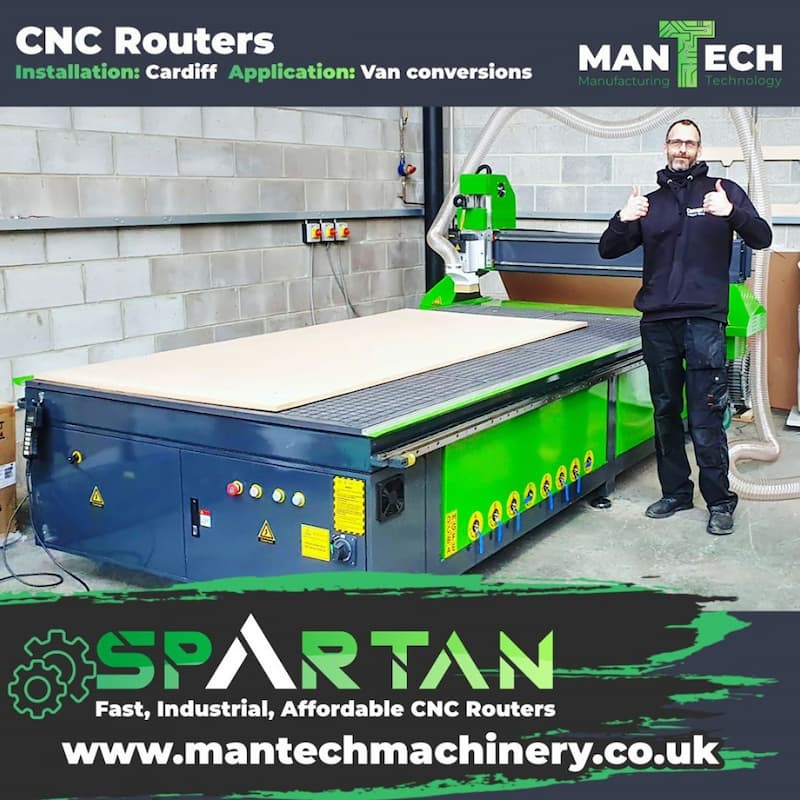

Spartan CNC Router aces camper van conversions
Camper van conversions made easy with one of our Spartan 1530 CNC Routers. Fully installed and able to start producing right away. The Spartan CNC

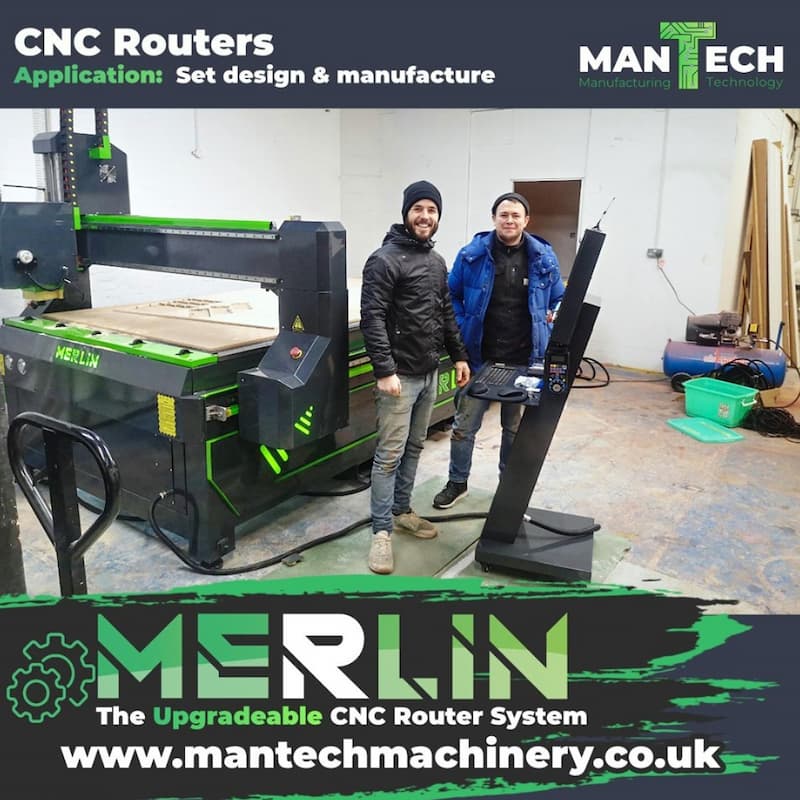

Set Designers based in Croydon choose Merlin CNC Router
Our new customers based in Croydon, are all smiles – they are now the proud owners of a Merlin CNC router 😀 . This machine

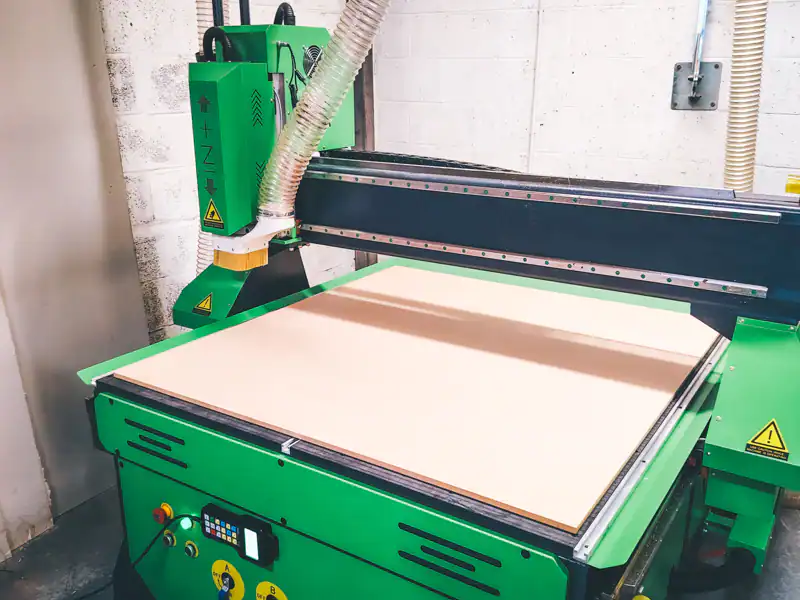

A CNC Router that won’t break the bank
Our Spartan 1313 CNC Router is a compact CNC that won’t break the bank! Perfectly suited to woodworking (just like our new customer in Nottingham),
CNC Router Vacuum Bed/Sacrificial Surface Best Practices
The concept of a vacuum bed is to pull together the surface of the component/board being processed, to the surface of the sacrificial board, creating lateral ‘friction’ between the two surfaces.The more surface area in contact, the more lateral grip can be achieved.
Large Surface area = more ‘grip’
Porous products tend not to ‘seal’ as well as ‘Non Porous’ such as Acrylic for example, as air can pass through them but these tend to have a ‘rougher’ surface creating more friction between the sacrificial board and the product, compensating.
Alternatively Non porous materials i.e.Acrylic, ‘seal’ better so more pull down force is achieved to compensate for the smoother surface.
The correct size of neoprene gasket must be used, and one single length ‘per zone’, limiting the amount of joins to just 1, where air can be sucked through losing pressure applied to that zone when the component is placed above. Therefore restricting the flow, creating the ‘pull down required. It is important that the channels are completely free of debris and the neoprene gasket is not ‘stretched’ to fit in the perimeter channel, as this reduces the diameter of the seal causing an uneven surface for the sacrificial board to sit on.
The seal must be laid over the perimeter groove of each zone and firmly pushed directly ‘down’ into the groove. When the perimeter is complete, the seal must be carefully cut and ‘butted’ together to complete the seal.
When the sacrificial layer is placed on the seal and the vacuum is switched on, the sacrificial board compresses the gasket if the zone is sealed correctly.
Once all Zones have the gasket fitted correctly the vacuum can be switched on and all pipework joints can be checked for leaks that may be causing a pressure drop in the circuit.

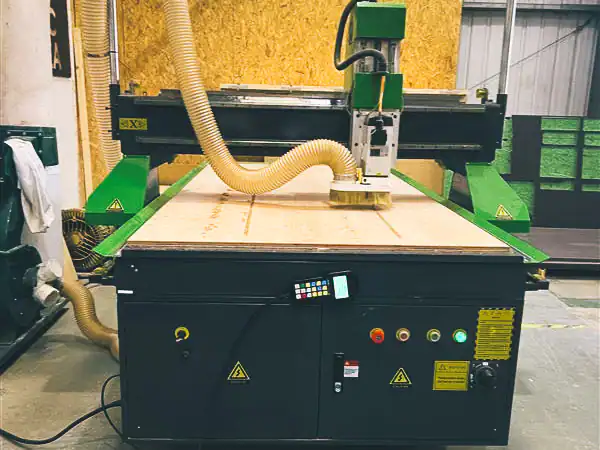

Again the concept of each ‘zone’ is that air can only flow through the fibres of the MDF within the area of that zone and directly in contact with the component being processed above. This effectively seals the circuit and affords maximum pull down on the component creating the lateral friction required, allowing the Vacuum pump to do its job.
In order to ensure the best possible lateral grip on the component, it is essential that both sides of the sacrificial surface are skimmed. This removes the ‘skin’ created during manufacture and increases air flow through the fibres of the MDF. This also ‘levels’ the sacrificial surface for accurate machining depth. You can purchase special tools for this from around £100 which save a considerable amount of time on large bed surfaces.
Finance Options Also Available.
Why not spread the cost of your new CNC Router? Mantech have a long established relationship with one of the industry leading asset finance operators in the United Kingdom. *subject to eligibility & status
Want to speak to someone?
Buying a CNC Router is a big step for any business and you want to know you’re purchasing the right machine that matches your business needs. This is where our Technical Sales team will help you make the right choice.
Why not give us a call on 0121 541 1444
