Topic | Details |
---|---|

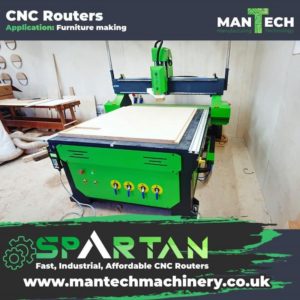

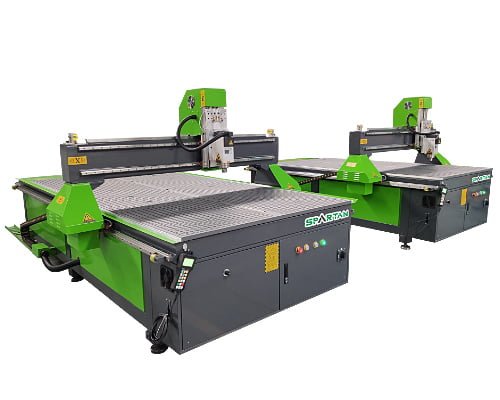

Introduction to Spartan CNC Router | Affordable, fast, and reliable CNC router. Powerful system with robust construction, easy-to-use control system, and included software for project customisation. |
Key Features | – Affordable price point – Fast and reliable performance – Robust construction – Intuitive design – Powerful system – Easy-to-use control system – Included software for project customization |
Spartan CNC Router Sizes | Available in 4 x 4 ft, 8 x 4 ft, and 10 x 5 ft sizes. Also available in a smaller model with a 600 x 900 mm bed and larger 2 x 3 m and 2 x 4 m systems. |
Materials Spartan CNC Router can Handle | Soft metals like aluminium and brass, various woods, plastics such as acrylic and plexiglass, polycarbonate, foam board, and composite sign materials like Dibond and Alcubond. |
Applications | Joinery, shopfitting, boat building, product design, cladding, skate ramp production, ply-lining, sign making, engineering, plastic fabrication, general industry, personalised products, and more. |
Model Sizes | – 600 x 900 x 150 mm – 1300 x 1300 x 200 mm – 1300 x 2500 x 200 mm – 1500 x 3000 x 200 mm – 2000 x 3000 x 200 mm Custom bed sizes available |
Other CNC Router Machines | Falcon, Apollo M or Apollo ATC CNC Router Machines. |

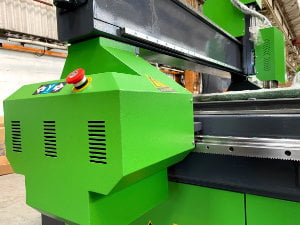

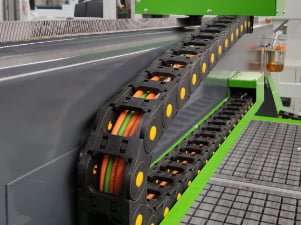

Summary of Spartan CNC Router Range | Spartan CNC Routers use top-notch components for exceptional build quality and high performance. They are versatile and adaptable for a variety of production activities. User-friendly control system strikes a balance between performance and affordability. |
Sure, here’s how you can organize this information into a table:
Again, the exact formatting will depend on the platform you are using to present this information.
Spartan 6090 Standard Features | Information (Single Phase System) |
---|---|

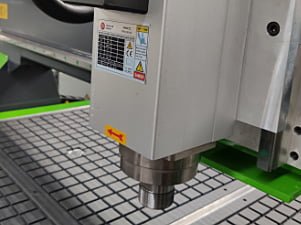

Spindle system | 2.2kW water-cooled spindle with chiller |
Mechanical drive | Ballscrew on XYZ |
Drive system | High-Performance stepper drives |
Control system | NK105 hand controller |
Vacuum bed type | Yes – Matrix Table with T-Slot |
Vacuum system | Yes – including 2.2kW vacuum pump |
Extraction System | Yes |
Software package | Vectric V Carve Pro |

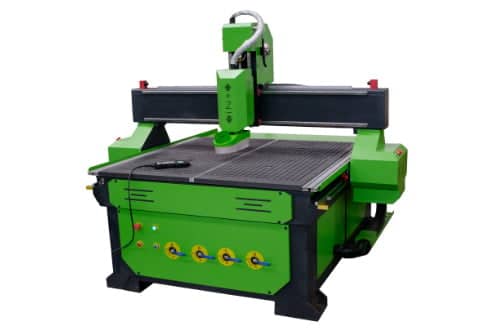

Spartan 1313 Standard Features | Information (Single Phase System) |
---|---|
Spindle system | 3kW water-cooled spindle with chiller |
Mechanical drive | TBI ballscrew on Z, helical rack & pinion on X, Y |
Drive system | High-Performance stepper drives |
Control system | NK105 hand controller |
Vacuum bed type | Yes – Matrix Table with T-Slot |
Vacuum system | Yes – including 2.2kW vacuum pump |
Extraction System | Yes |
Software package | Vectric V Carve Pro |
Spartan 1325 / 1530 (Single Phase) Standard Features | Information (Single Phase Systems) |
---|---|
Spindle system | 4.5kW High-Performance air cooled single phase spindle |
Mechanical drive | TBI ballscrew on Z, helical rack & pinion on X, Y |
Drive system | High-Performance stepper drives |
Control system | NK105 hand controller |
Vacuum bed type | Yes – Matrix Table with T-Slot |
Vacuum system | Yes – including 2.2kW vacuum pumps (qty bed dependant) |
Extraction System | Yes |
Software package | Vectric V Carve Pro |
Spartan 1325 / 1530 / 2030 Standard Features | Information (3-Phase Systems) |
---|---|
Spindle system | 6kW High-Performance air cooled spindle |
Mechanical drive | TBI ballscrew on Z, helical rack & pinion on X, Y |
Drive system | High-Performance stepper drives |
Control system | NK105 hand controller |
Vacuum bed type | Yes – Matrix Table with T-Slot |
Vacuum system | Yes – including 5.5kW vacuum pump (qty bed dependant) |
Extraction System | Yes |
Software package | Vectric V Carve Pro |
Standard bed sizes (mm) |
600 x 900, 1300 x 1300, 1300 x 2500, 1500 x 3000, 2000 x 3000 (Ask for custom bed sizes) |
Spindles |
2.2 – 6kW |
Drive Motors |
High performance stepper motors |
Mechanical Drive |
Ball screw XYZ (6090 model), ball screw on Z, helical rack and pinion on XY (1313 model up) |
Control System |
DSP |
Tool Control |
Manual tool change |
Software |
Vectric V Carve Pro |
Warranty |
12 months parts and labour |
Extra Information |
A versatile CNC router that’s our most affordable system to yet! |
Standard bed sizes (mm) |
1300 x 1300, 1300 x 2500, 1500 x 3000, 2000 x 3000, 2000 x 4000 (Ask for custom bed sizes) |
Spindles |
9.0kW ATC air-cooled |
Drive Motors |
Delta Servo Drives |
Mechanical Drive |
Reciprocating ball screw on Z with a helical rack and pinion on XY |
Control System |
DSP |
Tool Control |
Auto tool change |
Software |
Vectric V Carve Pro |
Warranty |
12 months parts and labour |
Extra Information |
Perfect for customers wanting a high performance machine without the cost. Pop-up location stops |
Standard bed sizes (mm) |
1300 x 1300, 1300 x 2500, 1500 x 3000, 2000 x 3000, 2000 x 4000 (Ask for custom bed sizes) |
Spindles |
7.5kW Air-cooled |
Drive Motors |
Delta Servo Drives |
Mechanical Drive |
Reciprocating ball screw on Z with a helical rack and pinion on XY |
Control System |
M-TECH Motion Control (PC Podium) |
Tool Control |
Manual change (can be upgraded) |
Software |
Vectric V Carve Pro |
Warranty |
2-years parts and labour |
Extra Information |
High-performance CNC router that’s been built like a tank. Upgradable to ATC. Pop-up location stops. |
Standard bed sizes (mm) |
1300 x 1300, 1300 x 2500, 1500 x 3000, 2000 x 3000, 2000 x 4000 (Ask for custom bed sizes) |
Spindles |
9.0kW ATC Air-cooled |
Drive Motors |
Delta Servo Drives |
Mechanical Drive |
Reciprocating ball screw on Z with a helical rack and pinion on XY |
Control System |
M-TECH Motion Control (PC Podium) |
Tool Control |
Full auto tool change |
Software |
Vectric V Carve Pro |
Warranty |
2-years parts and labour |
Extra Information |
High-performance CNC router that’s been built like a tank with full automatic tool change. Pop-up location stops |
Standard bed sizes (mm) |
1300 x 2500, 1500 x 3000, 2000 x 3000, 2000 x 4000 (Ask for custom bed sizes) |
Spindles |
9.0kW ATC Air-cooled 0-180 degree 4-axis |
Drive Motors |
Yaskawa or Maxsine Servo Drives |
Mechanical Drive |
Reciprocating ball screw on Z with a helical rack and pinion on XY |
Control System |
Syntec Control |
Tool Control |
Full auto tool change |
Software |
Alphacam |
Warranty |
2-years parts and labour |
Extra Information |
High-performance 4-axis ATC CNC Router with 0-180 degrees of machining power. Pop-up location stops |
