Large Format, High-Speed Digital Cutting Machines
In our spacious Halesowen-based facility, which spans 32,000 square feet, we rigorously evaluate every Digital Cutting Machine to ensure it meets the highest quality criteria. We offer an extensive array of Digital Cutting Tables, customisable with features like various cutting heads, multiple bed options, and advanced camera systems. Mantech ensures the durability of these machines by offering warranties that can last from one year up to five years, tailored to your business needs. For added assurance, we also extend the option for additional warranty coverage and maintenance services on-site.
DCT Model BK03II-2516RM
A static bed digital cutting machine includes a single tool that’s functional, high speed and extremely affordable.
DCT Model CB03
The bigger brother to the BK series, this range of digital cutting machines is complete with an automatic feed bed.
DCT Model CB08
Looking for a higher-capacity machine meant for large production runs? Then the CBL08 is the machine for you.

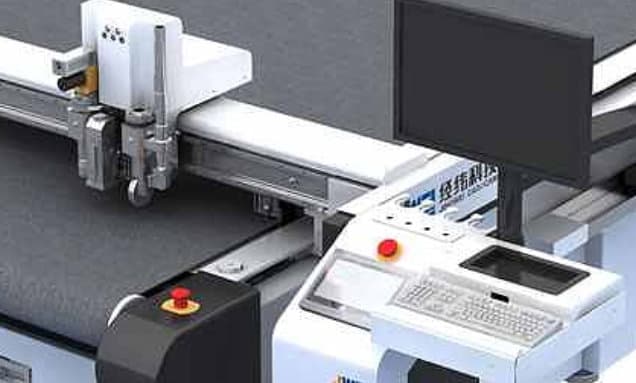

What is a Digital Cutting Table (Cutter Plotter)
DCT High-Speed Digital Cutting Machines are advanced cutting machines that utilise digital technology to cut materials such as foam, rubber, plastic, paper, fabrics, cardboard, reboard, carbon fibre fabric and more. These machines are designed to be fast and accurate, with cutting speeds of up to 1200mm/s. They are also highly efficient, with a cutting accuracy of up to 0.01mm.
How do Digital Cutting Machines Work?
DCT High-Speed Digital Cutting Machines utilise a digital control system to cut materials. The control system uses CAD/CAM software to create cutting designs, which are then sent to the cutting machine. The machine uses a high-speed servo motor to move the cutting head, which is equipped with a high-precision cutting tool. The cutting tool is able to cut through materials with high precision and speed.
A digital cutting table is primarily used in:
sample production, packaging, display, signage and fabrics, printers and composite sheet fabric like Kevlar. They are also used widely in the gasket market making short work of complex shapes all at high speed.
Benefits of DCT high-speed digital cutting machines:
Increased efficiency
DCT High-Speed Digital Cutting Machines are designed to increase efficiency in industrial settings. With cutting speeds of up to 1200mm/s and high cutting accuracy of up to 0.01mm, these machines are able to cut materials quickly and accurately. The automatic material feeding and cutting feature also ensures that the cutting process is continuous, without the need for manual intervention.
Reduced production time and costs
By using DCT High-Speed Digital Cutting Machines, manufacturers are able to reduce production time and costs. The high cutting speed and accuracy of these machines allow for faster and more efficient cutting of materials, resulting in reduced production time. Additionally, the automatic material feeding and cutting feature reduces the need for manual labour, resulting in cost savings.
Increased cutting precision
DCT High-Speed Digital Cutting Machines are designed to provide high cutting precision. With a cutting accuracy of up to 0.01mm, these machines are able to cut materials with high precision and consistency. This is particularly important in industries that require precise cutting of materials, such as the automotive and aerospace industries.
Flexibility
The digital control system and CAD/CAM software used by DCT High-Speed Digital Cutting Machines allow for customisable cutting designs. This means that manufacturers are able to create cutting designs that meet their specific needs and requirements. The multiple cutting heads also provide increased flexibility in your production process.
Key Features of Digital Cutting Machines
- High cutting speeds of up to 1200 mm/s
- High cutting accuracy of up to 0.01 mm
- Digital control system with CAD/CAM software
- High precision tool cutting
- Can have auto material feeding and cutting
- Multiple cutting heads for maximum efficiency
What do we mean by customisable?
Digital Cutting Table Machines can be configured with a large range of different tools to make your manufacturing process as streamlined as possible
Our digital cutting tables come in a wide range of bed sizes that will cater for most needs. However, should you need a custom-sized machine we can also have the ability to produce custom dimensions.
Types Of DCT Tooling We Offer:
Oscillating Cutting Tool
different options are available:
standard
electric
Commonly used to cut and process materials such as corrugated board, honeycomb board, fluted core such as correx, flexo plates, KT panel, foam board such as Foamex, carpet, corrugated plastics, thin plastics like HIPS, PP sheet, gaskets, leather and flexo glass.
standard
electric
Commonly used to cut and process materials such as corrugated board, honeycomb board, fluted core such as correx, flexo plates, KT panel, foam board such as Foamex, carpet, corrugated plastics, thin plastics like HIPS, PP sheet, gaskets, leather and flexo glass.
Creasing Wheel
Primarily used to crease cardboard, and the likes of fluted board like Correx, ready to be folded into shapes for packaging.
Optical Recognition
Optical recognition systems are especially valuable when you have already printed onto your substrate, such as UV printing cardboard displays that are shaped and require to be cut out.
The camera system optically recognises the pre-printed registration marks, this information is used in combination with a cut path in your file. The final project is accurately cut out of your substrate.
The camera system optically recognises the pre-printed registration marks, this information is used in combination with a cut path in your file. The final project is accurately cut out of your substrate.
Multi Angled V Cut Tool
Perfect for cutting honeycomb, greyboard and reboard.
This tool has a variable blade that can be angled in such a way that allows you to fold at angles cut at 0,15,22.5,30 and 45 degrees.
This tool has a variable blade that can be angled in such a way that allows you to fold at angles cut at 0,15,22.5,30 and 45 degrees.
Plotting Pen
The plotting pen attachment is perfect for sketching/marking out designs onto materials with high accuracy and speed.
Router Engraving Head
We can also configure our Digital Cutting Tables with a router tool.
This enables you to not only process your standard materials but also cut acrylic, dibond/acm board, MDF, epoxy panels, PVC board, PAL board and wood. Material dependant, you can cut up-to 15mm.
Kiss Cut Tool
Perfect for processing thin multi-layered materials such as printed vinyl, vinyl, reflective vinyl and magnetic sheets (can also be pr-printed).
Electric Rotary Tool
Our Rotary tool is the perfect companion to process fabrics, carbon fibre/glass fibre, fur, grid cloth, textiles, banner/flag materials. This tool can process up to 8mm in thickness.
Perforation Tool
For producing perforations along materials. For example a tissue box where you can remove the lid or a pet biscuit box – pressing the side away to enable you to pour out the contents.
Technical Parameters BK03II-2516RM Range
| BK Range Technical Parameters | |
|---|---|
| Multi-functional tool head | Oscillating cutting knife /Kiss cut/LED cursor location light |
| Safety system | Infrared sensors to prevent unsafe operation |
| Moving speed | Up-to 1200mm/s |
| Cutting speed | Up-to 800mm/s |
| Cutting thickness | Up-to 22mm (material dependant) |
| Cutting table type | Static bed |
| Vacuum Bed | Yes |
| Repeat accuracy | ≤0.01mm |
| Buffer memory | 2G |
| Transmission system | Digital servo driver, straight rail synchronous belt |
| Command system | HP-GL compatible format |
| Power Supply | 380V±10% 3 Phase 32 amp supply on Machine Rated ‘D’ Breaker |
| BK Range Cutting Area | BK03II-1816 | BK03II-2516RM |
|---|---|---|
| Cutting area options | 1800mm*1600mm | 2500mm*1600mm |
Technical Parameters CB03II Range
| CB03 Range Technical Parameters | |
|---|---|
| Multi-functional tool head | Oscillating cutting knife /Kiss cut/LED cursor location light, engraving/router (optional), creasing wheel, camera recognition (optional) |
| Safety system | Infrared sensors to prevent unsafe operation |
| Moving speed | Up-to 1500mm/s |
| Cutting speed | Up to 1200mm/s |
| Cutting thickness | Up to 50mm (material dependent) |
| Cutting table type | Auto feed bed system |
| Vacuum Bed | Yes |
| Repeat accuracy | ≤0.01mm |
| Buffer memory | 2G |
| Transmission system | Digital servo driver, straight rail, synchronous belt, guide screw |
| Command system | HP-GL compatible format |
| Power Supply | 380V±10% 3 Phase 32 amp supply on Machine Rated ‘D’ Breaker |
| CB03II Range Cutting Area | |
|---|---|
| CB03II-2513RM | 2500mm*1300mm |
| CB03II-2516RM | 2500mm*1600mm |
| CB03II-1113 | 1100mm*1300mm |
| CB03II-1816RM | 1800mm*1600mm |
Technical Parameters CB08II Range
| CB08 Range Technical Parameters | |
|---|---|
| Multi-functional tool head | Oscillating cutting knife /Kiss cut/LED cursor location light, engraving/router (optional), creasing wheel, camera recognition (optional) |
| Safety system | Infrared sensors to prevent unsafe operation |
| Moving speed | Up-to 1500mm/s |
| Cutting speed | Up-to 1200mm/s |
| Cutting thickness | Up to 50mm (material dependent) |
| Cutting table type | Auto feed bed system |
| Vacuum Bed | Yes |
| Repeat accuracy | ≤0.01mm |
| Buffer memory | 2G |
| Transmission system | Digital servo driver, straight rail, synchronous belt, guide screw |
| Command system | HP-GL compatible format |
| Power Supply | 380V±10% 3 Phase 32 amp supply on Machine Rated ‘D’ Breaker |
| CB08II Range Cutting Area | |
|---|---|
| CB08II-2516PM | 2500mm*1600mm |
| CB08II-3516PM | 3500mm*1600mm |
| CB08II-5516PM | 5500mm*1600mm |
| CB08II-2520PM | 2500mm*2000mm |
| CB08II-3520PM | 3500mm*2000mm |
| CB08II-5520PM | 5500mm*2000mm |
| CB08II-3032PM | 3000mm*3200mm |

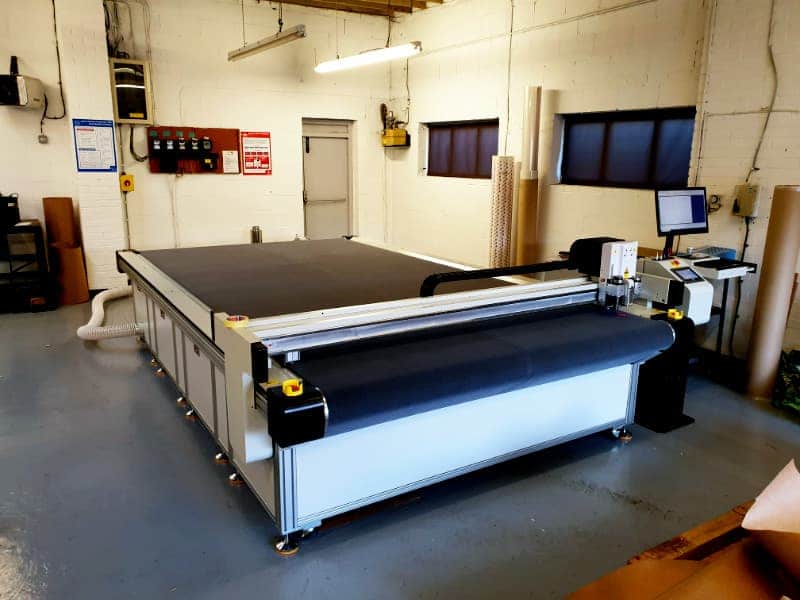

Customer Installations
