The UK’s Leading CNC Router Specialists. Dual Bed CNC Routers
Increased productivity with one of our Dual Pendulum CNC Router Systems.
Full UK Warranty
Delivery & Install Included

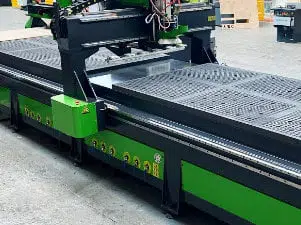

Dual Bed Design
Syntec Control System
Increased Productivity

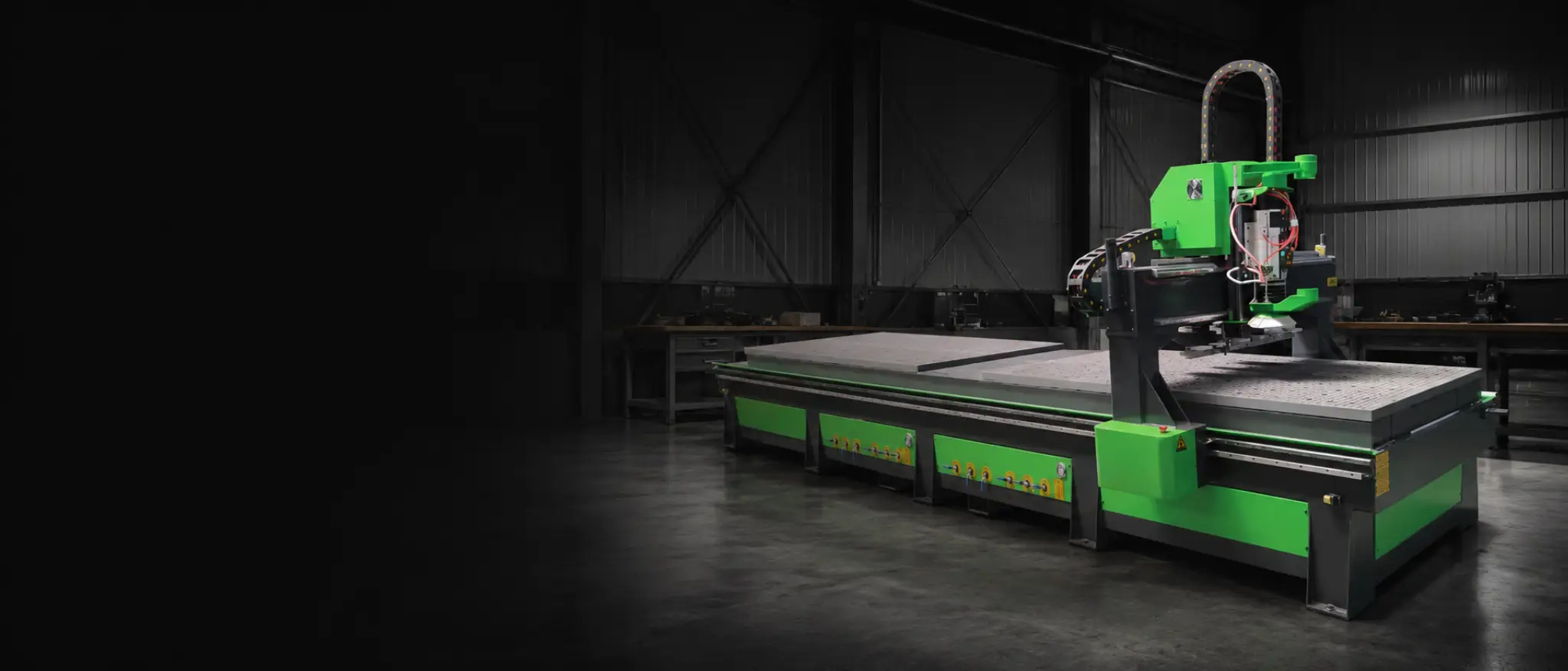

Dual Bed Pendulum CNC Routers For Increased Productivity

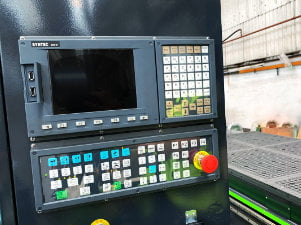

Syntec Control
A world-renowned brand, we utilise the Syntec control system for operational control.
Software Included
We supply Vectric V Carve Pro with all of our Dual Bed CNC Routers, Industry-leading software that’s easy to use.

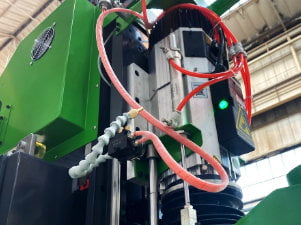

Powerful Spindles
At the heart of the Dual Bed CNC Router is an air-cooled 9kW high-performance HQD auto tool change spindle.
Double Productivity
Dual Bed Pendulum systems offer twice the processing area, enabling you to load one bed whilst the other is in production.
Powerful Vacuum
Powerful vacuum systems enable efficient holding of materials. Vacuum pump/s included (qty is a model dependant).

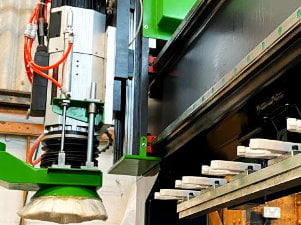

Gantry Mounted Tool Change
Dynamic, quick change ‘Gantry Mounted’ Tool Rack with positions ranging from 6-10.
Industrial Build
Industrial build quality, enabling first-class output and longevity with this robust CNC Router system.
Servo Driven
The Dual Bed uses Hybrid Drives and offers extremely accurate positional performance.
Exceptional Service
Our 5-star after-sales service is UK based and available to all of our customers if needed. Lifetime technical support via email and telephone.
24 Months Warranty
All Dual CNC routers come with our excellent 24 months parts & labour warranty.
Dual Bed (Pendulum) CNC Router Overview
| Topic | Details |
|---|---|
| Introduction to Dual Bed ATC CNC Router Range | These are pendulum-based twin-bed CNC routers designed to increase productivity and output by allowing processing on one half of the CNC router while loading the other bed. |
| Key Features | The routers feature a fast auto tool change located under the bridge for increased productivity, dual 1300mm x 2500mm bed ‘Pendulum Processing’ production capability, and perimeter fencing with infrared beam operator protection. |
| Service | The CNC routers aim to increase output, reduce customer wait times, and ultimately increase turnover. |
| Applications | Perfect for woodworking, joinery, sign making, engineering, fabrication, general industry, personalised products, automotive, aerospace, marine engineering, furniture production and more. |
| Common Tasks | Optimised for factory-based production and time-sensitive production. |
| Dual Bed ATC Vs Other CNC Routers | The Dual Bed ATC CNC routers offer a pendulum-based system that allows for simultaneous loading and processing, perfect for higher production customers or those looking to maximize their production times. |
| Materials Dual Bed ATC CNC Router Can Handle | Capable of processing Corian and similar acrylic-based composites, acrylics, plastics, HDPE, Dibond–aluminium composites, soft metals like aluminium, brass, lead etc., foam and foam board, TRESPA, polystyrene, wood composites, rubber, Tufnol, vermiculite sheet, fibre board and so much more. |
| Summary of Dual Bed ATC CNC Router Range | The Industrial Dual Bed ATC CNC Routers are designed to enhance shift productivity by allowing simultaneous loading and processing. Ideal for high-production customers or those seeking to maximise their production times. |

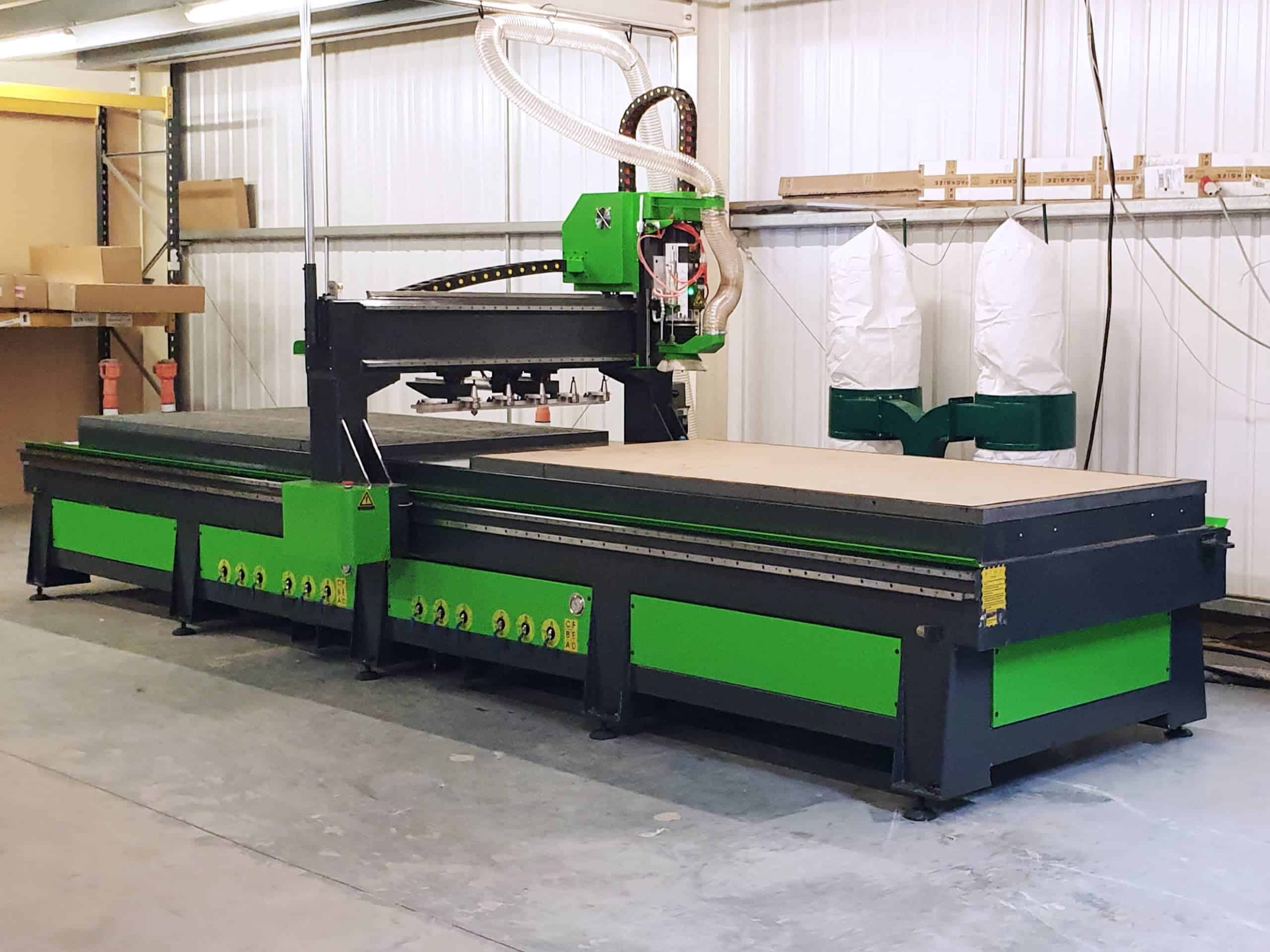

Dual Bed CNC Router – Robust Build Quality, High Productivity.
Industrial Dual Bed ATC CNC Routers for all types of industries.

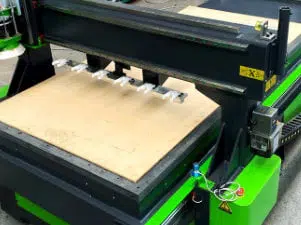

Our Pendulum-based twin-bed CNC routers are an excellent option to increase your productivity and output.
You can process on one half of the CNC router and load the other bed using our pendulum system. With its fast auto tool change (located under the bridge), productivity is further increased.
By using our CNC routers, you can increase your output, reduce customer wait times, and ultimately increase your turnover. Our CNC routers are suitable for:
factory-based production
time-sensitive production
They feature a dynamic gantry-based auto tool change for speedy tool changes, dual 1300mm x 2500mm bed ‘Pendulum Processing’ production capability, and perimeter fencing with infrared beam operator protection.
You can process on one half of the CNC router and load the other bed using our pendulum system. With its fast auto tool change (located under the bridge), productivity is further increased.
By using our CNC routers, you can increase your output, reduce customer wait times, and ultimately increase your turnover. Our CNC routers are suitable for:
factory-based production
time-sensitive production
They feature a dynamic gantry-based auto tool change for speedy tool changes, dual 1300mm x 2500mm bed ‘Pendulum Processing’ production capability, and perimeter fencing with infrared beam operator protection.
Perfect for
What materials can you cut?
Dual Bed ATC CNC Router range in summary
This industrial CNC routing solution can increase your shift productivity by utilising a pendulum-based system that allows for loading on one side whilst the machine is processing the other bed.
Perfect for higher production customers or those looking to maximise their production times.
Perfect for higher production customers or those looking to maximise their production times.
Dual Bed CNC Router Features
Impressive dual bed functionality offers customers a high productivty option for their maunfacturing process.
Mantech Engineering Team
| Dual Bed CNC Standard Features | Information |
|---|---|
| Spindle system | 9.0KW ER32 air-cooled spindle system up to 24,000 rpm. Dynamic, quick change ‘Gantry Mounted’ Tool Rack with positions ranging from 6-10. |
| Material location | Pneumatic pop-up and end-stop system for material location. |
| Mechanical drive | Helical rack and pinion, reciprocating ball screw drives. |
| Drive system | High-speed hybrid servo motor |
| Linear guide rails/carriers | HIWIN oil inject centralised linear rail lubrication. |
| Control system | Syntec Multi-Axis Control with ‘Wireless’ Remote Manual Pulse Generator |
| Vacuum bed type | Yes – Matrix Table (dual bed system) |
| Vacuum system | Yes – including 5.5kW vacuum pump (s) qty is bed size dependant. |
| Extraction System | Yes |
| Software package | Vectric V Carve Pro |
Get in touch today!
Buying a CNC Router is a big step for any business and you want to know you’re purchasing the right machine that matches your business needs. This is where our Technical Sales team will help you make the right choice.
Why not give us a call on 0121 541 1444
*Offloading and siting of the machine is the end user’s responsibility, we will, however, advise all of our customers should they need assistance with this.
Why not give us a call on 0121 541 1444
*Offloading and siting of the machine is the end user’s responsibility, we will, however, advise all of our customers should they need assistance with this.
Articles:
Compare our most popular CNC Routers
Find the perfect fit for you and your business.
Bottom Line
Upgrades

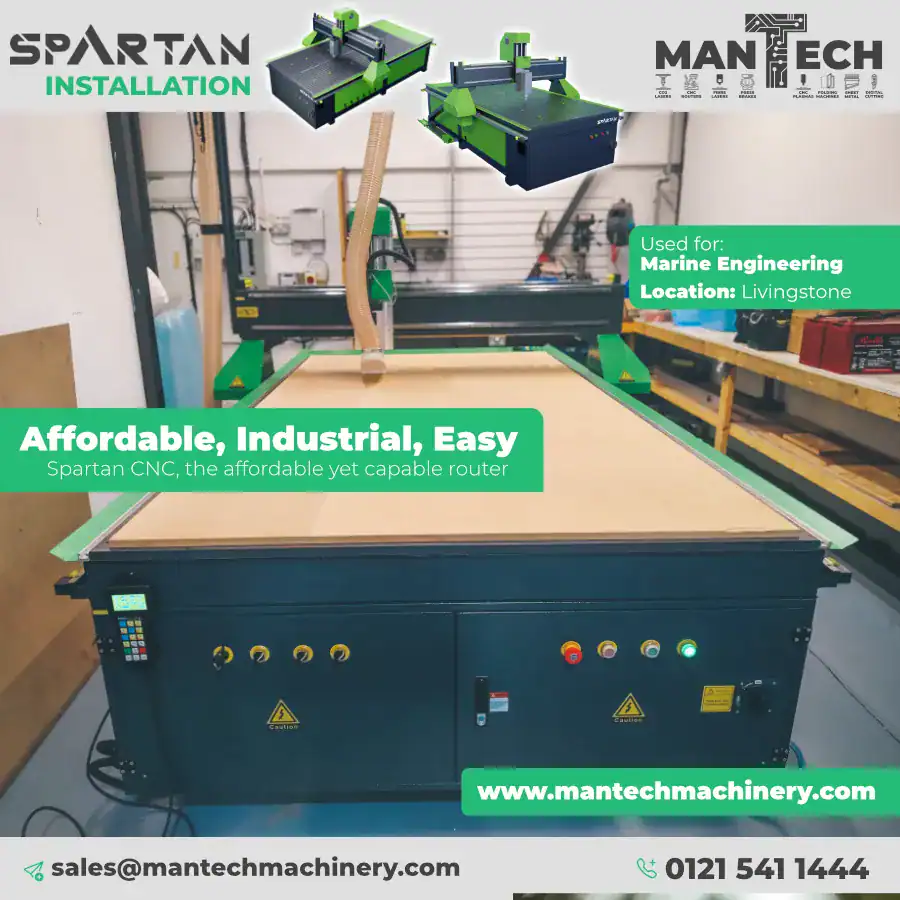

spartan cnc routers
1
An Affordable industrial CNC
Easy-to-use and beginner-friendly control systems
Main features
- Standard Bed sizes (mm) – 600 x 900 | 1300 x 1300 | 1300 x 2500 | 1500 x 3000 | 2000 x 3000
. - 2.2 – 6.0kW performance spindles with the 2.2kW & 3.0kW being water chilledard
. - High-performance stepper drive systems offer great performance
. - Mechanical drive: ball screw XYZ (6090), TBI ballscrew on Z with helical rack and pinion on XY (1313 upwards)
. - Linear guide rails/carriers: HIWIN oil inject centralised linear rails/lubrication
- .
- DSP NK105 hand control system for simple and reliable operation
. - Matrix vacuum system included
. - Extraction included
. - Vectric V Carve Pro software is included. Vectric Aspire optional
. - Delivery and installation included
. - Free lifetime support via phone/email
. - 12 months parts and labour warranty (ask about our extended warranty periods)
Bottom Line
Affordable easy-to-use entry-level industrial CNC Router. Perfect for a wide range of customers, regardless of their industry.
This versatile CNC router is our most price-competitive system to date.
As the Spartan is also part of our ‘1,2,3’ Buy Back trade-in scheme (ask for details) you can buy with confidence knowing that if you decide that you have outgrown the system within the first 3 years you can upgrade to one of our more feature-rich models.
Upgrades
+ Tooling packs+ MDF/fine dust extraction filters

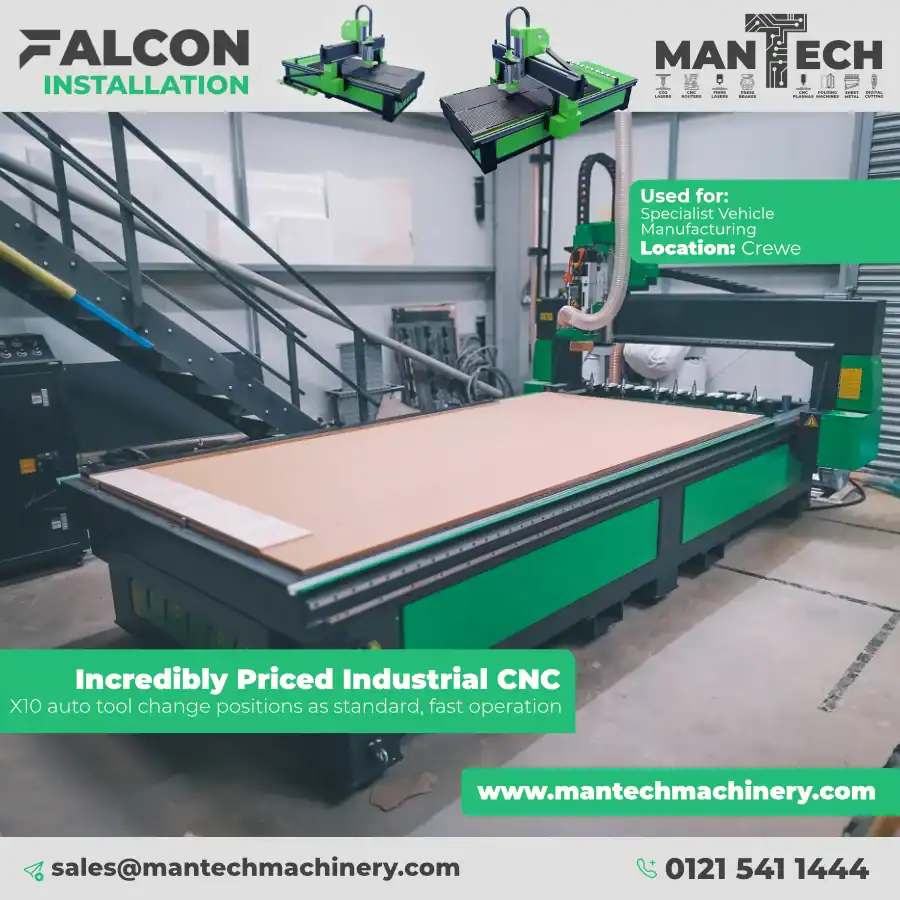

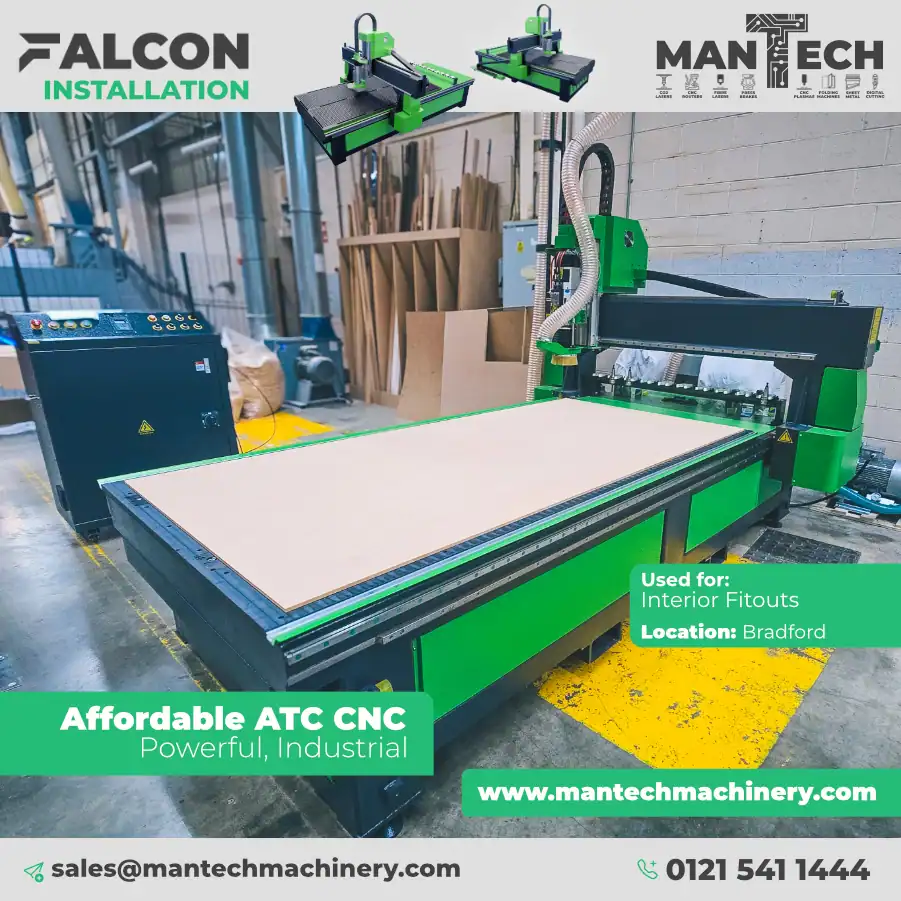

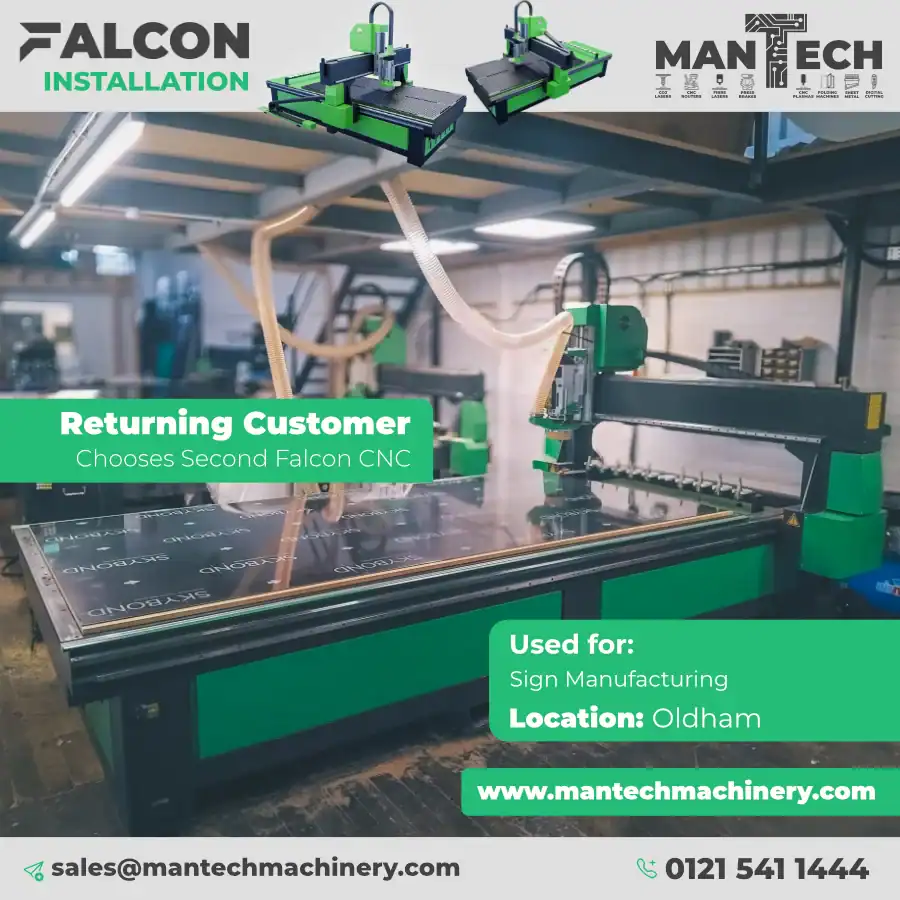

falcon atc cnc routers
2
Unbeatable Value ATC
Competitive pricing and a beginner-friendly control system
Main features
- Standard Bed sizes (mm) – 1300 x 1300 | 1300 x 2500 | 1500 x 3000 | 2000 x 3000 | 2000 x 4000 (Custom sizes available)
. - 9.0kW high-performance air-cooled spindles
. - Delta servo drive systems with exceptional performance and lower power consumption
. - Mechanical drive: helical rack & pinion XY with reciprocating ball screw on the Z axis
. - Linear guide rails/carriers: HIWIN oil inject centralised linear rails/lubrication
. - Easy to use DSP control system making it perfect for new CNC router operators
. - 8-tool positions with upgrades to a 16-tool position system available
. - Pop-up pneumatic material positioning stops
. - Matrix vacuum system included
. - Vectric V Carve Pro software included, Vectric Aspire optional
. - Delivery & installation
. - Free lifetime support via phone/email
. - 12 months parts and labour warranty (ask about our extended warranty periods)
Bottom Line
The Falcon CNC Router range is perfect for customers wanting a competitively priced, high-performance CNC machine that still offers automatic tool change functionality. Competitive pricing, easy-to-use control systems and built with longevity in mind with its robust build quality.
With full fast auto tool change capability, the Falcon allows for further increases in manufacturing productivity.
Extras like pneumatic pop-up material positioning stops and full Delta servo drives are the icing on the cake.
Upgrades
+ Tooling packs+ MDF/fine dust extraction filters
+ Additional tool positions
+ Optional drill bank, oscillating cutting knife solutions (factory order and runs on Syntec control instead of DSP)
apollo M cnc routers
3
High-Performance CNC
Fully featured professional CNC router machines
Main features
- Standard Bed sizes (mm) – 1300 x 1300 | 1300 x 2500 | 1500 x 3000 | 2000 x 3000 | 2000 4000 (Custom sizes available)
. - 7.5kW high-performance air-cooled spindles
. - Delta servo drive systems with exceptional performance and lower power consumption
. - Mechanical drive: helical rack & pinion XY with reciprocating ball screw on the Z axis
. - Linear guide rails/carriers: HIWIN oil inject centralised linear rails/lubrication
. - Control system: our advanced in-house developed M-TECH CNC motion control with touch screen and wireless MPG pendant
. - Pop-up pneumatic material positioning stops
. - Matrix vacuum system included
. - Extraction included
. - Vectric V Carve Pro software included Vectric Aspire and AlphaCAM optional
. - Delivery & installation
. - Free lifetime support via phone/email
. - 2 years parts and labour warranty (ask about our extended warranty periods)
Bottom Line
The Apollo M CNC router offers high performance alongside our in-house developed M-TECH CNC Motion Control System. A fully featured professional CNC router!Perfect for customers wanting the very best in control, build and functionality but without the need for auto tool change. That doesn’t mean you’re stuck with a non-ATC machine though, in fact, the Apollo is fully upgradeable to an Apollo ATC at any point in the future!
A fully featured system with full touch screen functionality, pneumatic pop-up material positioning stops and impressive performance.
Upgrades
+ Tooling packs+ MDF/fine dust extraction filters
+ Fully upgradeable to automatic tool change at any point in the future
+ Camera system for recognising pre-printed registration marks (perfect for sign-making)
apollo atc cnc routers
4
Powerful ATC Routers
Impressive, fully-featured ATC CNC Routers
Main features
- Standard Bed sizes (mm) – 1300 x 1300 | 1300 x 2500 | 1500 x 3000 | 2000 x 3000 | 2000 x 4000 (Custom sizes available)
. - 9.0kW (12hp) ER32 high-performance air cooled spindles
. - Auto tool change functions with 8 X ISO 30 tool positions as standard (more positions available upon request)
. - Delta servo drive systems with exceptional performance and lower power consumption
. - Mechanical drive: helical rack & pinion XY with reciprocating ball screw on the Z axis
. - Linear guide rails/carriers: HIWIN oil inject centralised linear rails/lubrication
. - Control system: our advanced in-house developed M-TECH CNC motion control with touch screen and wireless MPG pendant
. - Pop-up pneumatic material positioning stops
. - Matrix vacuum system included
. - Extraction included
- Vectric V Carve Pro software included Vectric Aspire and AlphaCAM optional
. - Delivery & installation
. - Free lifetime support via phone/email
. - 2 years parts and labour warranty (ask about our extended warranty periods)
Bottom Line
Our most intelligent industrial CNC router includes a raft of high-end features yet still manages to be incredibly well-priced.With the full power of our in-house developed M-TECH CNC Motion Control System alongside powerful components such as the 9kW Auto Tool Change, air cooled spindle, customers can expect the very best performance.
With its ‘tank-like’ industrial build quality the Apollo ATC is built for even the most demanding of workshop environments.
A superb CNC Router system for any industry.
Upgrades
+ Tooling packs+ MDF/fine dust extraction filters
+ Camera system for recognising pre-printed registration marks (perfect for sign-making)
