Precision Bevel Cutting with SF Tube Fibre Laser Cutters.
Precision 0-45° Bevel Cutting
Unmatched Versatility for Various Profiles
High-Performance Cutting with Maximum Efficiency
Full UK Warranty
Delivery Included
Installation Included
0-45° Bevel Cutting
350mm Diameter Max (Round Tube)
0-45˚ Bevel Tube Fibre Laser Cutter - Precision Cutting Up to 350mm Dia
Overview and Features
| SF Bevel Cut Tube Laser Datasheet | Description |
|---|---|
| SF6024GT | |
| Capacity | 6-meter standard with seven available as an option |
| Chuck System | Pneumatic chuck system |
| Laser Power Options | 3kW | 4kW | 6kW options |
| Pipe Processing Range (Round Tube) | φ10-φ230mm |
| Pipe Processing (Square Tube) | 10×10-230×230mm |
| Positioning Accuracy (X,Y axis) | ±0.05 |
| Repeat Positioning Accuracy (X,Y axis) | ±0.03 mm |
| Max Chuck Speed | 100 r/min |
| Max Acceleration | 0.8G |
| Max Table Load | 250kg |
| Safety Enclosure | Yes – safety enclosure to protect your operators from any stray beams and to aid in the safe extraction of cutting vapour. Safety fencing options. |
| Laser Cutting Head | Raytools - Autofocus |
| Servo Drives | High-accuracy servo-driven system |
| Dual Channel Water Chiller | Yes - S&A CWFL Series (model is power dependant) |
| CNC Controller | Cypcut/Cyptube |
| Software Included | Cyptube/Tubest 3D Nesting |
| Consumables | Yes - set of protective lens, focus lens, and nozzle pack supplied (additional available to purchase) |
| Power requirements | 3 Phase AC 380V 50HZ |
| Delivery and installation | Included (offloading and positioning are available upon request). Installation and training included |
| SF 6035GT | |
| Capacity | 6-meter standard with seven available as an option |
| Chuck System | Pneumatic chuck system |
| Laser Power Options | 3kW | 4kW | 6kW options |
| Pipe Processing Range (Round Tube) | φ20-φ350mm |
| Pipe Processing (Square Tube) | 20×20-350×350mm |
| Positioning Accuracy (X,Y axis) | ±0.05 |
| Repeat Positioning Accuracy (X,Y axis) | ±0.03 mm |
| Max Chuck Speed | 60 r/min |
| Max Acceleration | 0.6G |
| Max Table Load | 1000kg |
| Safety Enclosure | Yes – safety enclosure to protect your operators from any stray beams and to aid in the safe extraction of cutting vapour. Safety fencing options. |
| Laser Cutting Head | Raytools - Autofocus |
| Servo Drives | High-accuracy servo-driven system |
| Dual Channel Water Chiller | Yes - S&A CWFL Series (model is power dependant) |
| CNC Controller | Cypcut/Cyptube |
| Software Included | Cyptube/Tubest 3D Nesting |
| Consumables | Yes - set of protective lens, focus lens, and nozzle pack supplied (additional available to purchase) |
| Power requirements | 3 Phase AC 380V 50HZ |
| Delivery and installation | Included (offloading and positioning are available upon request). Installation and training included |
| Chiller Dimensions | (S&A Model) |
| Length | 550 mm |
| Depth | 770 mm |
| Height | 1030 mm |
| Weight | Appx 95kg |
Why Choose The SF 6000GT Tube Fibre Laser Range?
The SF 6000GT Bevel Tube Fibre Laser Cutter is engineered for businesses that require precision, versatility, and efficiency in tube processing. Designed for industries such as construction, oil & gas, and metal fabrication, this advanced system offers 0-45° bevel cutting, enabling intricate designs and weld-ready edges with maximum accuracy. It supports tube lengths of up to 6 meters and outer diameters up to 350mm, making it ideal for demanding applications requiring high-performance cutting.
Precision Bevel Cutting for Complex Fabrication
With laser power options ranging from 3kW to 6kW, the SF 6000GT ensures exceptional cutting accuracy across various materials. Its Cypcut and Cyptube control systems streamline workflow, reduce material waste, and allow for fast, efficient production cycles. Whether handling large-scale industrial projects or intricate components, this system is built to deliver consistent, high-quality results.
Advanced Bevel Cut Control System for Seamless Operation
The SF 6000GT features a state-of-the-art bevel control system, ensuring precise cutting angles while maintaining optimal edge quality. This cutting-edge system enables clean, weld-ready finishes, reducing the need for secondary processing and increasing manufacturing efficiency.

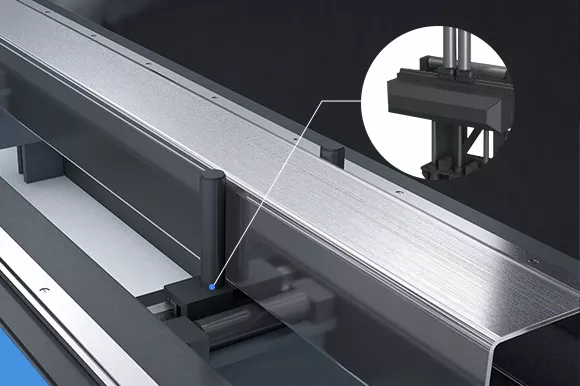

Versatile Floating Alignment System
Designed for seamless adaptation to varying tube diameters, the SF 6000GT’s automatic alignment system ensures perfect chuck-centre positioning, enhancing vertical accuracy. This floating support system stabilises tubes during cutting, eliminating misalignment and ensuring consistent, high-quality results.
Training & Delivery Included
All of our SF Fibre Laser Cutters include standard UK mainland delivery and comprehensive operator training to ensure you get the most out of your machine. From installation to hands-on software training, we provide everything you need to start cutting with confidence.
| Metals |
|---|
| Stainless Steel |
| Mild and Carbon Steel |
| Copper |
| Brass |
| Aluminium |
| Titanium |
