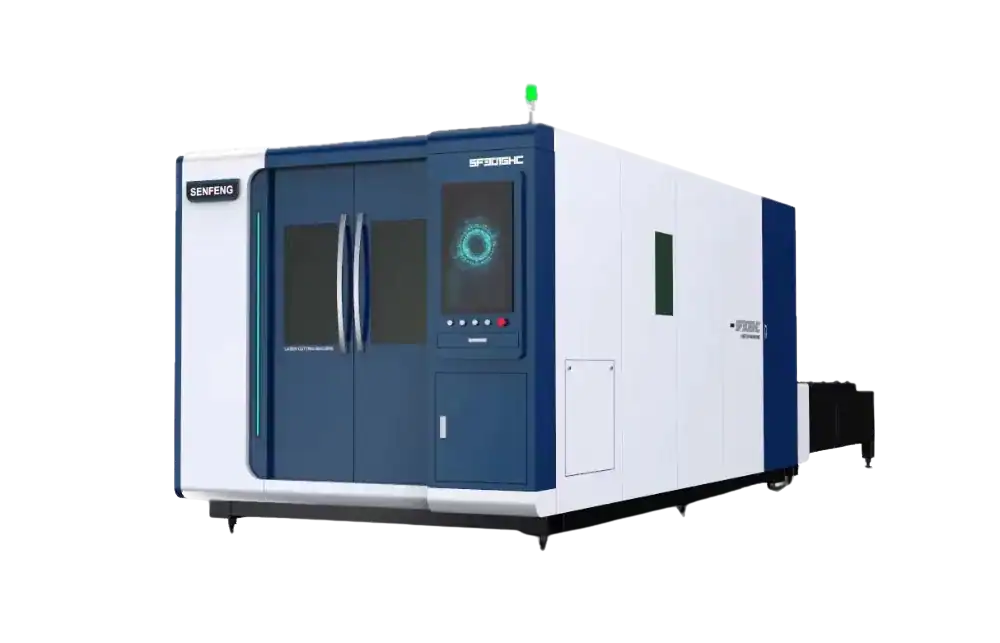

High Performance Fibre Laser Cutters With Powerful 1.5-6kW Options.
One of our most popular Fibre Laser Cutters, the SF 3015HC, is perfect for customers who only require powers up to 6kW.
Brochure RequestVersatile Fibre Laser
The SF 3015HC is a true production powerhouse, featuring dual shuttle exchange tables with dimensions of 3050 x 1530 mm. This design ensures maximum efficiency, as while the machine is cutting, the rear table can be simultaneously loaded or unloaded, keeping production seamless and continuous.
Powerful Cutting
Available with a range of cutting options from 1.5 to 6kW, the SF 3015HC is designed for reliable and efficient production. It delivers precise, consistent cuts across a variety of materials with impressive speed. With its robust design and advanced technology, this machine ensures dependable performance in demanding industrial settings.
Capable Industrial Machinery
This machine is ideally suited for industries like sheet metal, aviation, electronics, automotive, and beyond. Renowned for its high precision, speed, and versatility, it has become an indispensable asset for meeting the demands of modern manufacturing.
Full UK Warranty
Delivery Included
Installation Included
1-6kW Options
Exceptional Service
With an Efficient Footprint, this High Performance Fibre Laser is a Perfect Choice - Shuttle Exchange Tables Included.
The SF3015H C Gen Fibre Laser Cutter is a highly advanced and versatile machine designed for a wide range of industrial applications. It efficiently cuts materials such as mild steel, stainless steel, aluminium alloy, and brass with precision
Easy-to-use control and software
The SF fibre laser range uses the powerful Cypcut PC-based control system. This easy-to-use CAD/CAM package is fully integrated, allowing you to control all aspects of the machine for the cutting process.
Versatile Cutting Options
With a range of versatile powers available to customers from 1.5, 2, 3, 4 and 6kW, the SF3015HC is a formidable Fibre Laser Cutter, offering impressive performance and capability.
Auto focus cutting system
RayTools cutting heads, which are standard on our machines, feature built-in capacitance height sensors and autofocus, making it easy to switch between cutting different materials.
Fully Enclosed System for Safety
Spacious 3000 x 1500 mm Cutting Table
Full Control With The Included PC System
Integrated Parts retrieval and Scrap Drawer
Powerful Cutting Options of 1.5-3kW (Single Phase up to 2kW)
Full safety enclosure
All of our SF fibre laser cutters are fully enclosed for the safety of the operator and other staff that may be working in the vicinity. Metal dust particulates and light radiation are minimised, ensuring a safe working environment.
CE-rated viewing panels
Our systems are configured with built-in safety windows, enabling the operator and or other staff to view the cutting zone without the risk of eye damage.
First class service and support
Our service team comprises of 5 full time telephone support engineers and a team of almost 20 service engineers, ensuring you're in great hands. You also have access to our support portal for easy access to guides and support.
Features &. Overview of the SF 3015HC Medium Powered Fibre Laser
Features at a glance. The SF 3015HC is the perfect machine for firms looking for a fully featured industrial fibre laser.
Easy to Operate
The SF Fibre Laser has easy-to-use controls via a Windows-based PC system (included) and a handheld remote control pendant system. Our Windows-based system seamlessly integrates networking, cloud storage, and third-party apps.
Upgradable Power
The SF 3015HC Fibre Laser Cutter range offers cutting powers from 1.5 to 6kW, catering to diverse operational needs. This versatility ensures that there’s a solution for a wide range of cutting applications.
Dual Shuttle Exchange Tables
The SF 3015HC, with its dual shuttle exchange tables, greatly enhances manufacturing efficiency and productivity. This setup allows for continuous operation, enabling material loading and unloading without interrupting the cutting process, resulting in notable gains in throughput.
Efficient Footprint
The SF 3015HC features a space-efficient footprint, offering a compact design while retaining generous cutting dimensions of 3000 x 1500 mm. This makes it an excellent choice for customers with limited space who require a versatile and reliable tool to meet their fabrication needs.
Fast File Handling
The powerful Cypcut control software allows DXFs to be loaded directly onto the laser without needing a post-processor. This enables quick cutting in seconds, reducing programming time significantly for prototyping and one-offs.
Dual Circuit Chiller
Every one of our fibre lasers is equipped with an S&A chiller featuring dual temperature control, ensuring optimal cooling for both the power source and optics throughout the cutting process.
Handheld Remote
The wireless handheld remote provides a range of functions, including head movement, shutter control, assist gas adjustment, speed setting changes, and more.
Auto Focus
Our machines come standard with RayTools cutting heads, equipped with a built-in capacitance height sensor and autofocus, ensuring seamless transitions between different materials.
Fully Enclosed
Customer safety is our top priority. Our fully enclosed Fibre Laser Cutters ensure the protection of both operators and bystanders while efficiently extracting all harmful vapours for a safe working environment.
Laser Vision
All our Fibre Laser Cutters are equipped with CE-rated laser viewing glass, providing clear visibility of the cutting process while ensuring protection against harmful laser exposure.
Software
All of our Fibre Lasers come with software packages associated with the systems that include features such as nesting, parametric parts library, flycutting, common edge cutting and compensation controls
Cyclone Extraction
Our Cyclone extraction systems are available as part of your package. These high-performance units can be installed indoors or outdoors and come with an optional cowling for added safety.
Scrap Draws
Drawers for collecting scrap pieces are located at the side of the machine. These trays pull out and are light enough to be carried by two people, making it easier and safer to dispose of waste metal.
UK Engineering Teams
All of our highly skilled engineers are UK-based, serving as integral members of our installation and support teams to deliver seamless service and exceptional customer satisfaction.
UK Warranty Included
All new Fibre Laser Cutters come with premium 24-month parts and labour warranty (excluding consumables), ensuring dependable performance and complete peace of mind.
After Sales Support
Our UK-based after-sales service is always available to support our customers. We offer lifetime assistance via email and telephone, ensuring your satisfaction every step of the way.
Experience Precision With The SF 3015HC Fibre Laser
The SF 3015HC Fibre Laser Cutter delivers unmatched accuracy and efficiency in a compact design. Engineered for high-speed operation, it is the perfect solution for workshops and engineering firms needing a powerful yet space-saving metal-cutting system.
With a cutting area of 3000 x 1500 mm, the SF 3015HC combines advanced fibre laser technology with robust performance, catering to diverse fabrication needs. Its innovative design ensures precision, reliability, and ease of use, making it an excellent investment for businesses seeking high-quality results without compromising on space or efficiency.
Compact
Fully Featured
Dual Shuttle Exhange Tables
Overview and Features
| SF Medium Power Fibre Datasheet | Description |
|---|---|
| Cutting table size | 3050 x 1530 mm cutting table |
| Table type | Low contact cutting table |
| Shuttle Exchange Table | Yes - dual shuttle exchange tables included |
| Laser Power Options | 1.5kW | 2kW | 3kW | 4kW | 6kW options |
| Positioning Accuracy (X,Y axis) | ±0.05 mm |
| Repeat Positioning Accuracy (X,Y axis) | ±0.02 mm |
| Max Speed | 130 m/min |
| Max Acceleration | 1.0G |
| Safety Enclosure | Yes – full safety enclosure to protect your operators from any stray beams and to aid in the safe extraction of cutting vapour |
| Laser Cutting Head | Raytools - Autofocus |
| Servo Drives | High-accuracy servo-driven system |
| Drive System | Double Y axis ball screw transmission |
| Guide Rails | HIWIN guide rails |
| Ball Screw | TBI ball screw |
| Dual Channel Water Chiller | Yes - S&A CWFL Series (model is power dependant) |
| CNC Controller | Cypcut CNC control |
| Software Included | Yes - integrated CAD package for on-machine file creation/editing |
| Consumables | Yes - set of protective lens, focus lens, and nozzle pack supplied (additional available to purchase) |
| Power requirements | 3 Phase AC 380V 50HZ (Single phase available up to 2kW) |
| Delivery and installation | Included (offloading and positioning are available upon request). Installation and training included |
| Chiller Dimensions | S&A Model to Suite |
| Length | 550 mm |
| Depth | 770 mm |
| Height | 1030 mm |
| Weight | Appx 95kg |
Why Choose The SF 3015HC Fibre Laser Range?
The SF 3015HC Fibre Laser Cutter is an excellent choice for customers seeking a high-performance, medium-power laser cutting solution. With cutting power options ranging from 1.5 to 6kW, it caters to diverse operational needs, ensuring precise and efficient cutting across various materials. Its compact footprint, combined with a fully enclosed design, makes it suitable for workshops with limited space while prioritising operator safety.
Additionally, the dual shuttle exchange tables enhance productivity by allowing continuous operation and minimising downtime during material loading and unloading. The user-friendly Windows-based PC control system, along with the handheld remote control pendant, simplifies operation, making the SF 3015HC a versatile and efficient addition to any manufacturing setup.
Additionally, the dual shuttle exchange tables enhance productivity by allowing continuous operation and minimising downtime during material loading and unloading. The user-friendly Windows-based PC control system, along with the handheld remote control pendant, simplifies operation, making the SF 3015HC a versatile and efficient addition to any manufacturing setup.
Is Training and Delivery Included?
All of our Fibre Lasers include our standard UK mainland delivery and include full training on your new machine and how to operate to operate software enabling you to comfortably produce your own projects.
*Note: This list is not exhaustive. Always check with your materials supplier to see if you need to adhere to any special cutting and health and safety requirements.
| Metals |
|---|
| Stainless Steel |
| Mild and Carbon Steel |
| Copper |
| Brass |
| Aluminium |
| Titanium |
