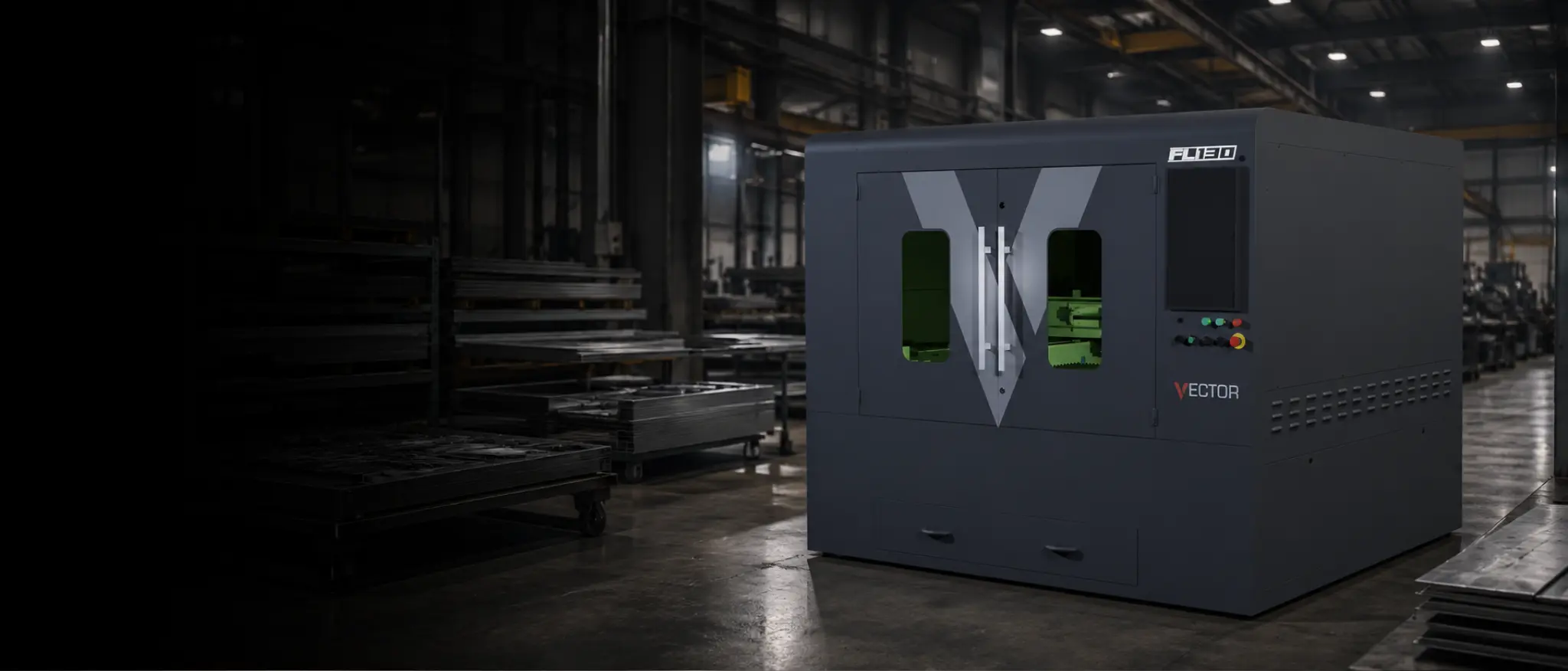

Vector FL130 Fibre Laser. Compact, Expanded Cutting Table.
Expanding on the exceptional performance of the FL90, the FL130 stands out as the larger counterpart in our fibre laser cutter lineup. Designed with an expanded cutting area of 1300 x 1300 mm, this model provides increased flexibility for handling larger-scale projects. Equipped with the same robust power options of up to 3kW, the FL130 is an ideal solution for those requiring a larger cutting table compared to the 1300 x 900 mm dimensions of the FL90.
Brochure RequestCompact Fibre Laser, Increased Cutting Abilities
The FL130 takes its place as the larger counterpart to the FL60 and FL90 models, offering expanded manufacturing capabilities with its larger cutting table. This increased capacity enables greater flexibility to tackle larger and more diverse projects, catering to a wide range of fabrication requirements.
Impressive Performance - UK Designed
The Vector FL130 Fibre Laser is a powerful metal cutting system designed for exceptional performance. Its intuitive control system ensures precise and accurate results, making it an ideal choice for a wide range of fabrication and engineering applications.
Powerful, Precision Cutting Capabilities
A servo-driven system with powerful optional 1.5kW or 2kW power packs operating on a single-phase power supply. We also offer the FL130 with 1.5-3kW 3 phase electrical options. This makes the Vector FL130 a powerful option for customers looking for a high-performance metal laser cutter that still offers a compact footprint.
Full UK Warranty
Delivery Included
Installation Included
Versatile Fibre Laser
Exceptional Service

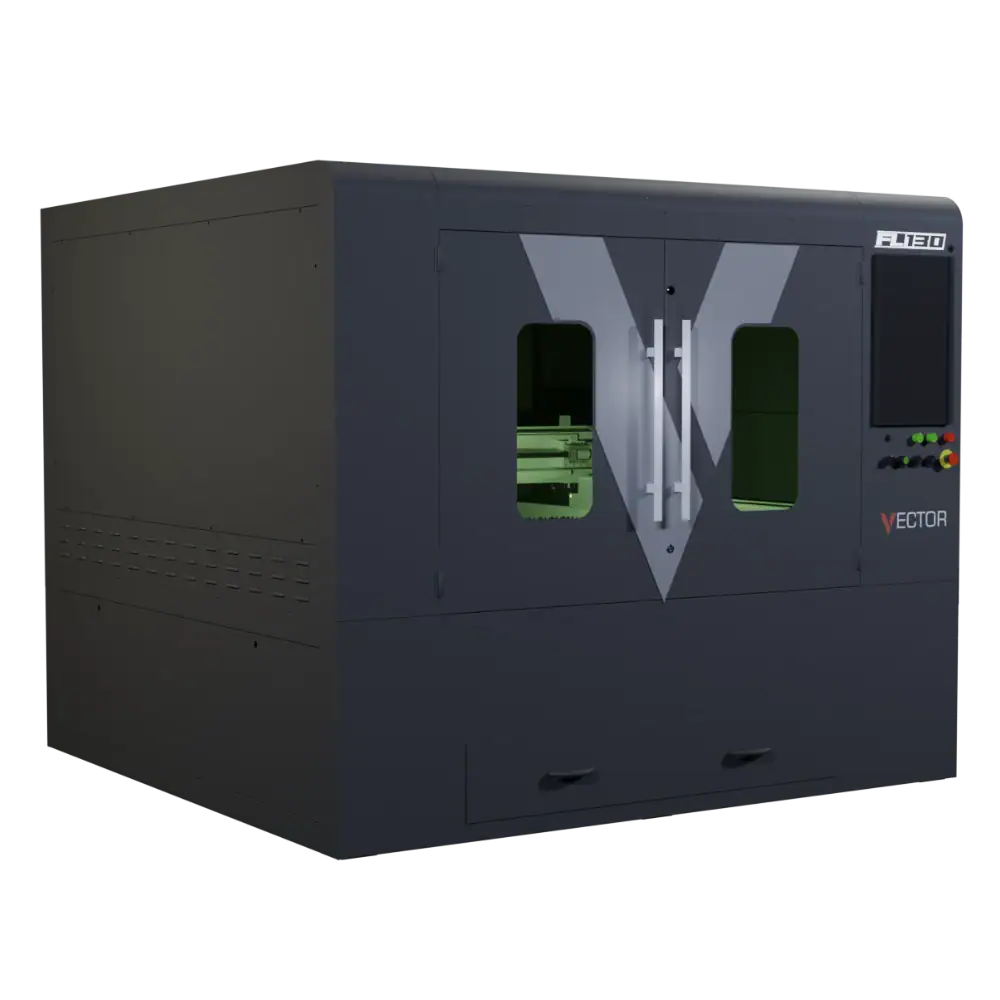

A Versatile Yet Still Compact Fibre Laser. The Vector FL130
Discover a cost-effective metal cutting solution with the FL130 Fibre Laser. Its compact design and powerful precision combine for exceptional cutting performance.

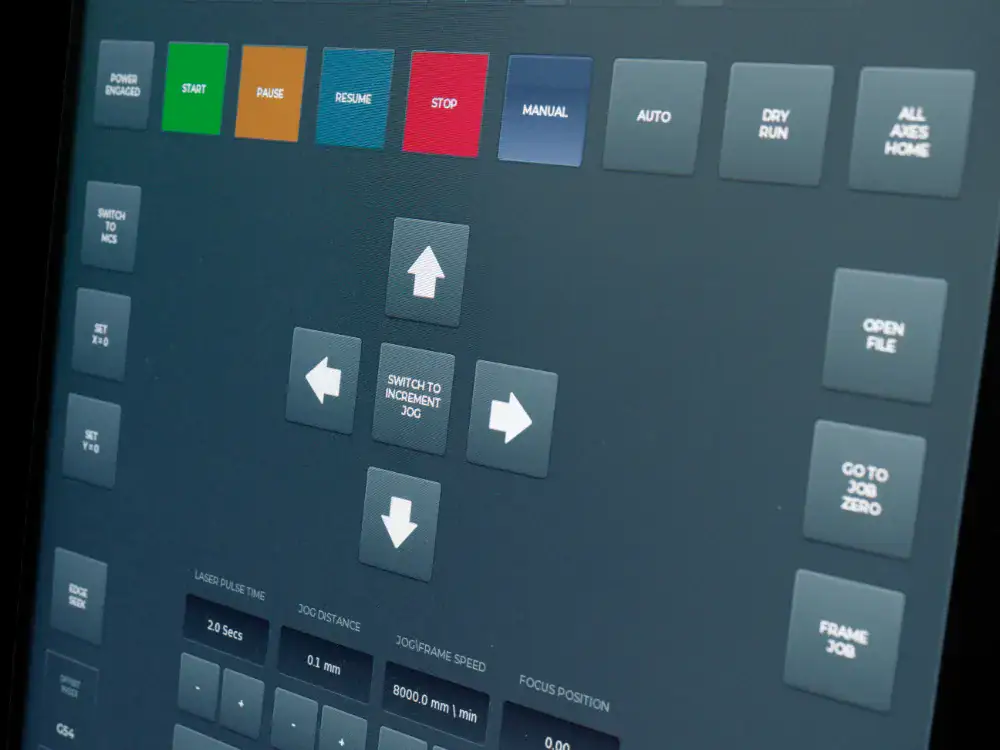

Easy-to-use control and software
Each Vector FL130 Fibre Laser features the UK-designed and user-friendly V-CUT control system, designed in-house with a modern touchscreen interface to meet the needs of Western manufacturers.
Single Phase and 3-phase options
powerful 1.5kW or 2kW power packs operating on a single-phase power supply. We also offer the FL90 with options for 1.5-3kW 3-phase configurations.
Auto focus cutting system
RayTools cutting heads, which are standard on our machines, feature built-in capacitance height sensors and autofocus, making it easy to switch between cutting different materials.
Fully Enclosed System
Larger 1300 x 1300 mm Cutting Table for Improved Capacitiy
Full Control With The Included PC System
Integrated Parts retrieval and Scrap Drawer
Powerful Cutting Options of 1.5-3kW (Single Phase up to 2kW)
Full safety enclosure
All Vector fibre laser cutters are fully enclosed for the safety of not only the operator but also other staff that may be working in the vicinity. Metal dust particulates and light radiation are minimised, ensuring a safe working environment.
CE-rated viewing panels
Our systems are configured with built-in safety windows, enabling the operator and or other staff to view the cutting zone without the risk of eye damage.
First class service and support
Our service team comprises of 5 full time telephone support engineers and a team of almost 20 service engineers, ensuring you're in great hands. You also have access to our support portal for easy access to guides and support.
Features &. Overview of the Vector FL130 Fibre Laser
Improved Cutting Table Size, High-Performance Metal Cutting Solution.
Easy to Operate
Our Vector FL130 Fibre Laser features our user-friendly V-CUT control system, designed in-house with a modern touchscreen interface to meet the needs of Western manufacturers.
Single and 3-Phase Options
A servo-driven system with powerful 1.5kW or 2kW power packs operating on a single-phase power supply. We also offer the FL60 with a 3kW 3-phase option for higher-powered applications.
Lower Operational Costs
Through efficient operation, the FL130 lowers costs compared to traditional metal-cutting machines by reducing energy consumption, minimising maintenance requirements, and boosting productivity.
Expanded Cutting Zone
The FL130 offers an increased cutting table size of 1300 x 1300 mm, boosting production capacity while retaining the T90's fast setup, operational efficiency, and superior performance.
Fast File Handling
Our powerful V-CUT control software efficiently processes DXF files, allowing for cutting within seconds and dramatically reducing programming time for prototyping, one-off projects, and custom designs.
Dual Circuit Chiller
Every one of our fibre lasers is equipped with an S&A chiller featuring dual temperature control, ensuring optimal cooling for both the power source and optics throughout the cutting process.
Handheld Remote
The wireless handheld remote provides a range of functions, including head movement, shutter control, assist gas adjustment, speed setting changes, and more.
Auto Focus
Our machines come standard with RayTools cutting heads, equipped with a built-in capacitance height sensor and autofocus, ensuring seamless transitions between different materials.
Fully Enclosed
Customer safety is our top priority. Our fully enclosed Fibre Laser Cutters ensure the protection of both operators and bystanders while efficiently extracting all harmful vapours for a safe working environment.
Laser Vision
All our Fibre Laser Cutters are equipped with CE-rated laser viewing glass, providing clear visibility of the cutting process while ensuring protection against harmful laser exposure.
Software
Our FL130 range includes the powerful V-CUT control software and our CAD drawing package, offering a complete suite of tools for seamless design and precise cutting.
Cyclone Extraction
Our Cyclone extraction systems are available as part of your package. These high-performance units can be installed indoors or outdoors and come with an optional cowling for added safety.
Scrap Draws
Front-mounted scrap drawers are lightweight and easy to pull out, allowing two people to carry them effortlessly. This design simplifies the disposal of waste metal, enhances safety, and improves workflow efficiency.
UK Engineering Teams
All of our highly skilled engineers are UK-based, serving as integral members of our installation and support teams to deliver seamless service and exceptional customer satisfaction.
UK Warranty Included
All FL130 Fibre Laser Cutters come with a premium 24-month parts and labour warranty (excluding consumables), ensuring dependable performance and complete peace of mind.
After Sales Support
Our UK-based after-sales service is always available to support our customers. We offer lifetime assistance via email and telephone, ensuring your satisfaction every step of the way.
Compact and Powerful Precision Fibre Lasers Without Compromise
A compact, highly accurate fibre laser metal cutting machine with high-speed operation. Ideal for smaller workshops or engineering firms that require a compact bed size of up to 1300*900mm.
The Vector FL90 combines advanced laser technology with competitive pricing, making it more accessible to a broader audience while delivering exceptional performance and user-friendly operation.
Compact
Easy to Operate
V-CUT Control
Overview and Features
| Vector FL130 Datasheet | description |
|---|---|
| Cutting table size | A compact yet spacious cutting table of 1300 x 1300 mm |
| Table type | Low contact cutting table |
| Safety Enclosure | Yes – full safety enclosure to protect your operators from any stray beams and to aid in the safe extraction of cutting vapour |
| Laser Power Options | 1.5kW / 2kW / 3kW options |
| Laser Cutting Head | Raytools - Autofocus |
| Servo Drives | High-accuracy servo-driven system |
| Drive System | Double Y axis ball screw transmission |
| Guide Rails | HIWIN guide rails |
| Ball Screw | TBI ball screw |
| Dual Channel Water Chiller | Yes - S&A CWFL Series (model is power dependant) |
| CNC Controller | In-house developed V-CUT laser cutting control system |
| Software Included | Yes - integrated CAD package for on-machine file creation/editing |
| Consumables | Yes - set of protective lens, focus lens, and nozzle pack supplied (additional available to purchase) |
| Power requirements | Single phase AC 240V 1.5-2kW or 3 Phase AC 380V 50HZ for 3kW |
| Delivery and installation | Included (offloading and positioning are available upon request). Installation and training included |
| Machine Dimensions | |
| Length | 2700 mm (without PC control arm) |
| Depth | 2250 mm |
| Height | 2050 mm |
| Weight | Appx 2000kg |
| Chiller Dimensions | |
| Length | 550 mm |
| Depth | 770 mm |
| Height | 1030 mm |
| Weight | Appx 95kg |
Why Choose The Vector FL60 Fibre Laser Range?
The Vector FL130 Fibre Laser Cutter is an exceptional choice for businesses seeking to enhance their manufacturing capabilities. Its spacious 1300 x 1300 mm cutting table accommodates larger materials, increasing production capacity and enabling the handling of more extensive projects. Equipped with powerful laser options up to 3kW, the FL130 delivers precise and efficient cutting across various materials, ensuring high-quality results for diverse fabrication needs.
Designed with user-friendly features, the FL130 includes the intuitive V-CUT control system, facilitating quick setup and streamlined operation. Its fully enclosed design prioritises safety by protecting operators and allowing for the efficient extraction of harmful vapours. Additionally, the FL130's efficient operation reduces energy consumption and maintenance requirements, leading to lower running costs compared to traditional metal-cutting machines. With robust UK engineering and comprehensive after-sales support, the Vector FL130 Fibre Laser Cutter is a reliable and cost-effective investment for businesses aiming to achieve optimal performance in their manufacturing processes.

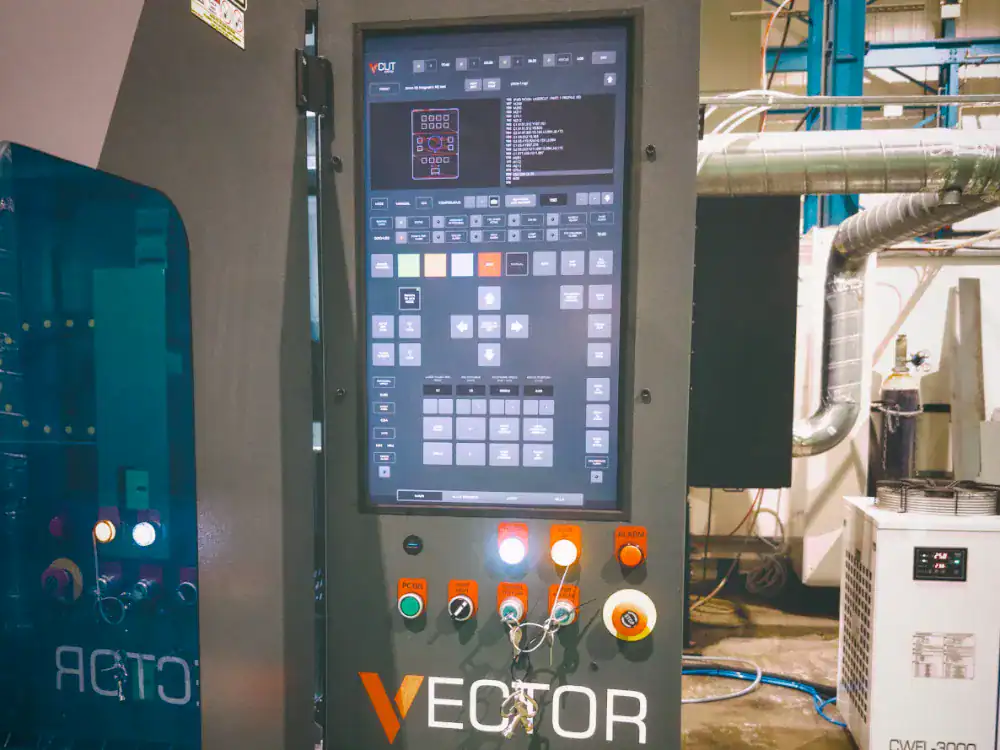

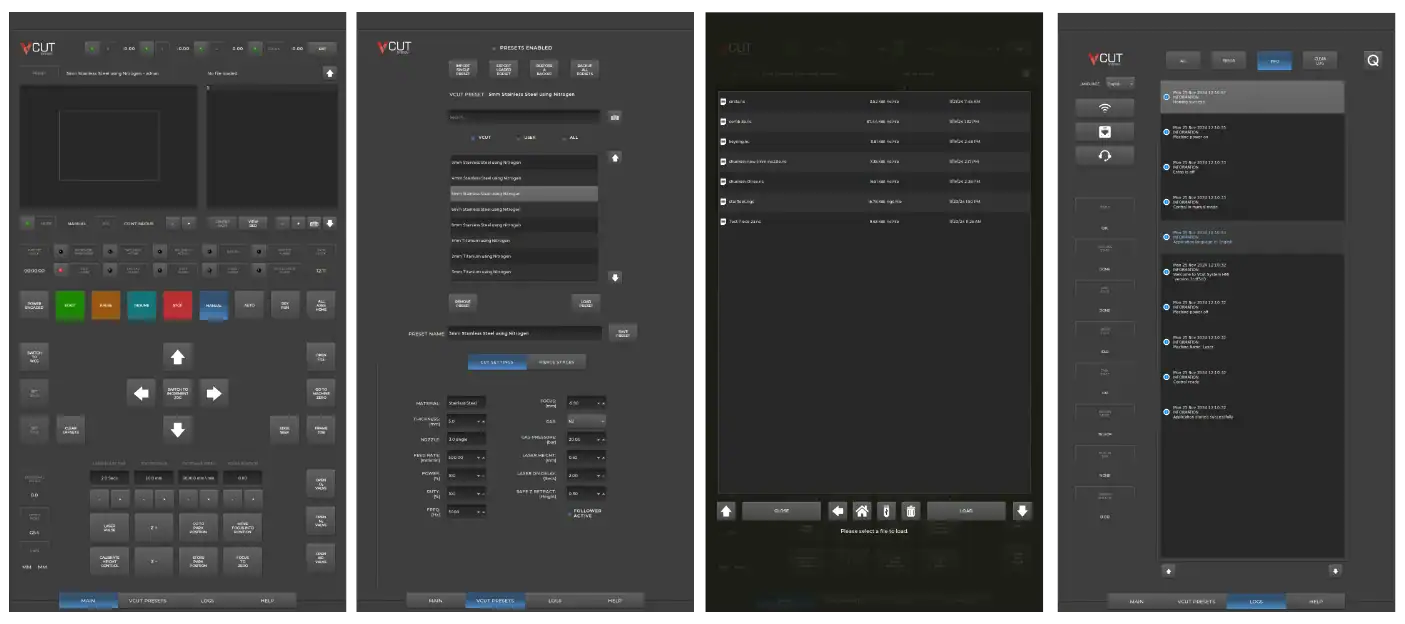

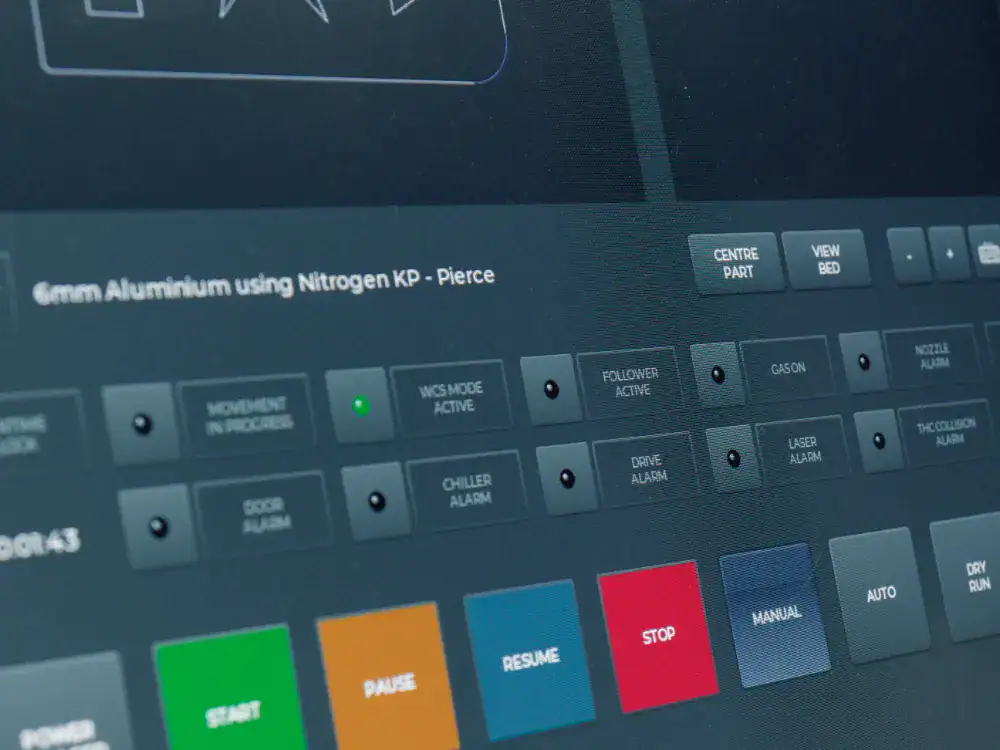

V-CUT Software
Our Vector FL130 range combines a range of features to allow you to fully control your machine with ease and the minimum of fuss.
Is Training and Delivery Included?
All of our Fibre Lasers include our standard UK mainland delivery and include full training on your new machine and how to operate to operate software enabling you to comfortably produce your own projects.
*Note: This list is not exhaustive. Always check with your materials supplier to see if you need to adhere to any special cutting and health and safety requirements.
| Metals |
|---|
| Stainless Steel |
| Mild and Carbon Steel |
| Copper |
| Brass |
| Aluminium |
| Titanium |
