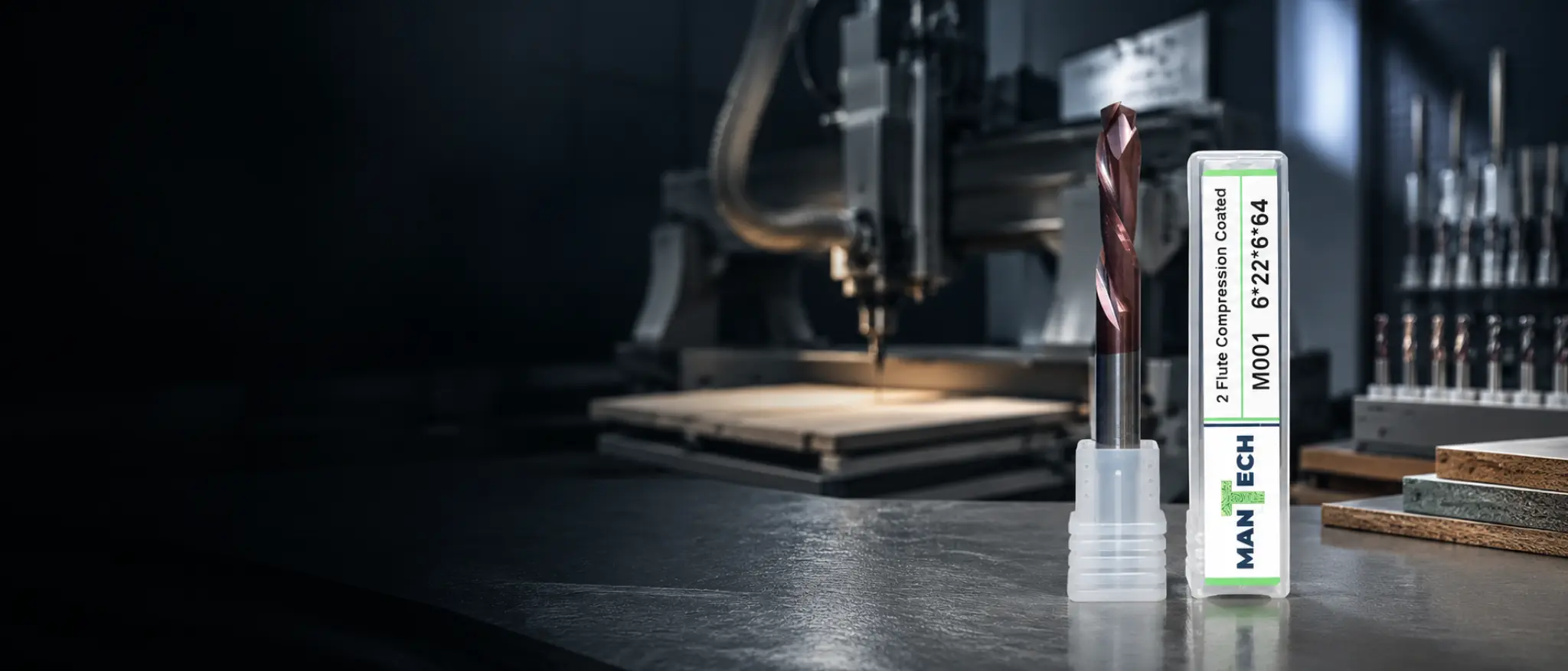

CNC ROUTER TOOLING

CNC Router Tooling for Wood, Plastics, Composites and Aluminium

Professional CNC router cutters, collets and tooling packs for accurate machining across sign making, joinery, fabrication and production environments.

Shop CNC Router Tooling Explore Tooling Guidance

UK Machinery Specialists
Professional Router Tooling
Nationwide Delivery
Technical Support

Tooling by application

Match the cutter to the work

Start with the material, edge finish and production task. These application groups provide a practical route into the relevant tooling families.

Wood and sheet materials

Cutters for MDF, plywood, hardwood, softwood and laminated sheet, selected around chip clearance and the required face finish.

Panels · timber · sheet stock

Acrylic and plastics

Tooling choices intended to clear chips cleanly and reduce heat build-up when profiling, pocketing or producing display components.

Acrylic · PVC · foam board

Aluminium and ACM

Cutter geometry suited to non-ferrous sheet and aluminium composite material, with machine capability and workholding confirmed first.

ACM · aluminium sheet

Sign making

A practical mix for profiling, lettering, engraving and folded-sign preparation across common sign-making substrates.

Lettering · profiles · panels

Furniture and cabinet production

Tooling for nested sheet work, clean laminated faces, rebates and component profiling in repeat production workflows.

Cabinetry · nesting · joinery

General fabrication

Versatile workshop tooling for mixed routing tasks, prototypes, jigs and day-to-day component production.

Jigs · prototypes · components

Cutter selection

Choose the correct cutter type

The flute direction and cutter geometry influence chip evacuation, surface finish and material suitability. Use this overview as a starting point.

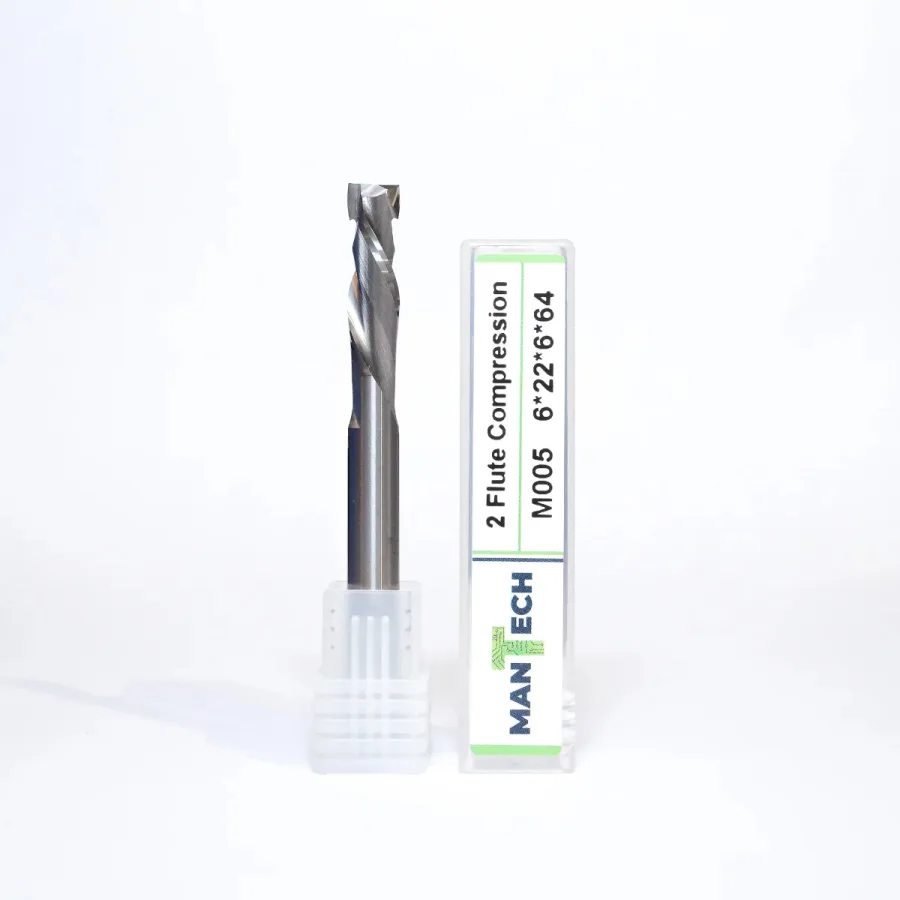

Two-flute compression spiral CNC router cutter — Compression spiral cutter · representative tooling geometry

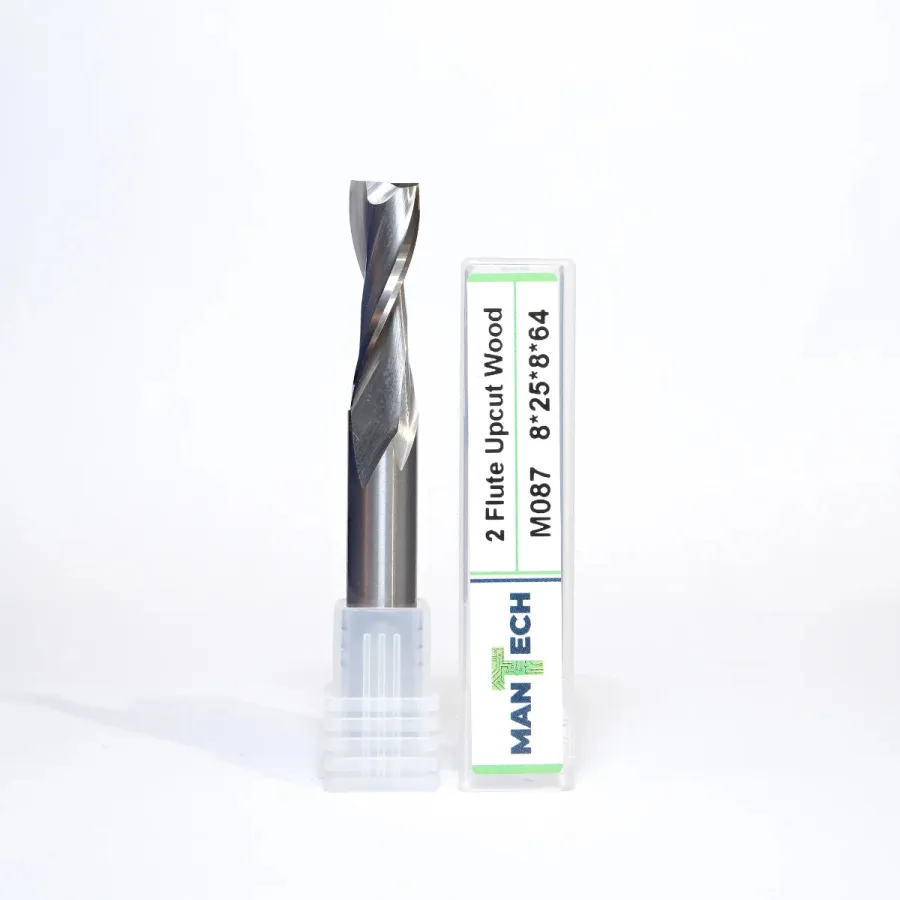

Upcut cutters

Pull chips upward for effective evacuation. They are useful where clearing the cut is the priority, although the top face may need consideration.

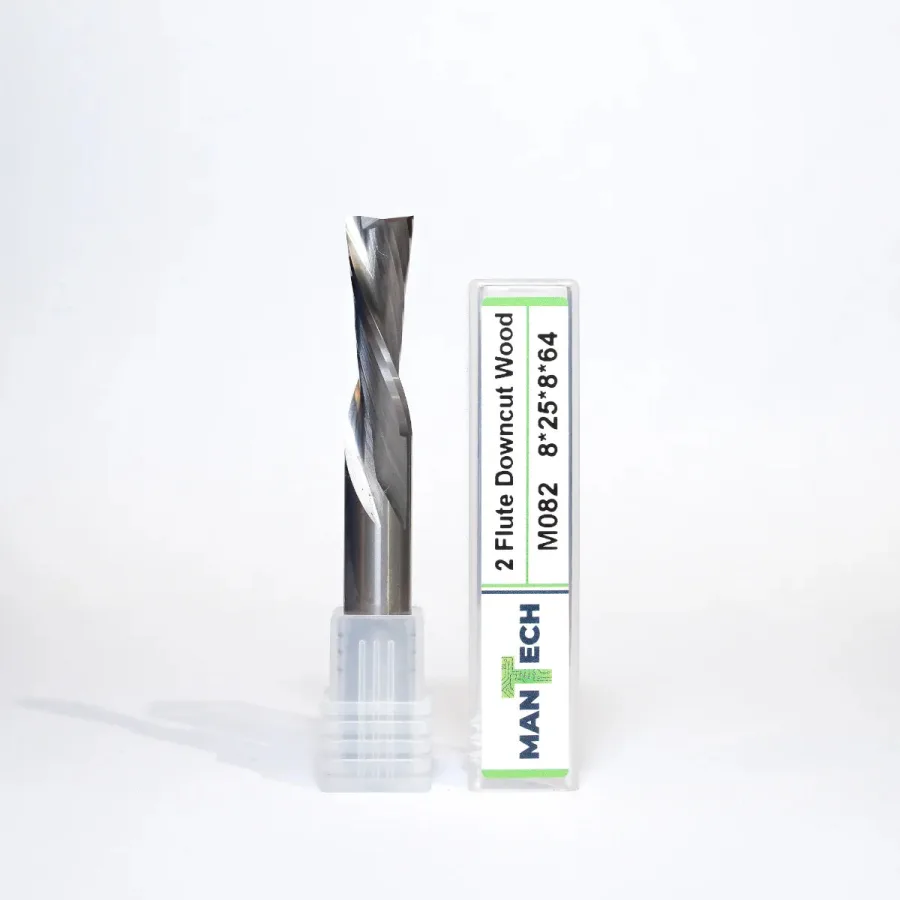

Downcut cutters

Direct cutting action downward to support a cleaner top surface. Chip clearance and cutting depth still need careful planning.

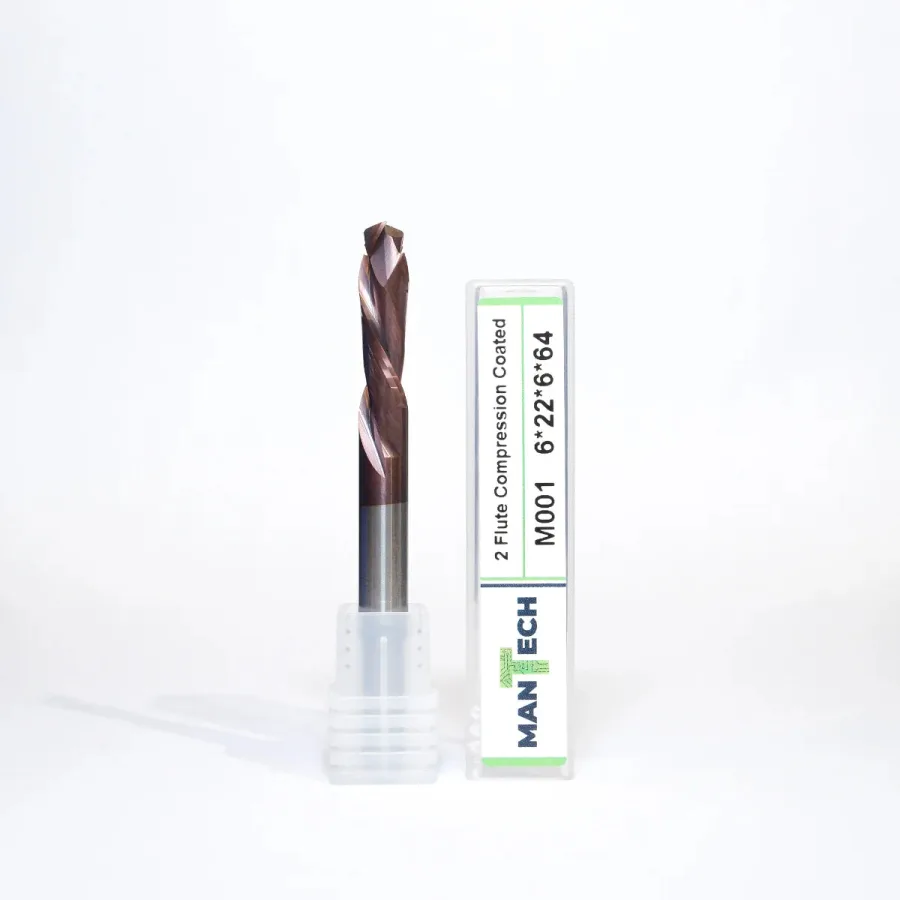

Compression cutters

Combine upcut and downcut sections to support clean top and bottom faces in sheet materials when the cutting depth engages both geometries.

Straight cutters

A straightforward option for general profiling and routing where the material and finish do not call for a spiral flute strategy.

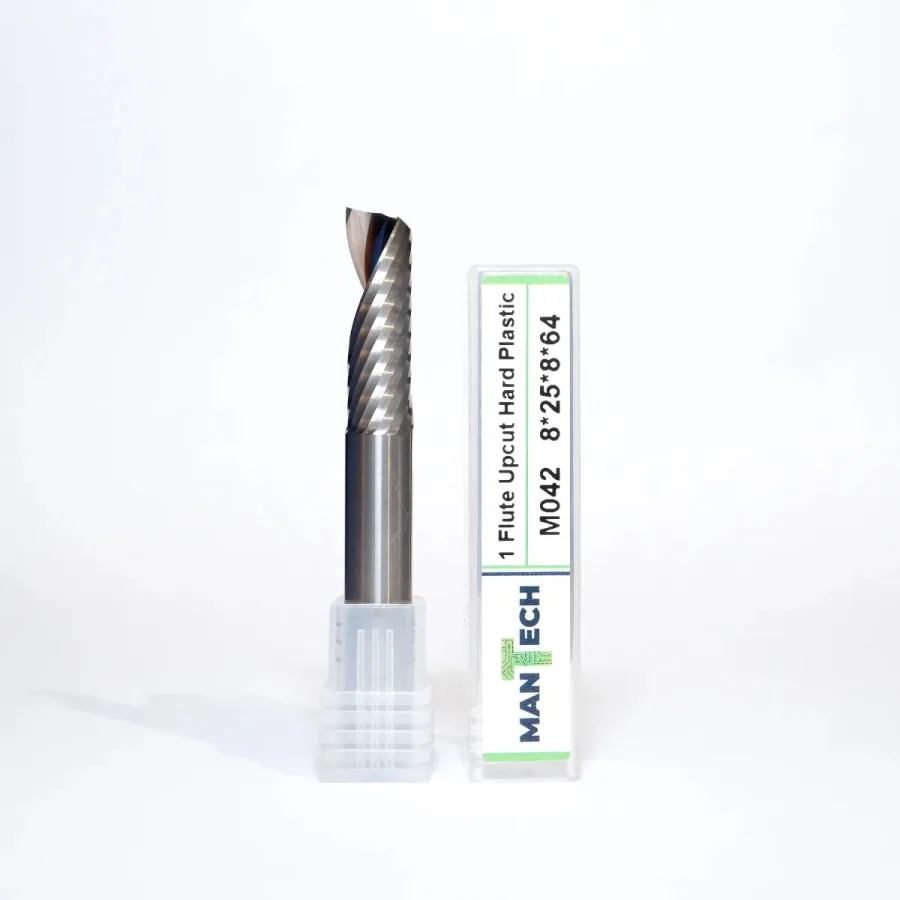

O-flute cutters

Commonly selected for plastics and non-ferrous materials because the open flute form supports chip removal and controlled cutting.

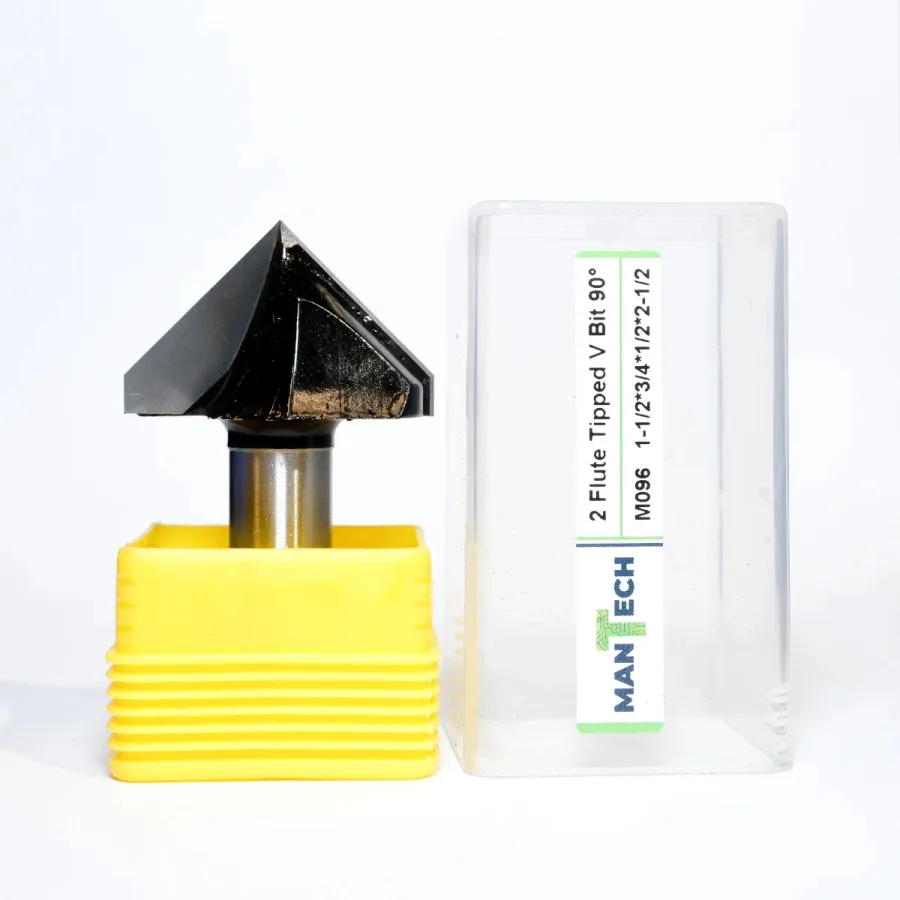

V-bits and lettering tools

Used for engraving, chamfering, sign lettering and decorative detail. The angle and tip geometry determine the resulting profile.

SHOP POPULAR TOOLING

MDF

Upcut, downcut or compression

Choose around edge finish and dust extraction.

Plywood

Compression or spiral tooling

Consider veneer finish on both faces.

Laminated board

Compression or downcut

Prioritise the required top and bottom finish.

Hardwood

Spiral or straight cutters

Match geometry to grain, depth and chip clearance.

Softwood

Upcut or general-purpose spiral

Plan for clean evacuation and a stable hold.

Acrylic

O-flute plastic cutters

Control chip evacuation and avoid excess heat.

PVC and foam board

Single-flute or O-flute

Select for the specific sheet density and finish.

Aluminium composite material

O-flute or ACM tooling

Confirm skin thickness and panel construction.

Aluminium

Non-ferrous O-flute tooling

Confirm machine, workholding and lubrication needs.

Tooling packs

A practical tooling set for your workflow

Tooling packs help workshops assemble a considered starting set or replace commonly used cutter types without treating every tool as an isolated purchase.

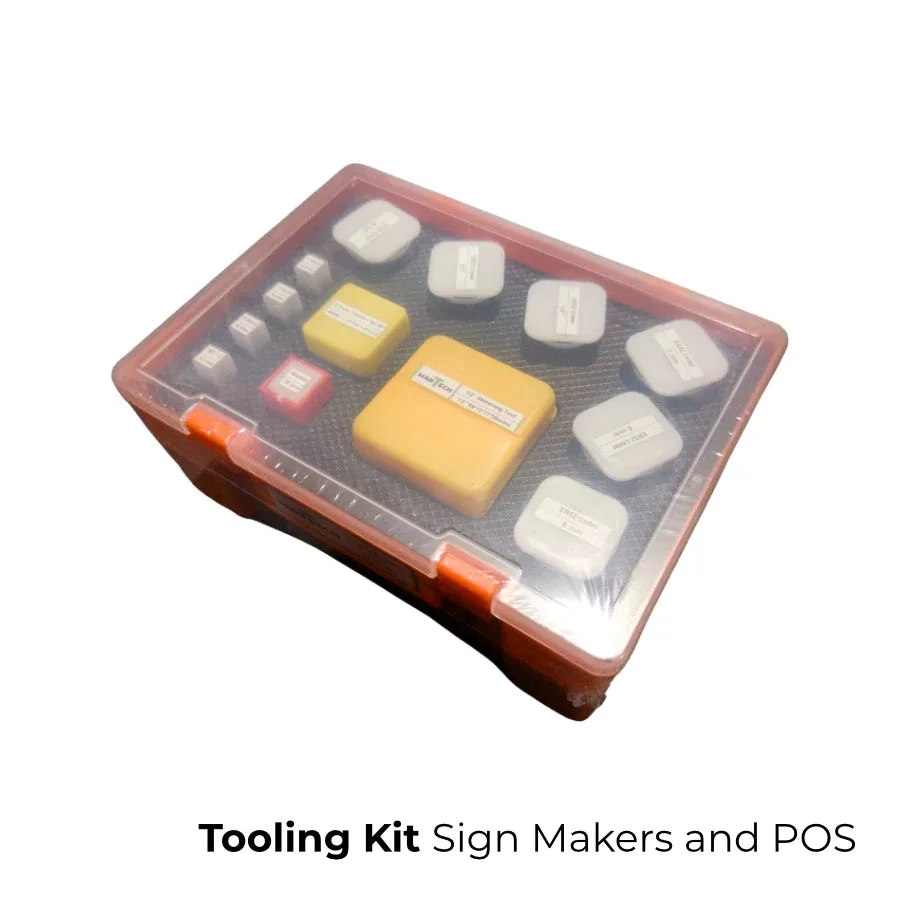

Sign makers

A balanced selection for profiling sheet, producing lettering and working across common sign substrates.

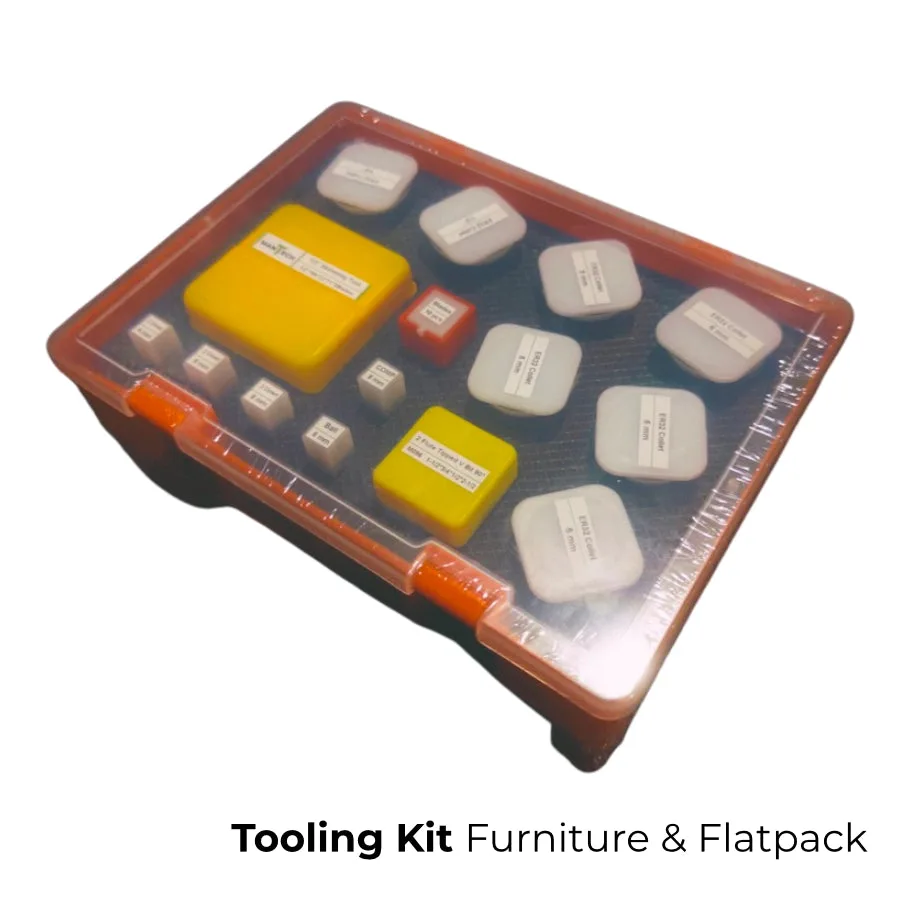

Furniture and flat-pack production

Tooling focused on nested boards, clean laminate faces, rebates and repeat component cutting.

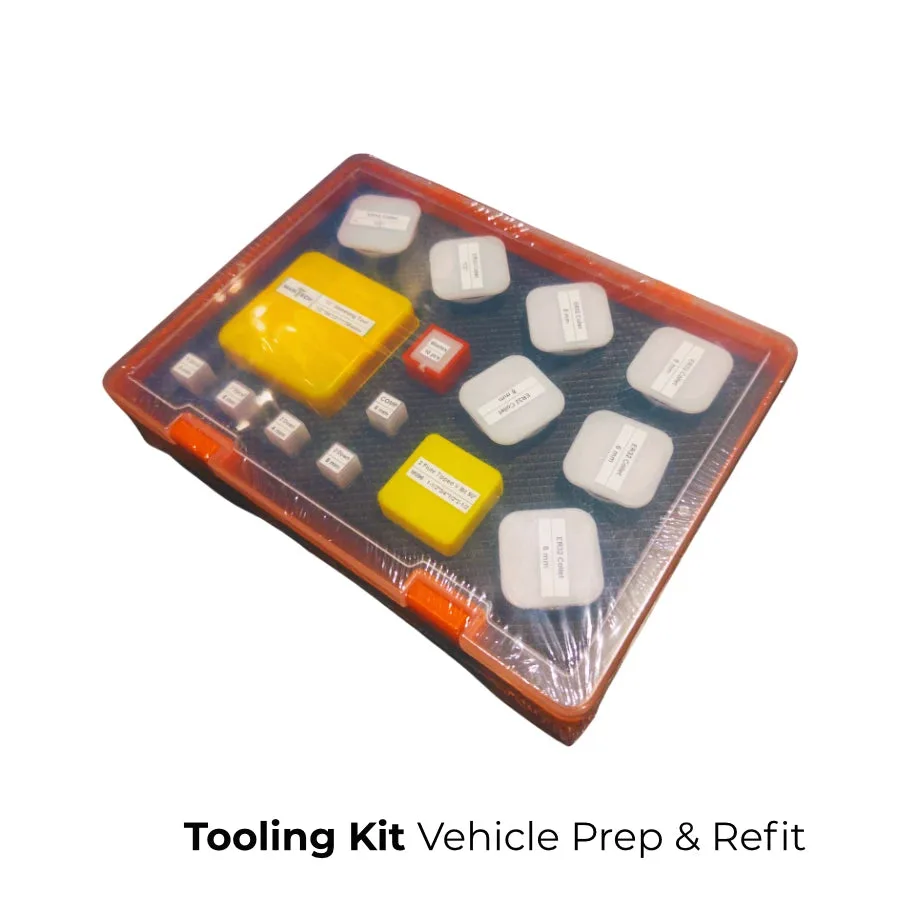

Vehicle conversion and fit-out

A mixed set for plywood, lightweight board, plastics and workshop fit-out components.

Workshop essentials

Useful cutter coverage for maintenance replacements, prototypes and general day-to-day routing.

View CNC Router Tooling Packs

Buying guidance

Check the complete tooling setup

Correct selection depends on more than the cutter name. Review the machine, holder, material and intended cut together before ordering.

01

Material being machined

Identify the exact substrate, coating and sheet construction.
02

Cutter diameter

Balance feature size, cutting depth, rigidity and chip clearance.
03

Shank and collet compatibility

Match the shank diameter to the correct, serviceable collet and holder.
04

Cut depth

Ensure the cutting length and flute geometry suit the planned passes.
05

Upcut versus downcut finish

Decide which material face needs the greatest protection from breakout.
06

Single-flute versus double-flute

Consider chip space, material type and the finish required from the cut.
07

Tool condition and replacement

Inspect cutters and collets regularly; worn tooling can undermine finish and consistency.

Why Mantech

Tooling guidance grounded in CNC experience

Mantech is an established UK machinery supplier supporting manufacturers and workshops with CNC routers, parts and practical application knowledge.

Established UK supplier

A UK machinery business serving professional manufacturing and fabrication environments.

Real CNC router experience

Tooling guidance informed by the machines, materials and production tasks our team works with.

Technical product knowledge

Support to help customers ask the right compatibility and application questions before purchase.

Practical applications

A commercial range connected to sign making, joinery, fit-out, fabrication and production routing.

Support around the purchase

A technical team available when customers need help understanding tooling requirements.

Frequently asked questions

CNC router tooling questions

What type of CNC router cutter should I use for MDF?

Upcut, downcut and compression cutters can all be used for MDF. Select according to the required face finish, chip clearance, cutting depth and the capability of your machine.

What is the difference between upcut and downcut tooling?

Upcut tooling draws chips upward and generally favours evacuation. Downcut tooling directs the cutting action downward and can support a cleaner top face, but chip clearance needs consideration.

When should I use a compression cutter?

Compression cutters are commonly chosen for sheet materials where clean top and bottom faces are important. The cut must engage the relevant upcut and downcut sections for the geometry to work as intended.

Which cutters are suitable for acrylic?

O-flute cutters are commonly used for acrylic because their open flute form supports chip evacuation. Confirm the exact material, cutter dimensions and machining setup before use.

How do I check the correct shank size?

Check the cutter shank diameter against the spindle collet and tool holder fitted to your machine. The sizes must match, and the collet should be clean, undamaged and suitable for the holder.

Where can I buy Mantech CNC router tooling?

Mantech CNC router cutters, tooling packs and related workshop accessories are available through the established Mantech Parts online store.

Mantech Parts

Find the Right Tooling for Your CNC Router

Browse the complete CNC router tooling range, including cutters, tooling packs and workshop accessories, through the established Mantech Parts store.

Shop CNC Router Tooling Contact Mantech
