Cyclone Fibre Laser Extraction System
Protects staff and visitors from harmful metal dust and helps to prevent build-up of deposits that can damage parts of your laser if not extracted correctly.
Proven efficiency of 99.9% for particles larger than 0.5µm
Greater Efficiency
Longer Operating Life Of The Unit & Cartridge
Reduction In Required Maintenance
Lower Operating Costs

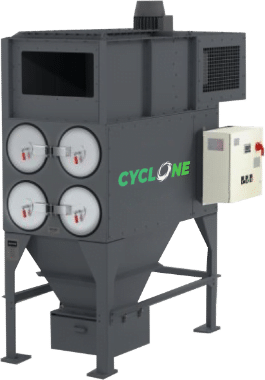

Metal Dust Extraction System For Fibre Laser Cutters
Cyclone is a compact dry dust collection system that uses cartridges designed to reduce the emission of particles into the air and guarantee an environment that is free from dust, thus increasing the safety of the industrial process of laser cutting metals and improving the environmental conditions of the location where cutting is taking place.

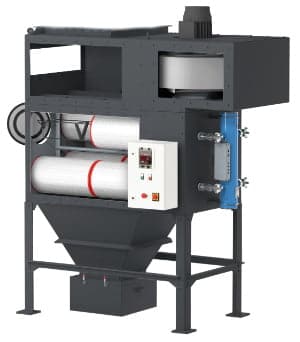

Designed to be a compact solution that is smaller than other filtration units operating in the same filtration range. The filtering elements are arranged in rows and columns and mounted to a single plate, significantly reducing the footprint required.
The compact Cyclone extraction system incorporates an automatic counter-flow compressed air cleaning system that allows operating continuously for prolonged periods of time, ensuring a constant load loss.
With a larger air inlet surface, the inlet speed is reduced, minimising the abrasion of the filtering elements and improving the overall distribution of dust in the dirty air.
The result:
Longer service life of the filtering elements and a greater filtration capacity than that of other units on the market with similar number of cartridges – all with a system that is compact and modular.a
Designed to be a compact solution that is smaller than other filtration units operating in the same filtration range. The filtering elements are arranged in rows and columns and mounted to a single plate, significantly reducing the footprint required.
The compact Cyclone extraction system incorporates an automatic counter-flow compressed air cleaning system that allows operating continuously for prolonged periods of time, ensuring a constant load loss.
With a larger air inlet surface, the inlet speed is reduced, minimising the abrasion of the filtering elements and improving the overall distribution of dust in the dirty air.
The result:
Longer service life of the filtering elements and a greater filtration capacity than that of other units on the market with similar number of cartridges – all with a system that is compact and modular.a
Dry Dust Collection System
The Cyclone has a built-in fan and electrical panel and incorporates it’s own dust discharge and collection system, turning it into a “plug and play” filtering unit. It’s operation is highly intuitive, based on an easy operation in terms of connections and initial start-up as well as its subsequent maintenance thanks to, among other things, arrangement of internal components and accessibility.
Indoor or Outside Installation
The Cyclone can be fitted in either an internal installation or externally by means of a purpose-designed optional cowling.
This gives businesses a versatile system for the safe removal of metal dust and keeps your machine free of harmful deposits (you are still required to complete regular house keeping).
This gives businesses a versatile system for the safe removal of metal dust and keeps your machine free of harmful deposits (you are still required to complete regular house keeping).

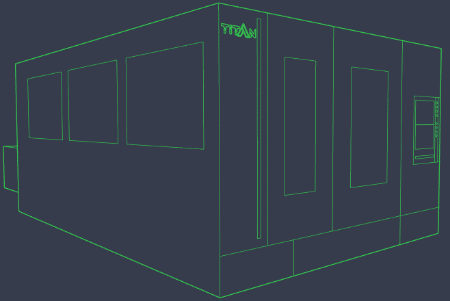

Compatible With All Titan Lasers
The Cyclone is compatible with our Titan flat plate fibre lasers. It is also compatible with a number of 3rd party systems, allowing you to fit an efficient air-cleaning system if your machine does not have one.
