Fibre Laser Special Offer!!!

Limited time only

OUT OF THIS WORLD PRICING!

• Fully enclosed system
• Exchange table included
• Bed size of 1500 x 3000 mm
• Software included
• Delivery & installation*

Spread the cost?

Finance options available, please ask for details. Subject to status.

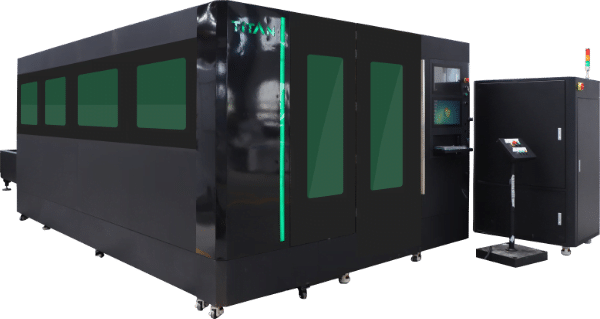

Our most cost effective large format fibre laser cutting solution to date.  The Titan 1kW includes amazing build quality, high performance components and best in class operation.

Easy to use with Cypcut control software, includes delivery & installation for UK mainland (*additional costs outside of these areas will be charged, please ask for details).

What type of industries and markets are Fibre Laser Machines used in?

• Marine engineering
• Mechanical fabrication
• Steel fabricators
• Construction
• Automotive
• Sign making
• General construction
• Aerospace
• Electrical component manufacture

Only £58,800 +VAT

*Maximum potential values

MATERIAL	1KW	GAS ASSIST TYPE
Carbon Steel	*10mm max	Oxygen
Stainless Steel	*5mm max	Nitrogen
Aluminium Alloy	*3mm max	Nitrogen
Brass	*1.5m max	Nitrogen

STANDARD EQUIPMENT	ITEM
Laser source	1kW High Performance Module
Cutting head	Raytools
Servo motor & drive system	Y axis dual drive 1.3KW, X axis 850W, Z axis 400W. (YASKAWA – Japan)
Exchange table	Load limit 800KG standard 3 x 1.5 m machine. Custom bed strengthening available upon request.
Guide rails	Hiwin/PMI (Taiwan)
Gear & Rack	APEX (Taiwan)
Reducer	Shimpo (Japan)
Water chiller	Tongfei – dual temperature control
CNC Control	BOCHU
Software	Cypcut cutting control system
Power requirements	3 Phase AC 380V 50HZ

CONSUMABLES INCLUDED
X 4 nozzles
X 3 protective lenses
X 1 focus lens
X 1 ceramic ring
X 1 filter element

Technical Features

Laser source

Fibre laser light energy is created by banks of diodes.  The light is transferred  through special fibre optic cable, an efficient energy transfer compared to conventional methods. The light, upon exiting the fibre cable, is then collimated (straightened) as it approaches the focus lens – which intensifies the beam enabling it to cut through the material with astonishing speed and accuracy.

A. Superb quality of laser beam, constant BPP within all the ranges of laser powers,so that long focus can still achieve an extremely small beam width.

B. electro-optical conversion efficiency of laser supply is 25% more efficient than CO2, therefore electricity consumption is drastically reduced.

C. Laser is transmitted by fiber optic cables, almost no energy loss during transmission to cutting head.

D. Modular design, allows easy assembly and beam alignment is minimal due to fibre optic transfer (No Mirrors). In addition, auto lube traverse systems minimize maintenance procedures.

E. Life span of Laser source is approximately 100,000 hours.

Raytools laser head

Raytools cutting head with high-performance non-contact capacitive height sensor is used and is designed to withstand high ‘gas assist’ pressures. The proven lens cartridge change system makes switching lenses for different materials or applications fast & simple. A. High cutting speed with the best cutting quality B. Quick change-over between three focal lengths without changing the TCP (Tool Centre Point) C. Protective window (lens) can be replaced as a consumable part, to extend the life of the focusing lens.

Machine structure

The machine body is a monobloc frame structure. The machine’s inertia remains the same for all material thicknesses and sizes to be cut, which gives optimum quality of the laser beam at the cutting head as well as its movement and accuracy. The compactness and robustness of this monobloc structure guarantees an optimum rigidity and stability. The machine frame incorporates collector trays on wheels (situated under
the cutting table) for removal of scrap and small components falling through the table grids

Transmission system

A. Precise positioning & repeatability rack and pinion system (Atlanta, Germany)

B. Square rail (HIWIN, TAIWAN)

C. Fixed on the stable monobloc structure, the transmission system for the X-, Y- and Z-axis guarantee very precise movements of the gantry and laser cutting head.

Driving system (YASKAWA)

Closed loop AC servo drive system and servomotors to ensure high dynamics, vibration- free operation and maximum precision

A. Yaskawa servo motors (Japan) Y Axis Dual Drive (3KW Y1/Y2) X Axis (1800W) Z Axis (850W)

B. The servo reducer (Shimpo, Japan) combined with the transmission system (see 4.5) and optimised for the servo motors results in the desired accuracy and motion at the rack and pinion.

Control software/system

A. Power Automation CNC Control with integrated I/O

B. Each PA CNC Systems is equipped with the HMI (Human Machine Interface). With this open, browser based all important control functions are clearly represented to the operator, so it will work within shortest training time efficiently and safely with the CNC system.

C. The CNC Systems are equipped with high-speed processors to accomplish an extremely fast ‘Block Throughput”. Highly accurate contours with very small NC blocks can be processed without any loss of speed. therefore, the machine always reaches the highest productivity.

D. Cypcut laser cutting control system Support AI, DXF, PLT and other graphic data formats

CAD module/ Nesting + processing function.

Cooling System

A. Dual function intelligent cooling system, ensuring the efficient operation of laser cutting head and laser source

B. 5 HP compressor, brands that are highly efficient and reliable

C. Overcurrent/ overload protection High – and low-pressure protection via means of flow switch

D. High and low temperature alarm signals output E. LCD display temperature controller with multiple function setting and error alarming
