Compact Fibre Laser Metal Cutting Machine

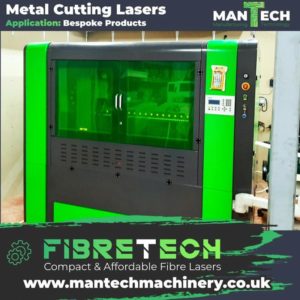

FibreTech Compact Fibre Laser Cutting Machine
Our Fibretech Fibre Laser Cutting Machines are fully tested to rigorous standards at our 32,000 square feet facility in Oldbury in the West Midlands.
Sheet metal cutting machines are our speciality and we are experts in fibre laser cutting technology.
All of our Fibretech Fibre Laser Machines supplied by Mantech come with warranty ranging from 1-5 years, depending upon your business needs. Not only that but we also offer extended warranties and on-site maintenance programs to give you full peace of mind.
Fibretech 1390 Fibre Laser
Features & Benefits
Each of our Fibretech fibre laser machines come with a 1300 x 900 mm bed, however they also have a ‘pass through aperture’ at the rear to enable processing of longer sheets (they would need to be supported from the rear of the machine).

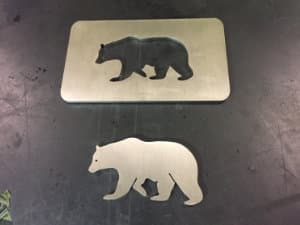

Process carbon steel, stainless steel, brass & copper, aluminium.
What type of industries and markets are Fibre Laser Machines used in?
- Marine engineering
- Mechanical fabrication
- Steel fabricators
- Sign making
- General construction
- Electrical component manufacture

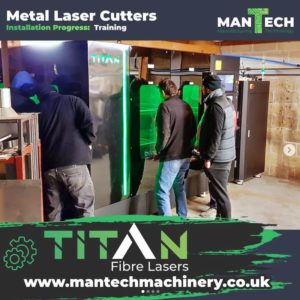

Other Fibre Laser Machines we supply and install:
*Promotional package when ordered with one of our Fibretech or Titan fibre lasers
*To find out more about our new metal laser extraction systems, please get in touch with one of our industry experts.
Specification: Fibretech Compact Fibre Laser
Available in: 1300 x 900 mm bed size
GAS ASSIST TYPE
Fibretech 90130 (approximately 950Kg)
(H) 1990mm, (L) 2350mm, (D) 1780mm
Servo motor & drive system
Double Y axis ball screw transmission, Yaskawa (Japan)
S & A CWFL500/CWFL800
Cypcut laser cutting controlsystem
Blade saw worktable
3 Phase AC 380V 50HZ
X 6 nozzles
X 6 protective lenses
X 1 focus lens
Our Fibretech Fibre Laser comes with either a Raycus 500W, 750W, 1kW, 1.5kW or 2kW laser source options.
A 1300 x 900 mm bed, including the enclosure, standard equipment and technical features below.
Delivery, training and commissioning is included. Offloading & positioning is available (price upon request).
Fibre laser light energy is created by banks of diodes. The light is transferred through special fibre optic cable, an efficient energy transfer compared to conventional methods. The light, upon exiting the fibre cable, is then collimated (straightened) as it approaches the focus lens – which intensifies the beam enabling it to cut through the material with astonishing speed and accuracy
Raytools cutting head with high-performance non-contact capacitive height sensor is used and is designed to withstand high ‘gas assist’ pressures. The proven lens cartridge change system makes switching lenses for different materials or applications fast & simple. A. High cutting speed with the best cutting quality B. Quick change-over between three focal lengths without changing the TCP (Tool Centre Point) C. Protective window (lens) can be replaced as a consumable part, to extend the life of the focusing lens.
A. Dual function intelligent cooling system, specifically designed for fibre laser machines, ensuring the efficient operation of laser cutting head and laser source B. ±0.3°C Precise temperature control. C. Multiple alarm functions: compressor time-delay protection, compressor over current protection, water flow alarm and high/low temperature alarm. D. Full CE approval, RoHS approval, REACH approval.
Precise positioning & repeat-ability with ‘Double Y Axis’ Taiwanese TBI Ball screw system.
Closed loop AC servo drive system and servomotors to ensure high dynamics, vibration- free operation and maximum precision
A. Power Automation CNC Control with integrated I/O
B. Each system is equipped with the HMI (Human Machine Interface). With this open, browser based all important control functions are clearly represented to the operator, so it will work within shortest training time efficiently and safely with the CNC system.
C. The CNC Systems are equipped with high-speed processors to accomplish an extremely fast ‘Block Throughput”. Highly accurate contours with very small NC blocks can be processed without any loss of speed. Therefore, the machine always reaches its highest productivity.
D. Cypcut laser cutting control system Support AI, DXF, PLT and other graphic data formats CAD module/nesting + processing function.
